Ubiquiti NanoStation ac NS-5AC Trådløs forbindelse Hvid
Den indendørs/udendørs NanoStation AC er kompakte, højtydende CPE'er med airMAX AC-teknologi og en dedikeret Wi-Fi-radio til administration.
-
Product no 993132902
Model NS-5AC
Brand
Go to brand's websiteEAN 0817882021371
Weight 0.76 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Ubiquiti NanoStation ac NS-5AC - trådløs forbindelse - AirMax ac |
| Enhedstype | Trådløs forbindelse |
| Formfaktor | Ekstern - udendørs, indendørs |
| Processor | 1 x Atheros MIPS 74KC 560 MHz |
| RAM | 64 MB |
| Dataforbindelsesprotokol | AirMax ac |
| Frekvensbånd | 5 GHz |
| Udstyr inkluderet | Pælmontering |
| Dimensioner (B x D x H) | 8.4 cm x 3 cm x 25.7 cm |
| Vægt | 233 g |
| General | |
|---|---|
| Depth | 3 cm |
| Device Type | Wireless access point |
| Height | 25.7 cm |
| Ruggedized Design | Outdoor, indoor |
| Weight | 233 g |
| Width | 8.4 cm |
| Processor / Memory / Storage | |
| Max Supported Qty | 1 |
| Processors Installed | 1 x Atheros MIPS 74KC 560 MHz |
| RAM | 64 MB DDR2 SDRAM |
| Networking | |
| Compliant Standards | IEEE 802.3af |
| Connectivity Technology | Wireless |
| Data Link Protocol | AirMax ac |
| Data Transfer Rate | 450 Mbps |
| Encryption Algorithm | WPA2 |
| Features | Power over Ethernet (PoE), MIMO technology, Auto Channel Select (ACS), pole mountable, Time Division Multiple Access (TDMA), Distance Control (ACK Timeout), spectrum analyzer, dual-linear polarization, Point-to-Point (PtP) link mode |
| Form Factor | External |
| Frequency Band | 5 GHz |
| Line Coding Format | 64 QAM, 256 QAM |
| Max Range Open Space | 15 km |
| Status Indicators | Power, signal strength, LAN |
| Antenna | |
| Antenna | Internal |
| Gain Level | 16 dBi |
| Expansion / Connectivity | |
| Interfaces | 2 x 1000Base-T (PoE) - RJ-45 |
| Miscellaneous | |
| Compliant Standards | IC, FCC, RoHS, ETSI 300 019-1-4 |
| Included Accessories | Pole mount |
| Power | |
| Power Consumption Operational | 8.5 Watt |
| Software / System Requirements | |
| OS Provided | AirOS 8 |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |

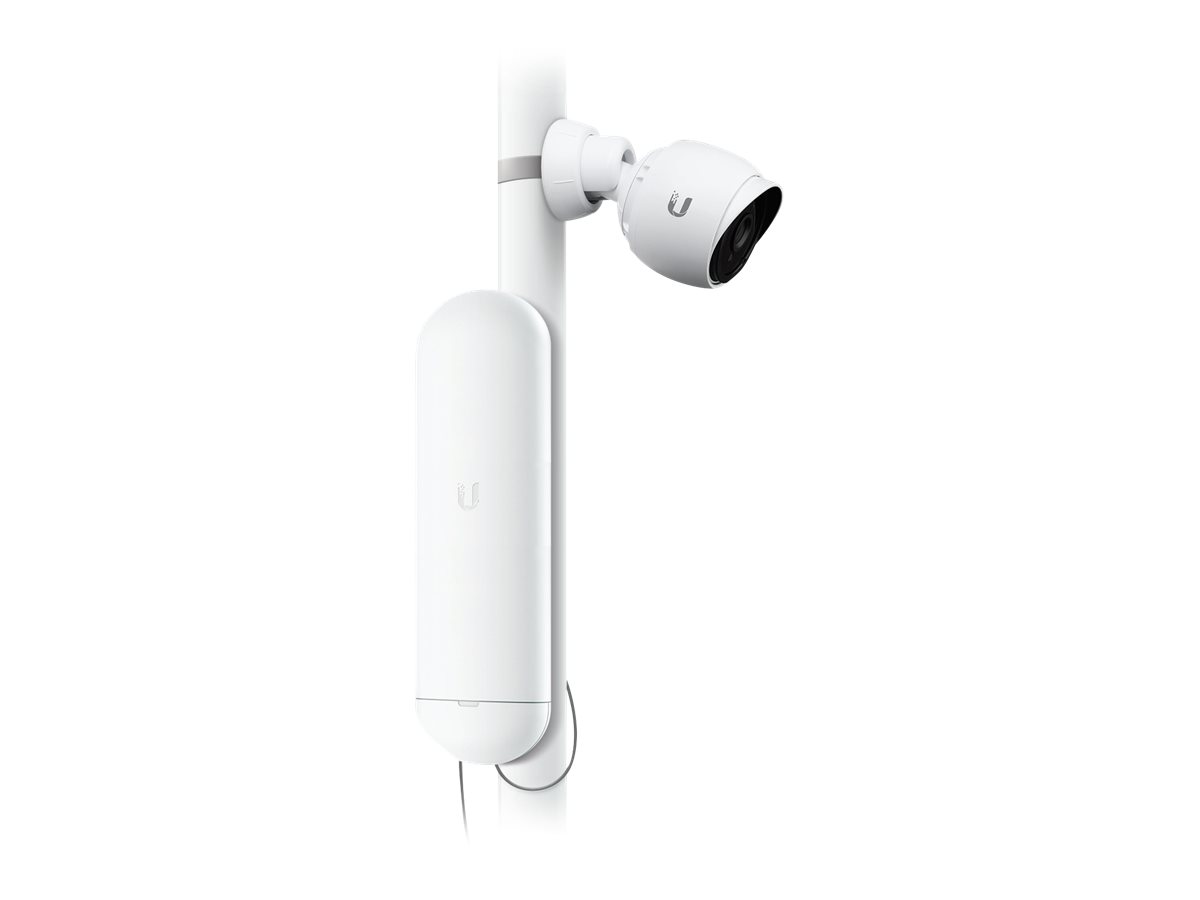

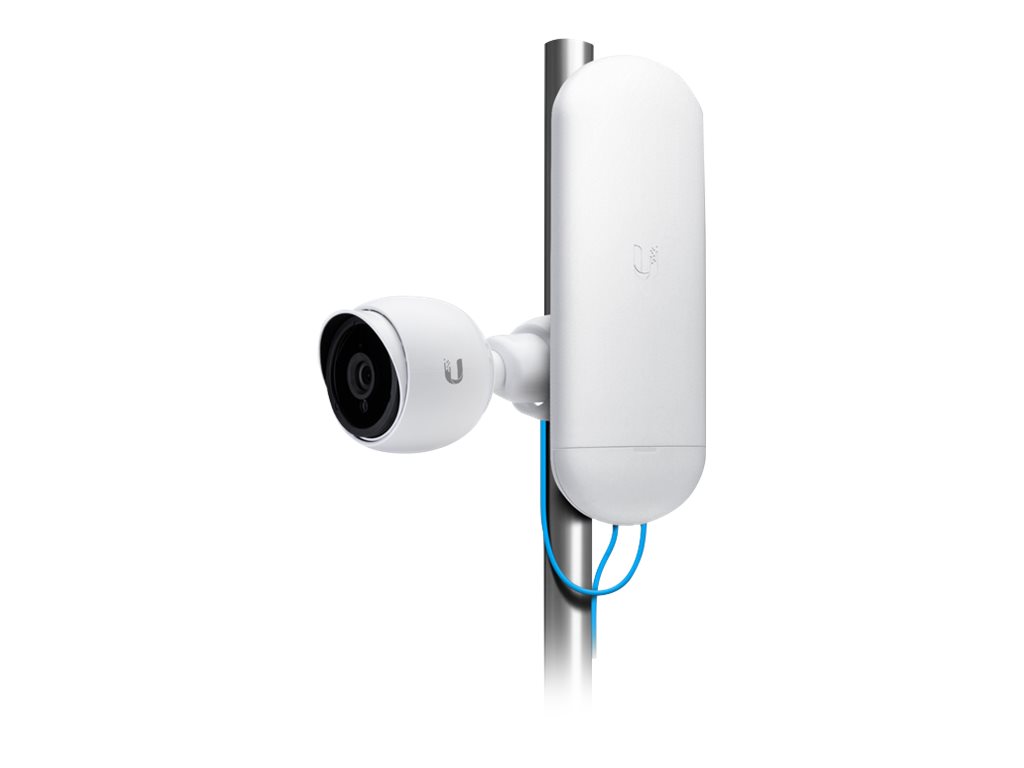

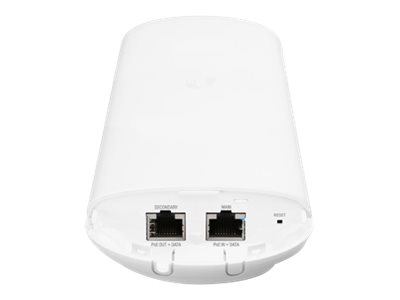

Dobbelt Ethernet-forbindelse
NanoStation AC har en sekundær Ethernet-port med softwareaktiveret PoE. Brug denne port til nemt at forsyne en ekstern enhed med strøm, f.eks. et PoE-sikkerhedskamera, for problemfri IP-videointegration.
Wi-Fi-radio til administration
Hver NanoStation AC-model integrerer en separat Wi-Fi-radio til hurtig og nem opsætning ved hjælp af din mobile enhed.
Forbedret beskyttelse mod overspænding
NanoStation AC har forbedret beskyttelse mod ESD-hændelser.
