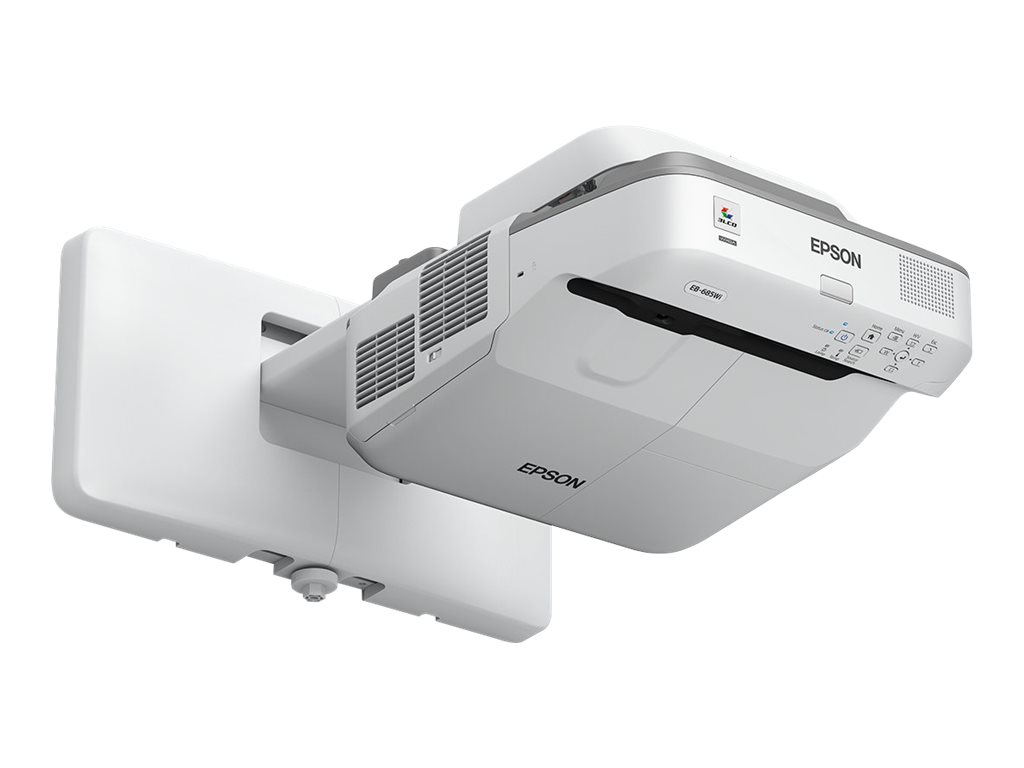

Epson EB-685W 3LCD-projektor WXGA VGA HDMI Composite video MHL

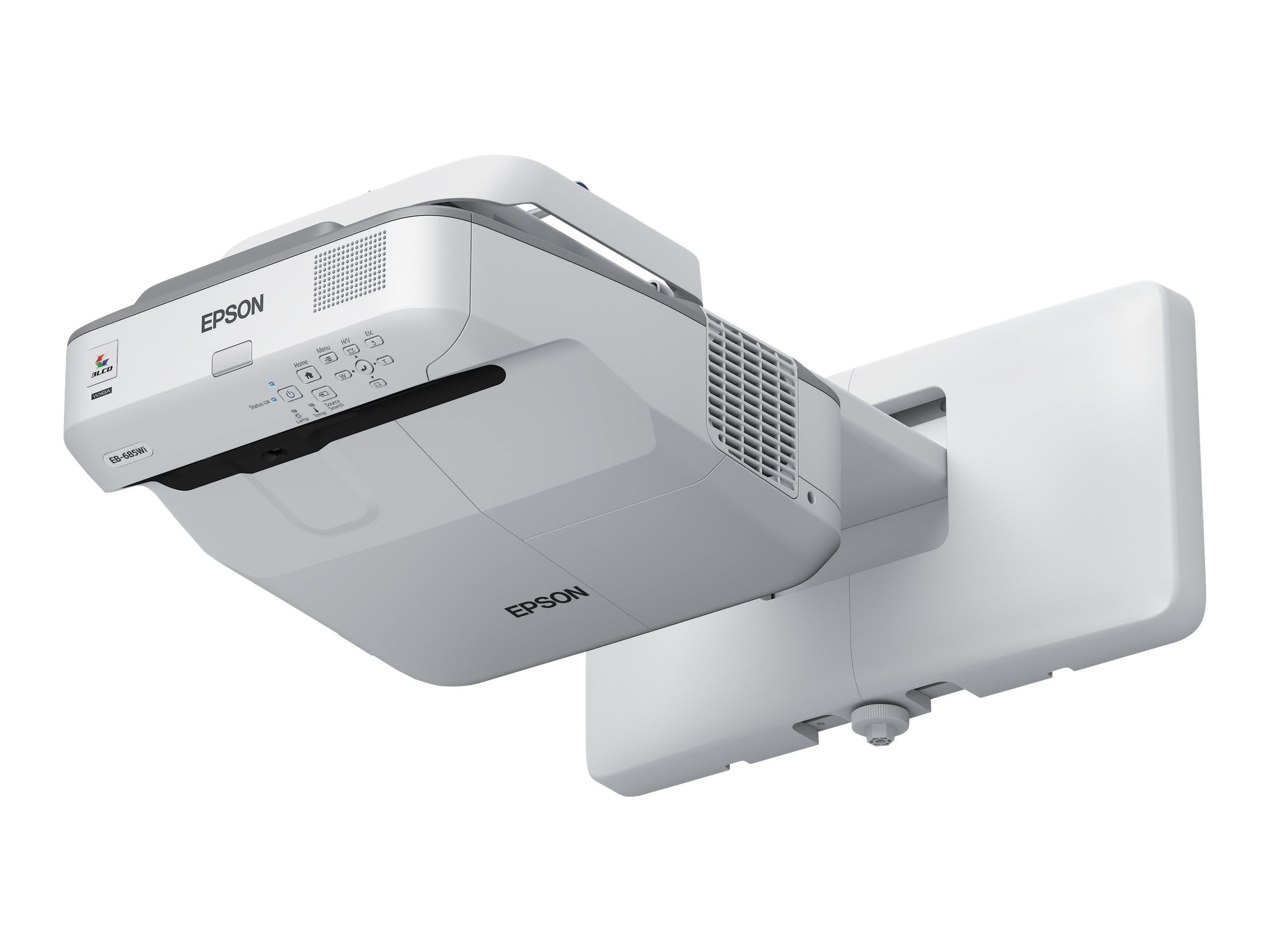

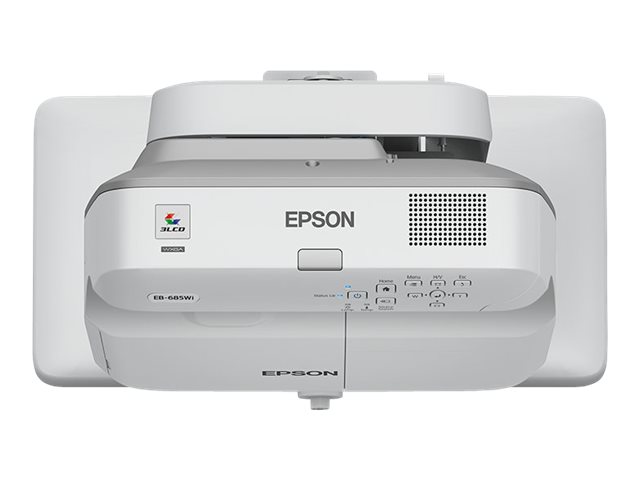

Epson EB-685W - 3LCD-projektor - 3500 lumen (hvid) - 3500 lumen (farve) - WXGA (1280 x 800) - 16:10 - 720p - LAN - grå, hvid
8 229,00DKK6 583,20DKK excl. VAT
EB-685W har et design med ultrakort projicering, der gør det muligt at vise store billeder fra meget kort afstand med færre skygger og genskin. En lysstyrke på 3.500 lumen, en HD-forberedt WXGA-opløsning, et kontrastforhold på 14.000:1 og en HDMI-indgang giver de studerende fordel af skarpe, tydelige billeder.
-
Product no 991919762
Model V11H744040
Brand Epson
EAN 8715946605210
Weight 19 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Epson EB-685W - 3LCD-projektor - LAN - grå, hvid |
| Enhedstype | 3LCD-projektor - 720p |
| Farve | Grå, hvid |
| Indbygget udstyr | Højttaler |
| Lysstyrke (hvid) | 3500 lumen |
| Lysstyrke (farve) | 3500 lumen |
| Kontrastforhold | 300:1 / 14000:1 (dynamisk) |
| Opløsning | WXGA (1280 x 800) |
| Native Aspect Ratio | 16:10 |
| Farvesupport | 1,07 milliarder farver |
| Lampetype | 250 Watt |
| Videoindgang | RGB, sammensat video LAN |
| Højttalere | Højtaler(e) - integreret |
| Miljømæssige standarder | TCO Certified Projectors 8 |
| Effekt | AC 230V (50 - 60 Hz) |
| Strømforbrug ved drift | 354 Watt |
| Dimensioner (B x D x H) | 36.7 cm x 40 cm x 14.9 cm |
| Vægt | 5.7 kg |
| Producentgaranti | 5 års garanti |
| General | |
|---|---|
| Built-in Devices | Speaker |
| Device Type | 3LCD projector - 720p |
| Enclosure Color | Gray, white |
| Networking | Ethernet |
| Projector | |
| Brightness (Color) | 3500 lumens |
| Brightness (Reduced) | 2900 lumens |
| Brightness (White) | 3500 lumens |
| Color Support | 1.07 billion colors |
| Contrast Ratio | 300:1 / 14000:1 (dynamic) |
| Digital Zoom Factor | 1.35x |
| Features | sRGB color profile, Blackboard Mode, EPSON 3LCD technology, Whiteboard Mode, Automatic Brightness Adjustment, Dynamic Lamp Control, Dynamic Mode, Theater Mode |
| Image Size | 152 cm - 254 cm |
| Lamp Type | 250 Watt |
| Native Aspect Ratio | 16:10 |
| Projection Distance | 0.4 m - 0.6 m |
| Resolution | WXGA - WXGA (1280 x 800) |
| Throw Ratio | 0.28:1 |
| Lens | |
| Focus Type | Manual |
| Horizontal Keystone Correction | -3 / +3 |
| Keystone Correction Direction | Horizontal, vertical |
| Lens Aperture | F/1.6 |
| Vertical Keystone Correction | -3 / +3 |
| Video Input | |
| Analog Video Signal | RGB, composite video |
| LAN and Wireless Image Transferring Protocols | Wired LAN |
| Video Interfaces | VGA, HDMI, composite video, MHL |
| Speakers | |
| Output Power / Channel | 16 Watt |
| Sound Output Mode | Mono |
| Speakers | 1 x mixed channel |
| Type | Integrated |
| Expansion / Connectivity | |
| Interfaces | 1 x component video / RGB input - 15 pin HD D-Sub (HD-15) | 1 x composite video input - RCA | 1 x Mobile High-Definition Link (MHL) / HDMI | 2 x HDMI input - 19 pin HDMI Type A | 1 x USB 2.0 - 4 pin USB Type A | 1 x USB 2.0 - 4 pin USB Type B | 3 x a |
| Miscellaneous | |
| Cables Included | 1 x USB cable |

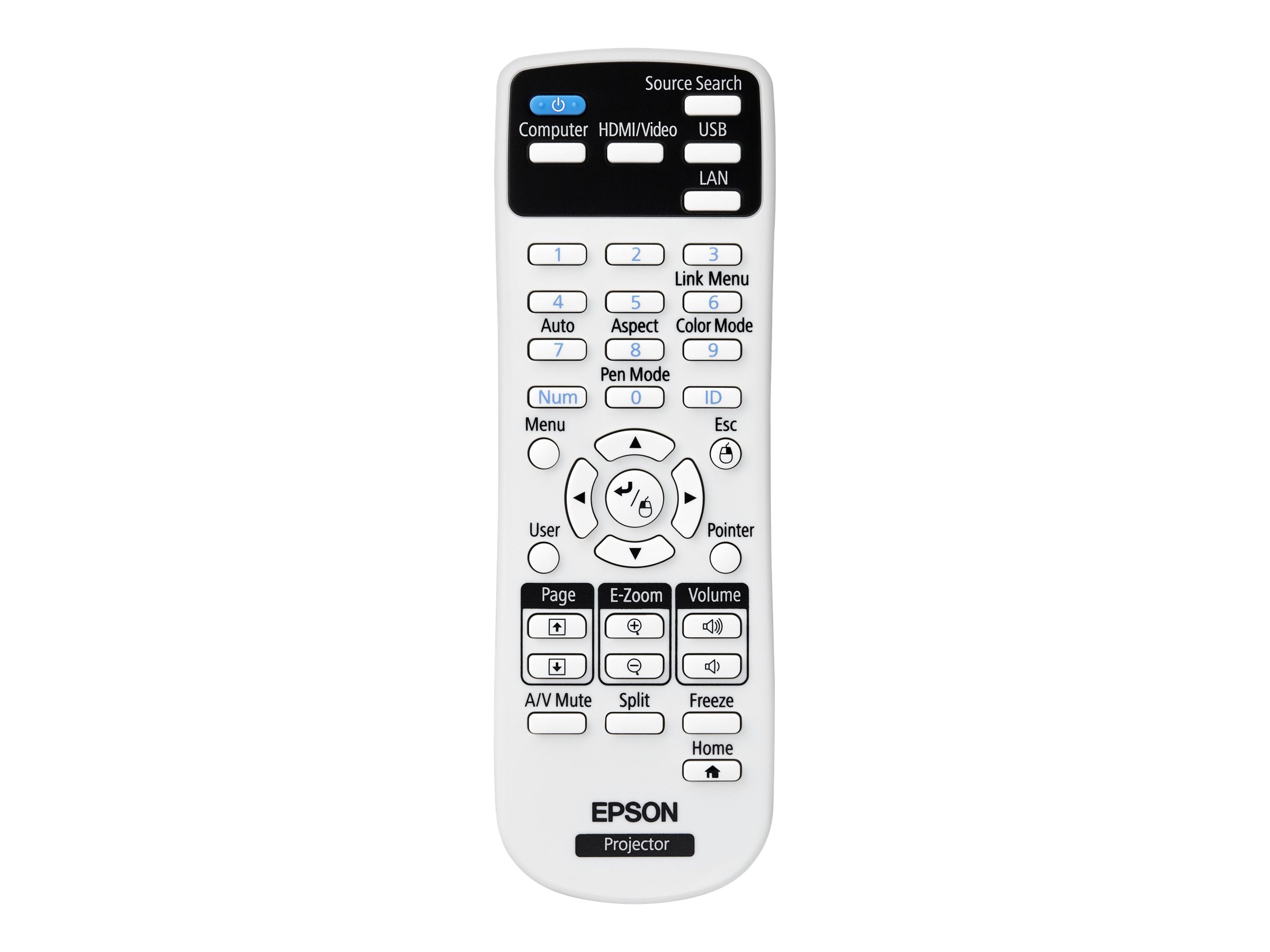

| Included Accessories | Wireless remote control |
| Mounting Kit | Included |
| Security Features | Security lock slot (cable lock sold separately), password protection |
| Environmental Standards | |
| TCO Certified | TCO Certified Projectors 8 |
| Power | |
| Power Consumption Operational | 354 Watt |
| Power Consumption Stand by | 0.39 Watt |
| Power Source | AC |
| Voltage Required | AC 230 V (50 - 60 Hz) |
| Software / System Requirements | |
| Software Included | EasyMP Network Projection, EasyMP Monitor, EasyMP Multi PC Projection |
| Dimensions & Weight | |
| Depth | 40 cm |
| Height | 14.9 cm |
| Weight | 5.7 kg |
| Width | 36.7 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years - carry-in |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 5 °C |
| Sound Emission | 35 dBA |
| Sound Emission (Economic Mode) | 30 dBA |
Klare billeder i høj kvalitet
Epsons 3LCD-teknologi sikrer billeder i høj kvalitet med lige højt output for hvidt og farvet lys, så der opnås levende farver og lysere billeder selv i dagslys, og tre gange lysere farver end i førende, konkurrerende projektorer.
Hold omkostninger nede
Projicer længere med forbedret pålidelighed og længere lampelevetid på op til 10.000 timer i strømsparetilstand.
Forbedret læring
Splitskærmfunktionen gør det muligt at vise to typer indhold samtidig uden at påvirke kvaliteten. Moderatorfunktionen giver underviseren mulighed for at bevare kontrollen ved at vælge, hvilket indhold der skal vises.
Trådløs funktion (ekstraudstyr)
Vis nemt indhold trådløst fra en række smarte enheder og Google Chromebooks via vores iProjection-app.
Dokumentkamerakompatibilitet
Du kan nemt tilslutte Epsons dokumentkamera (ekstraudstyr) og få vist billeder og 3D-objekter med utrolige detaljer, som hele klassen kan se.
EB-685W
Innovative teaching solution with a large scalable screen size of up to 100 inches to display HD-ready WXGA content for enhanced learning.
The EB-685W's ultra-short-throw design allows you to present large images from a very short distance with minimised shadows and glare. With a brightness level of 3,500 lumens, an HD-ready WXGA resolution, a 14,000:1 contrast ratio, and HDMI input, students benefit from sharp, clear images.
The EB-685W's ultra-short-throw design allows you to present large images from a very short distance with minimised shadows and glare. With a brightness level of 3,500 lumens, an HD-ready WXGA resolution, a 14,000:1 contrast ratio, and HDMI input, students benefit from sharp, clear images.
High-quality, bright images
Epson’s 3LCD technology ensures high-quality images with equally high White and Colour Light Output for vivid colours and bright images, even in daylight, and three times brighter colours than leading competitive projectors1.Keep costs down
Project for longer with improved reliability and a longer lamp life of up to 10,000 hours in eco mode.Enhanced learning
Split-screen functionality allows two pieces of content to be displayed simultaneously without compromising on quality. The moderator function allows teachers to remain in control, choosing what content to display.Optional wireless capability
Wirelessly display content easily from a range of smart devices and Google Chromebooks using our iProjection App2.Document camera compatibility
Connecting the optional Epson document camera allows you to easily display images and 3D objects with incredible detail for the whole class to see.SellingPoints
Up to 100-inch display and outstanding quality
HD-ready WXGA resolution with Epson 3LCD technologyReliable
Improved reliability and a longer lamp lifeWireless Connectivity (Optional)
Allows content to be shown from a range of devicesLong lamp life
Up to 10,000 hours in eco modeUltra short throw projection
For maximum installation flexibilitySpecifications
| Technology | |
|---|---|
| Projection System | 3LCD Technology |
| LCD Panel | 0,59 inch with D9 |
| Image | |
| Colour Light Output | 3.500 lumen- 2.900 lumen (economy) in accordance with IDMS15.4 |
| White Light Output | 3.500 lumen - 2.900 lumen (economy) in accordance with ISO 21118:2012 |
| Resolution | WXGA, 1280 x 800, 16:10 |
| High Definition | HD ready |
| Aspect Ratio | 16:10 |
| Contrast Ratio | 14.000 : 1 |
| Light source | Lamp |

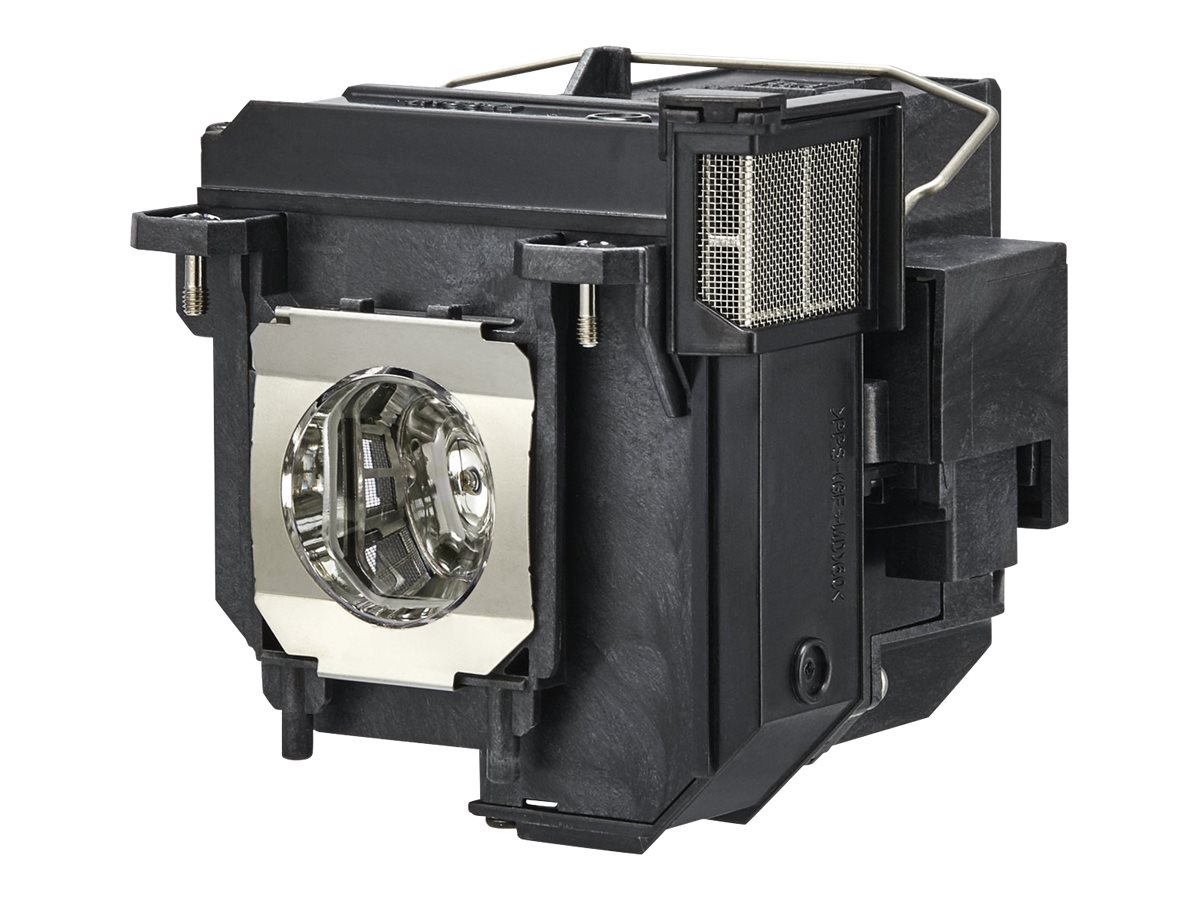

| Lamp | 250 W, 5.000 h durability, 10.000 h durability (economy mode), 9.000 h durability (economy mode) |
| Keystone Correction | Manual vertical: ± 3 °, Manual horizontal ± 3 ° |
| Colour Processing | 10 Bits |
| 2D Vertical Refresh Rate | 100 Hz - 120 Hz |
| Colour Reproduction | upto 1.07 billion colours |
| Optical | |
| Projection Ratio | 0,28 - 0,37:1 |
| Zoom | Digital, Factor: 1 - 1,35 |
| Lens | Optical |
| Image Size | 60 inches - 100 inches |
| Projection Distance Wide | 0,4 m ( 60 inch screen) |
| Projection Distance Tele | 0,6 m ( 100 inch screen) |
| Projection Lens F Number | 1,6 |
| Focal Distance | 3,7 mm |
| Focus | Manual |
| Offset | 5,8 : 1 |
| Connectivity | |
| USB Display Function | 3 in 1: Image / Mouse / Sound |

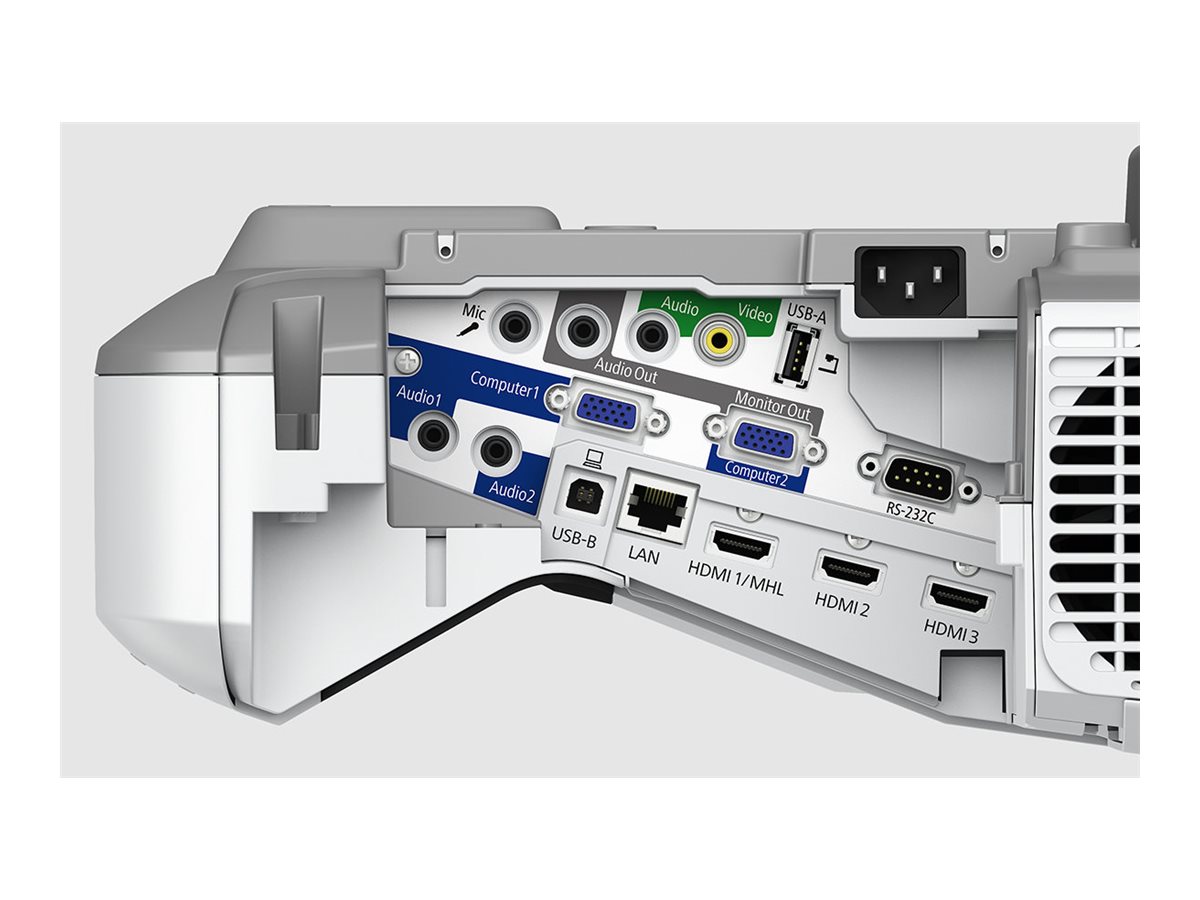

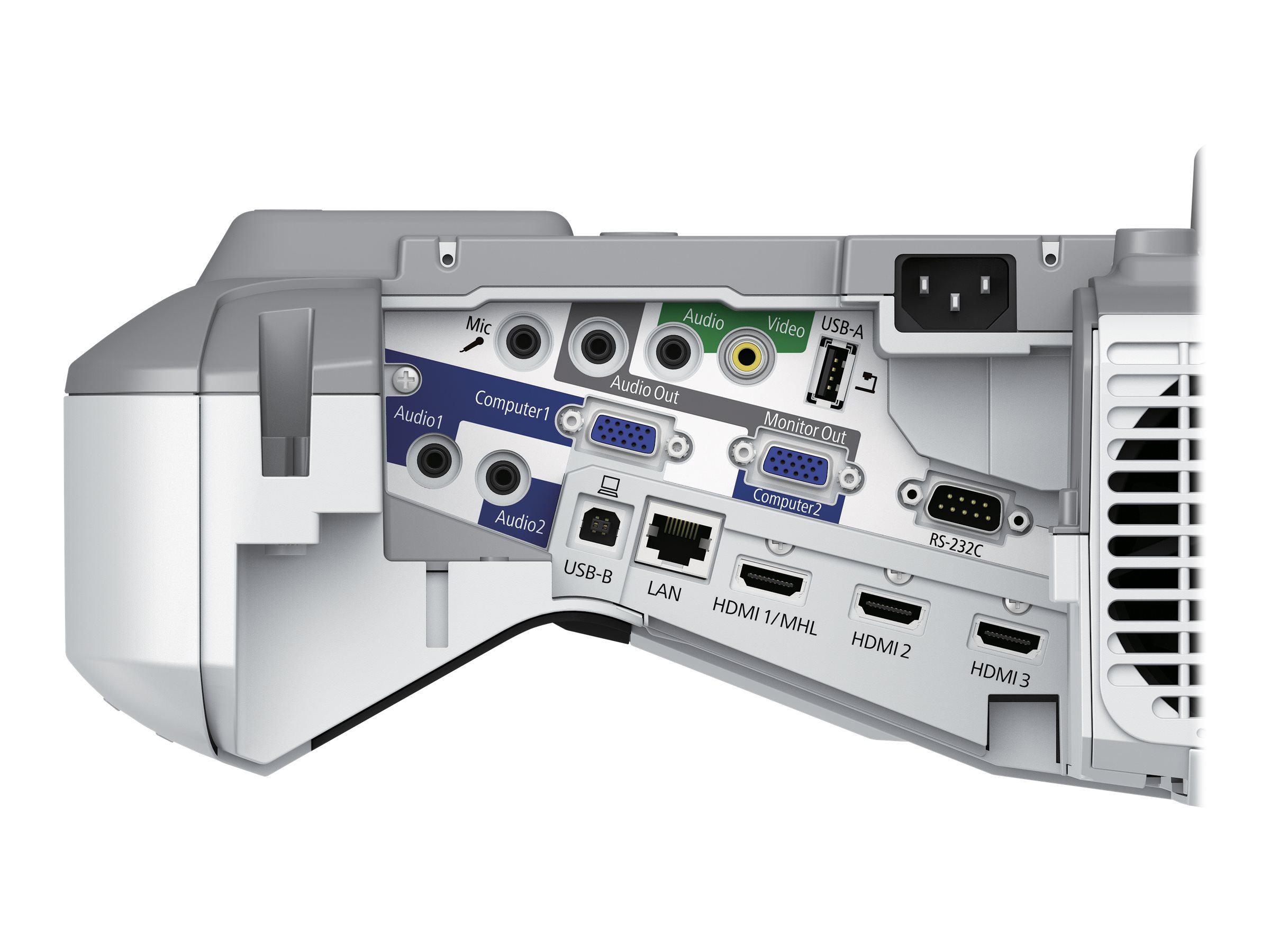

| Interfaces | USB 2.0 Type A, USB 2.0 Type B, RS-232C, HDMI in (3x), Composite in, RGB in (2x), RGB out, Stereo mini jack audio out, Stereo mini jack audio in (3x), Microphone input, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11b/g/n (WiFi 4) (optional), VGA in (2x), VGA out, MHL |
| Epson iProjection App | Ad-Hoc / Infrastructure |
| Advanced Features | |
| Security | Kensington lock, Password lock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection |
| 2D Colour Modes | Dynamic, Cinema, Presentation, sRGB, Blackboard |
| Features | Auto brightness adjustment, Automatic input selection, Built-in speaker, CEC compatible, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Dynamic lamp control, Easy OSD pre-setting, Home Screen, Long lamp life, Split-Screen-Function, Wireless LAN capable |
| Interactivity | No |
| Video Colour Modes | Blackboard, Dynamic, Presentation, Sports, sRGB, Theatre, Whiteboard |
| Projector control | via: AMX, Crestron (Network), Control4 |
| General | |
| Energy Use | 354 W, 309 W (economy), 0,37 W (standby) |
| Supply Voltage | AC 100 V - 240 V, 50 Hz - 60 Hz |
| Product dimensions | 367 x 400 x 149 mm (Width x Depth x Height) |
| Product weight | 5,7 kg |
| Noise Level | Normal: 35 dB (A) - Economy: 30 dB (A) - Eco2: 29 dB (A) |
| Temperature | Operation 5° C - 40° C, Storage -10° C - 60° C |
| Humidity | Operation 20% - 80%, Storage 10% - 90% If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling. If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance |
| Included Software | Epson Projector Management Software, EasyMP Multi PC Projection |
| Options | Air filter, Connection and control box, Document camera, External Speaker, USB extension cable, Wireless LAN unit |
| Compatible Operating Systems | Linux, Mac OS 10.10.x, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Ubuntu 14.10, Ubuntu 15.04, Ubuntu 15.10, Ubuntu 16.04 LTS, Windows 10, Windows 8, Windows 8.1 |
| Loudspeaker | 16 W |
| What's in the box | CD Manual, Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, Wall mounting bracket, Warranty card |
| Room Type / Application | Collaboration space / Classroom |
| Positioning | Wall Mounted |
| Colour | White / Grey |
| TCO Certified | Yes |
| Other | |
| Warranty | 60 months Carry in or 8.000 h, Lamp: 60 months or 1.000 h |
What's in the Box
- Power cable
- Remote control incl. batteries
- CD Manual
- Quick Start Guide

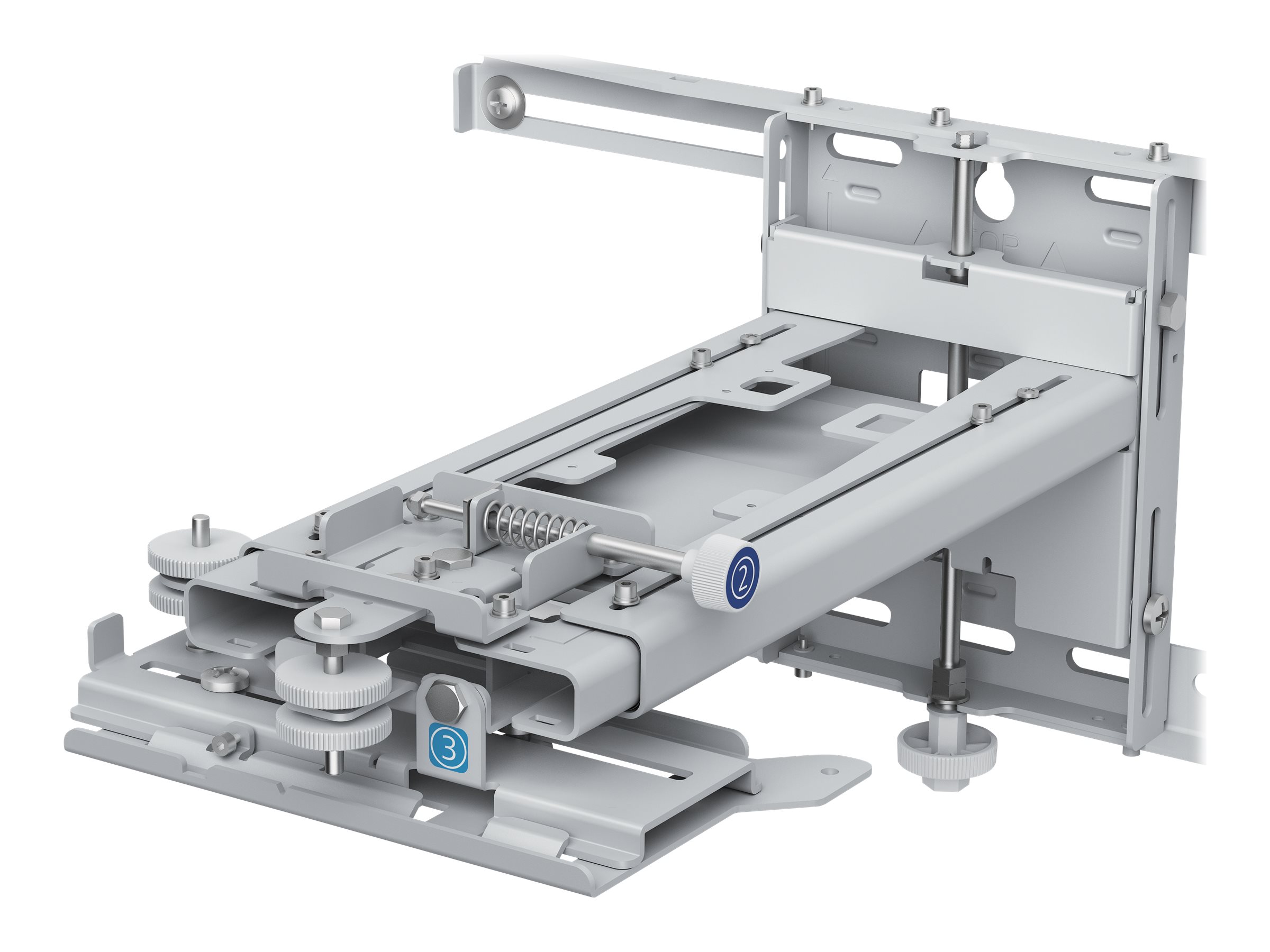

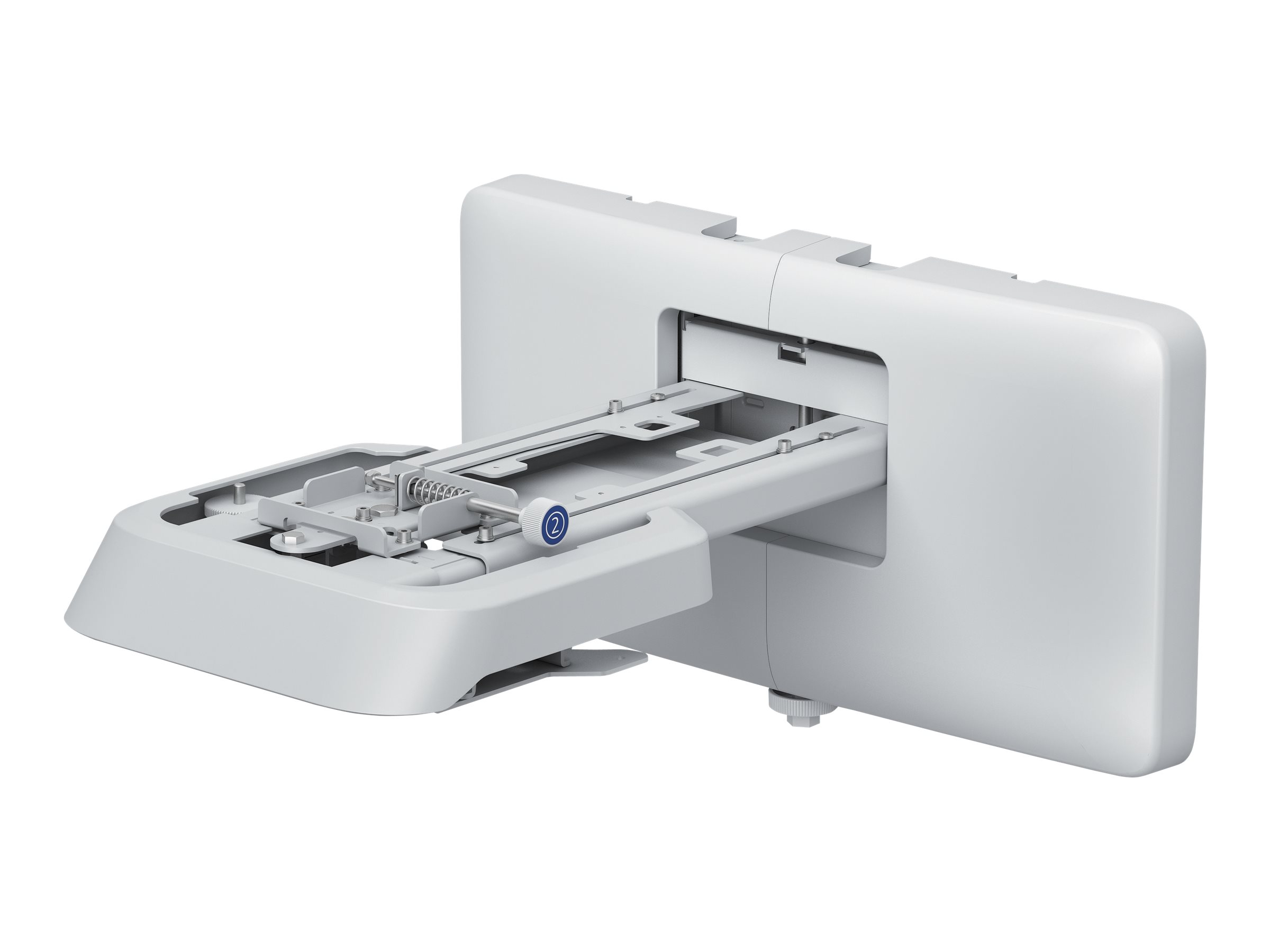

- Wall mounting bracket
- Warranty card
- Main unit
