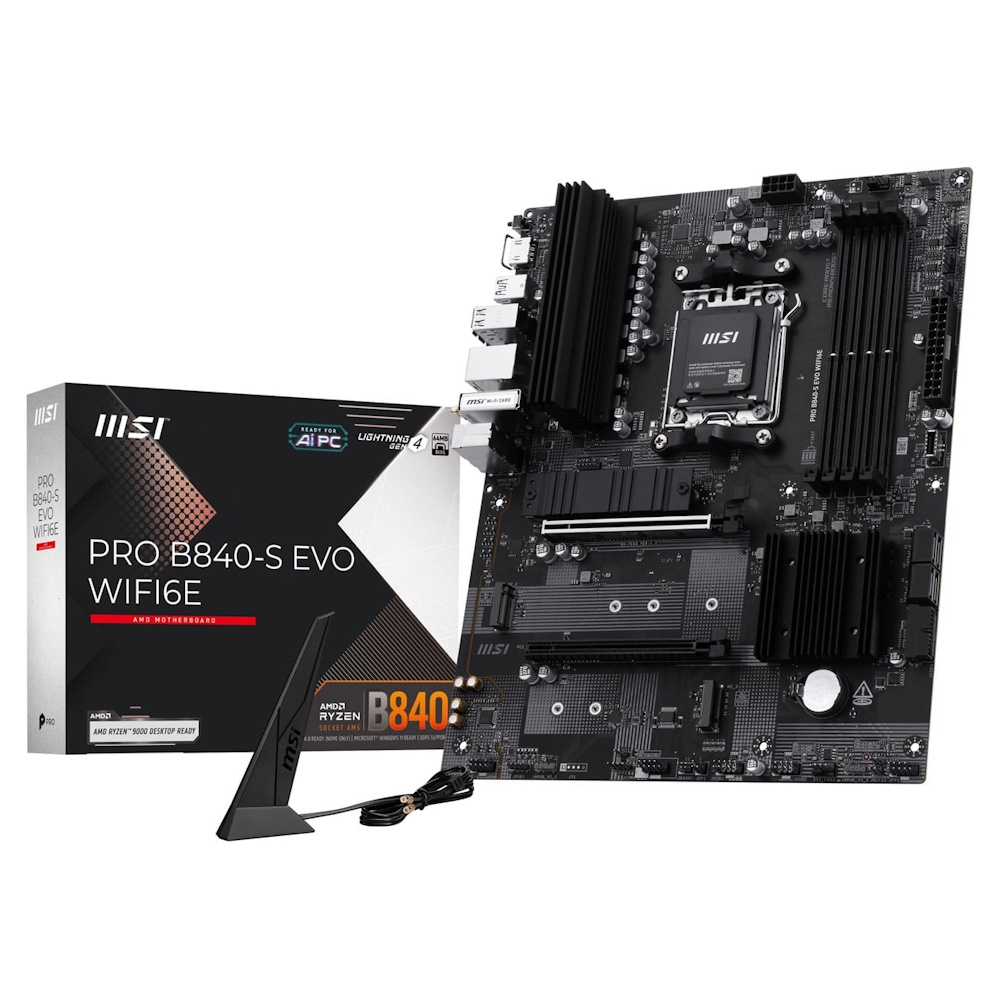

MSI Pro B840-S Evo WiFi6E ATX AM5
MSI Pro B840-S Evo WiFi6E - ATX - Socket AM5 - 4x DDR5 slots - HDMI - USB 10Gbps - Realtek 8125D - WiFi 6E
1 169,00 DKK
935,20 DKK ekskl. moms
-
Varenummer 1003781949
Model 7E93-001R
Producent
Gå til producentens hjemmesideEAN 4711377404167
Vægt 1.47 kg
-
Informationer/specifikationer på siden er vejledende og kan uden varsel være ændret af producenten. Der tages forbehold for trykfejl og vejledende billeder.
| CPU support | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
| Socket | AM5 |
| Chipset | AMD B840 |
| Memory | 4x DDR5 UDIMM - Max 256GB |
| Memory Support | DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Non-ECC, Un-buffered memory |
| Onboard Graphics Connectors | 1x HDMI |
| Slots | 2x PCI-E x16 slot (1x 4.0 x16, 1x 3.0 x4) |
| Audio | Realtek® ALC897 |
| Storage | 3x M.2 (2x 4.0 x4, 1x 3.0 x4), 4x SATA 6G |
| USB | 4x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 5Gbps Type A (Rear), 2x USB 5Gbps Type A (Front), 1x USB 5Gbps Type C (Front), 1x USB 10Gbps Type A (Rear), 1x USB 10Gbps Type C (Rear) |
| LAN | Realtek® 8125D 2.5G LAN |
| Wireless | Wi-Fi 6E, Bluetooth 5.3 |

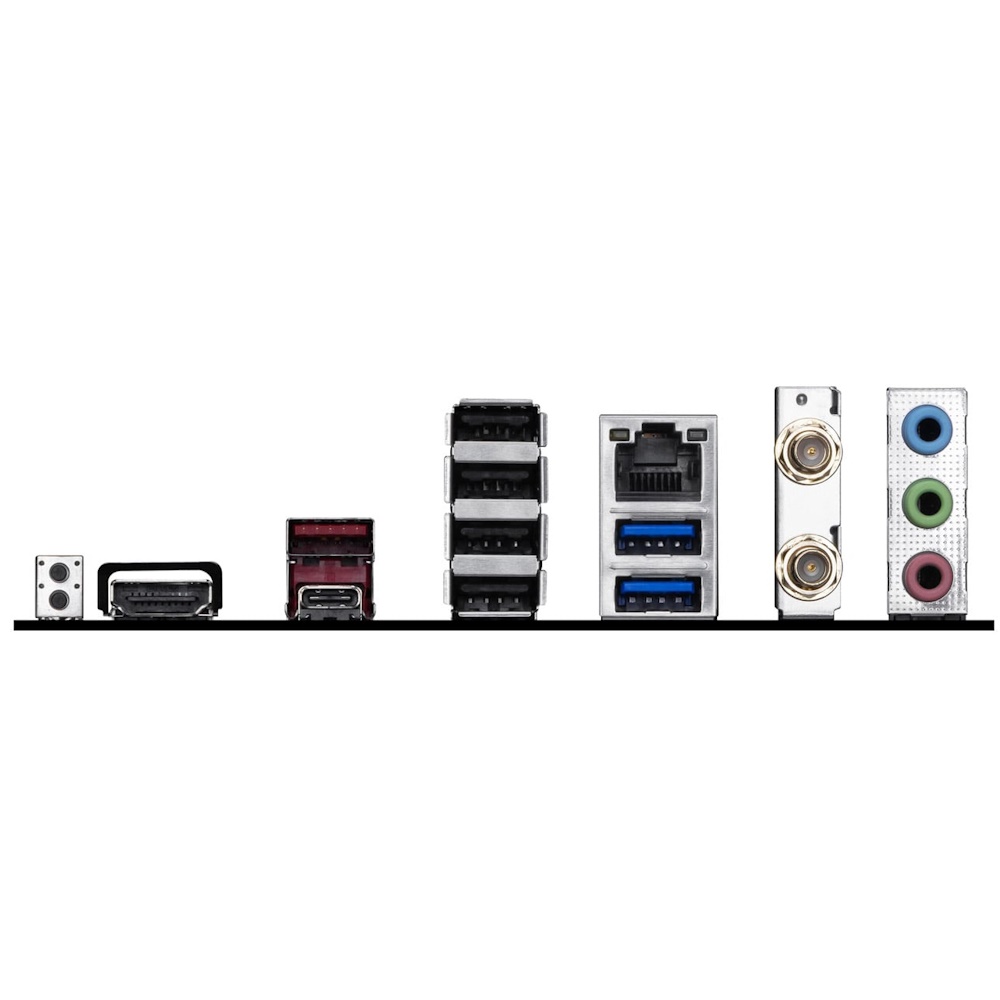

| Back I/O | 1x USB 10Gbps Type-A, 4x USB 2.0, 1x 2.5G LAN, 2x Antenna, 3x Audio sockets, 1x HDMI, 1x USB 10Gbps Type-C, 2x USB 5Gbps Type-A |
| PCB Info | ATX - 243.84 x 304.8 mm |
| Included | EZ M.2 Clip II Remover, 2x EZ M.2 Clip II, EZ Wi-Fi Antenna, Sata Cable, European Regulatory Notice, Quick Installation Guide |
| Generelt | |
|---|---|
| Chipsættype | AMD B840 / Nuvoton NCT6687D-R |
| Kompatible processorer | (understøtter Ryzen 7000/8000/9000 Serien) |
| Max antal processorer | 1 |
| Processor-socket | Socket AM5 |
| Produkttype | Bundkort - ATX |
| Understøttet RAM | |
| Bus Clock | 8000 MT/s (O.C.), 5600 MT/s (O.C.), 5600 MT/s, 4800 MT/s, 6400 MT/s (O.C.) |
| Egenskaber | AMD EXPO-teknologi, dobbelt kanal hukommelses arkitektur |
| Maks. størrelse | 256 GB |
| Registreret eller buffer | Ikke bufferet, clocked unbuffered |
| Teknologi | DDR5 |
| Understøttet RAM-integritetskon | Ikke-ECC |
| Audio | |
| Audio codec | Realtek ALC897 |
| Overensstemmelsesstandarder | High Definition Audio |
| Type | HD Audio (8-kanaler) |
| LAN | |
| Netværk controller | Realtek RTL8125D |
| Netværks interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3 |
| Ekspansion / Konnektivitet | |
| Ekspansionsåbninger | 1 x CPU | 4 x DIMM 288-pins | 1 x PCIe 4.0 x16 | PCIe 3.0 x4 | 2 x M.2 socket (2260/2280 M.2 Key M-åbning) | 1 x M.2 socket (2260/2280/22110 M.2 Key M åbning) | 1 x M.2 socket (Key E) |
| Grænseflade (lagring) | SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 | PCIe 4.0 -stikforbindelser: 2 x M.2 - RAID 0 / RAID 1 | PCIe 3.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 |
| Interface | 1 x HDMI | 1 x USB-C 3.2 Gen 2 | 2 x USB 3.2 Gen 1 | 1 x USB 3.2 Gen 2 | 4 x USB 2.0 | 1 x LAN (2.5Gigabit Ethernet) | 1 x audio linje-ind - mini-jack | 1 x mikrofon - mini-jack | 1 x audio linje-ud - mini-jack | 2 x antenne |
| Interne interfaces | 4 x USB 2.0 - intern stik | 4 x USB 3.2 Gen 1 - intern stik | 1 x USB-C 3.2 Gen 1 - intern stik | 1 x audio - intern stik | 1 x seriel - intern stik | 1 x SPI - intern stik |
| Strømkontakter | 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt |
| Egenskaber | |
| BIOS-egenskaber | MSI ClickBIOS, UEFI BIOS, ACPI 6,5 support, SMBIOS 3,7 support |
| BIOS-type (Basic Input/Output System) | AMI |
| Hardware egenskaber | 2oz Copper PCB, BIOS FlashBack-knap, Clear CMOS Button, Cooling Wizard, EZ Debug LED, EZ LED control, EZ Memory Detection, Frozr AI Cooling, lightning gen4-løsning, MSI AI Engine, MSI AI LAN Manager, MSI Audio Boost, MSI Companion, MSI Core Boost, MSI EZ DIY, MSI Memory Boost, MSI Mystic Light, MSI Steel Armor II, 6 Layer PCB, 7+2+1 fase strømdesign, M.2 Shield FROZR, MSI EZ OC, MSI Stainless Steel Back I/O, overstrømsbeskyttelse, transiente spændingsdæmpere, Enlarged Chipset Heatsink |
| Diverse | |
| Bredde | 30.5 cm |
| Dybde | 24.4 cm |
| Med software | Drivers & Utilities, MSI Center, Adobe Creative Cloud (gratis prøve), AIDA64 Extreme - MSI Edition, MSI CPU-Z, Norton 360, Dropbox |
| Medfølgende ledninger | 1 x Seriel ATA kabel |
| Overensstemmelsesstandarder | JEDEC |
| Udstyr inkluderet | EZ Wi-Fi antenne, 3 x EZ M.2 clip II, EZ M.2 klips II fjerner, IO-skjold |
