MSI Pro B840-S Evo WiFi6E ATX AM5
MSI Pro B840-S Evo WiFi6E - ATX - Socket AM5 - 4x DDR5 slots - HDMI - USB 10Gbps - Realtek 8125D - WiFi 6E
1 189,00 DKK
951,20 DKK excl. VAT
-
Product no 1003781949
Model 7E93-001R
Brand
Go to brand's websiteEAN 4711377404167
Weight 1.47 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| CPU support | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
| Socket | AM5 |
| Chipset | AMD B840 |
| Memory | 4x DDR5 UDIMM - Max 256GB |
| Memory Support | DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Non-ECC, Un-buffered memory |
| Onboard Graphics Connectors | 1x HDMI |
| Slots | 2x PCI-E x16 slot (1x 4.0 x16, 1x 3.0 x4) |
| Audio | Realtek® ALC897 |
| Storage | 3x M.2 (2x 4.0 x4, 1x 3.0 x4), 4x SATA 6G |
| USB | 4x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 5Gbps Type A (Rear), 2x USB 5Gbps Type A (Front), 1x USB 5Gbps Type C (Front), 1x USB 10Gbps Type A (Rear), 1x USB 10Gbps Type C (Rear) |
| LAN | Realtek® 8125D 2.5G LAN |
| Wireless | Wi-Fi 6E, Bluetooth 5.3 |

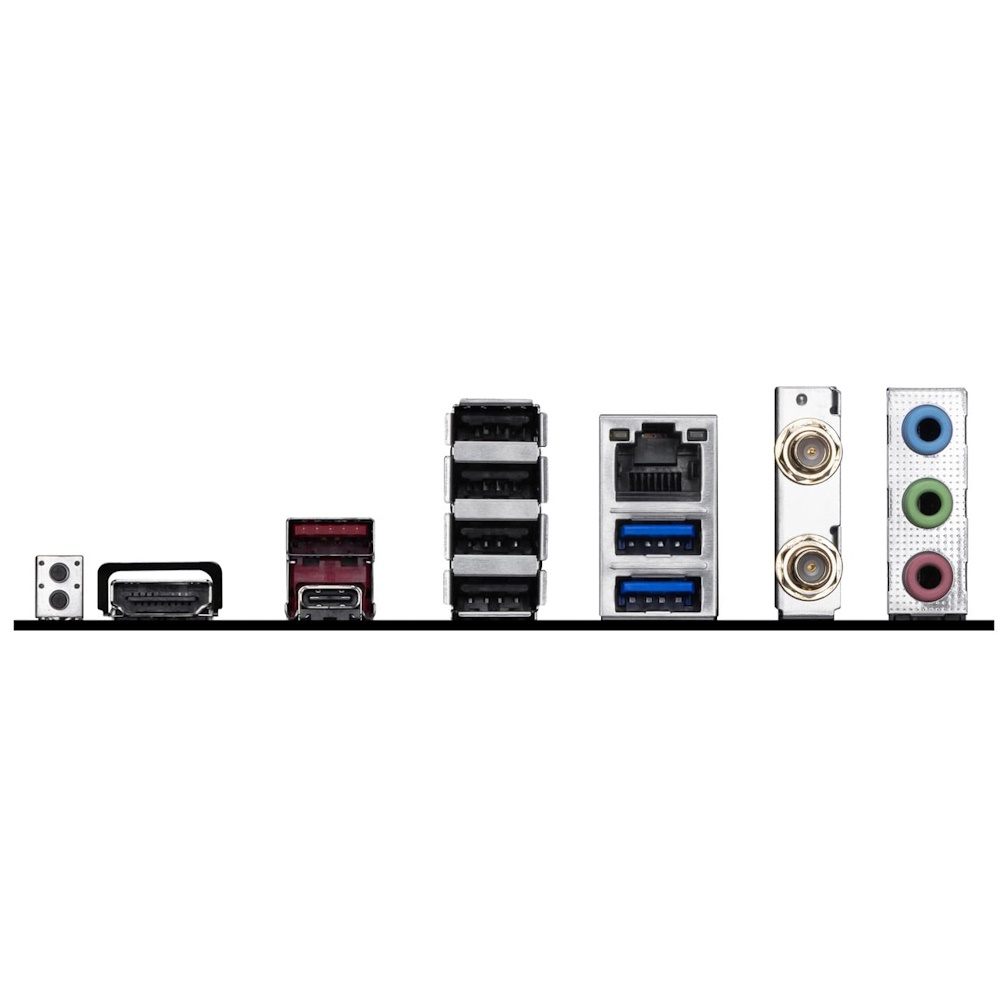

| Back I/O | 1x USB 10Gbps Type-A, 4x USB 2.0, 1x 2.5G LAN, 2x Antenna, 3x Audio sockets, 1x HDMI, 1x USB 10Gbps Type-C, 2x USB 5Gbps Type-A |
| PCB Info | ATX - 243.84 x 304.8 mm |
| Included | EZ M.2 Clip II Remover, 2x EZ M.2 Clip II, EZ Wi-Fi Antenna, Sata Cable, European Regulatory Notice, Quick Installation Guide |
