CPU
|
LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
|
|
Chipset
|
Intel B760 Express Chipset
|
|
Memory
|
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
|
|
Onboard Graphics
|
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz, 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz, 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
|
|
Audio
|
Realtek Audio CODEC
|
|
LAN
|
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
|
|
Expansion Slots
|
CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16, Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
|
|
Storage Interface
|
CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU), Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors
|
|
USB
|
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support, 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header), 2 x USB 2.0/1.1 ports on the back panel
|
|
I/O Controller
|
iTE I/O Controller Chip
|
|
BIOS
|
1 x 128 Mbit flash
|
|
Operating System
|
Support for Windows 11 64-bit Support for Windows 10 64-bit
|
|
Form Factor
|
Micro ATX Form Factor; 24.4cm x 24.4cm
|
Vores vareudlevering på Høgemosevænget 1, 8380 Trige har åbent for afhentning mandag-fredag kl. 9-18.

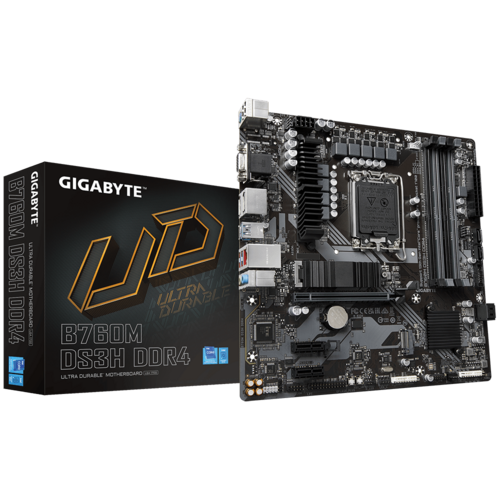

Gigabyte B760M DS3H DDR4 Micro-ATX LGA1700 Intel B760
Gigabyte B760M DS3H DDR4 - 1.0 - bundkort - micro ATX - LGA1700 sokkel - B760 Chipset - USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen2 - 2.5 Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
DKK 719,00
DKK 575,20 ekskl. moms
DKK 719,00
DKK 575,20 ekskl. moms
Fragt fra DKK 39,00 (PostNord Pakkeshop u/1.000,- DKK)
Varenummer:
1000909578
Model:
B760M DS3H DDR4
EAN:
4719331850876
Producent:
Vægt:
0.92 kg
Informationer/specifikationer på siden er vejledende og kan uden varsel være ændret af producenten. Der tages forbehold for trykfejl og vejledende billeder.
Specifikationer
Udv. specifikationer
|
Generelt
|
|
|---|---|
|
Chipsættype
|
Intel B760
|
|
Kompatible processorer
|
(understøtter 12./13. og 14. Generation Intel Core / Pentium Gold / Celeron)
|
|
Max antal processorer
|
1
|
|
Processor-socket
|
LGA1700 sokkel
|
|
Produkttype
|
Bundkort - micro ATX
|
|
Understøttet RAM
|
|
|
Bus Clock
|
2400 MT/s, 2133 MT/s, 2666 MT/s, 2933 MT/s, 3000 MT/s, 3200 MT/s, 3300 MT/s (O.C.), 3333 MT/s (O.C.), 3400 MT/s (O.C.), 3466 MT/s (O.C.), 3600 MT/s (O.C.), 3666 MT/s (O.C.), 3733 MT/s (O.C.), 3800 MT/s (O.C.), 3866 MT/s (O.C.), 4000 MT/s (O.C.), 4133 MT/s (O.C.), 4266 MT/s (O.C.), 4300 MT/s (O.C.), 4400 MT/s (O.C.), 4500 MT/s (O.C.), 4600 MT/s (O.C.), 4700 MT/s (O.C.), 4800 MT/s (O.C.), 4933 MT/s (O.C.), 5000 MT/s (O.C.), 5133 MT/s (O.C.), 5333 MT/s (O.C.)
|
|
Egenskaber
|
Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP), understøttede ECC-moduler fungerer i ikke-ECC-tilstand
|
|
Maks. størrelse
|
128 GB
|
|
Registreret eller buffer
|
Ikke bufferet
|
|
Teknologi
|
DDR4
|
|
Understøttet RAM-integritetskon
|
Ikke-ECC, ECC (drift i ikke-ECC tilstand)
|
|
Audio
|
|
|
Overensstemmelsesstandarder
|
High Definition Audio
|
|
Type
|
HD Audio (8-kanaler)
|
|
LAN
|
|
|
Netværks interfaces
|
2.5 Gigabit Ethernet
|
|
Ekspansion / Konnektivitet
|
|
|
Ekspansionsåbninger
|
1 x CPU | 4 x DIMM 288-pins | 1 x PCIe 4.0 x16 | 2 x PCIe 3.0 x1 | 2 x M.2 socket (2242/2260/2280 M.2 Key M åbning)
|
|
Grænseflade (lagring)
|
SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 | PCIe 4.0 -stikforbindelser: 2 x M.2
|
|
Interface
|
2 x DisplayPort | 1 x HDMI | 1 x VGA | 2 x USB 2.0 | 3 x USB 3.2 Gen 1 | 1 x USB-C 3.2 Gen 2 | 1 x audio linje-ind - mini-jack | 1 x mikrofon - mini-jack | 1 x audio linje-ud - mini-jack | 1 x LAN (2.5Gigabit Ethernet) | 1 x PS/2-tastatur/mus
|
|
Interne interfaces
|
4 x USB 2.0 - intern stik | 2 x USB 3.2 Gen 1 - intern stik | 1 x audio - intern stik | 1 x parallel - intern stik | 1 x seriel - intern stik | 1 x SPI - intern stik | 1 x SPDIF ud - intern stik
|
|
Strømkontakter
|
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt
|
|
Egenskaber
|
|
|
BIOS-egenskaber
|
PnP 1.0a support, DMI 2.7 support, WfM 2.0 understøttet, SMBIOS 2.7 support, ACPI 5.0 support
|
|
BIOS-type (Basic Input/Output System)
|
AMI
|
|
Hardware egenskaber
|
6+2+1 Phase Power Design, M.2 Thermal Guard, GIGABYTE Smart Fan 6, Q-Flash Plus, Solid Pin Power Connectors, RGB FUSION, MultiKey, DIY Friendly Design
|
|
Hardwareovervågning
|
Blæserfejlvarsel, blæserkontrol, vandkølings-flowrate
|
|
Diverse
|
|
|
Bredde
|
24.4 cm
|
|
Dybde
|
24.4 cm
|
|
Med software
|
Norton Internet Security
|
|
Medfølgende ledninger
|
2 x Seriel ATA kabel
|
|
Overensstemmelsesstandarder
|
DisplayPort 1.2, HDCP 2.3, FCC Part 15 Subpart B, WEEE, UKCA
|
Media
