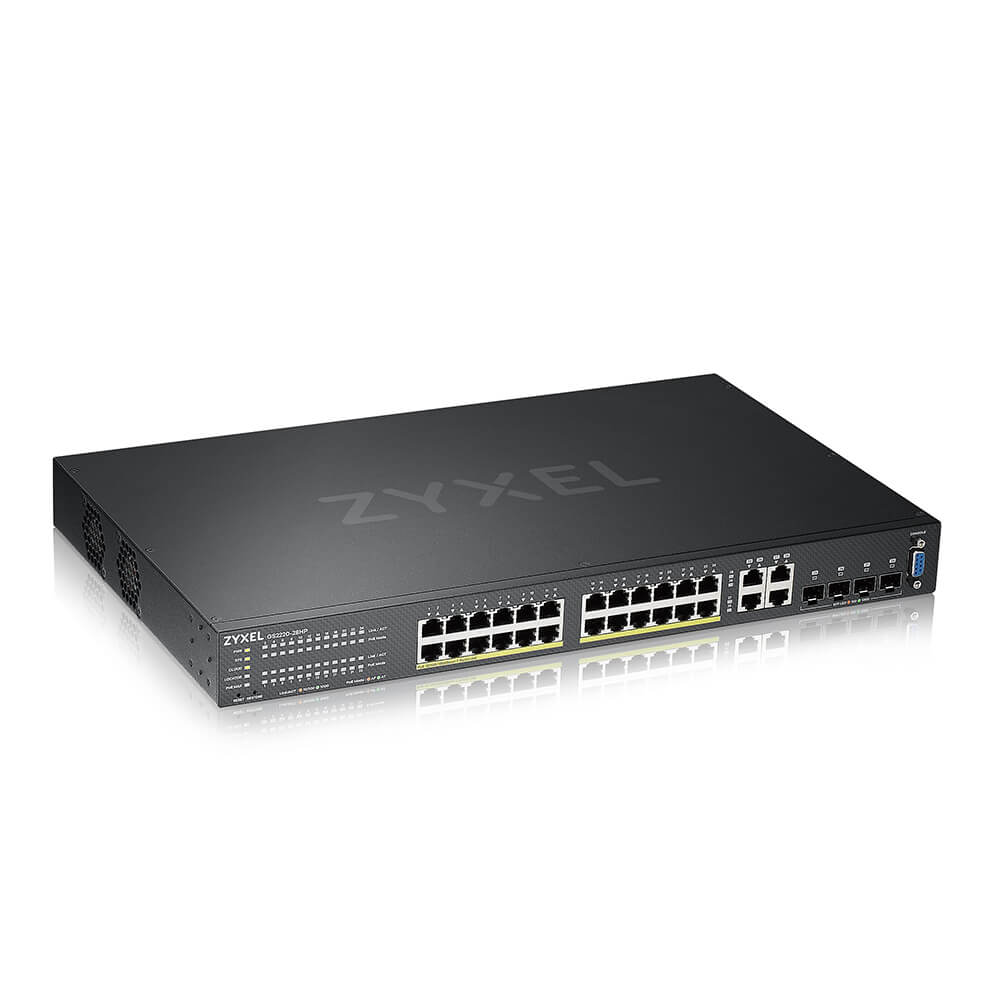

Zyxel GS2220-28HP Switch 24-porte Gigabit PoE+
Zyxel GS2220-28HP - Switch - Administreret - 24 x 10/100/1000 (PoE+) + 4 x combo Gigabit SFP - monterbar på stativ - PoE+ (375 W)
2 999,00 DKK
2 399,20 DKK excl. VAT
-
Product no 996083681
Model GS2220-28HP-EU0101F
Brand ZyXEL Communications
EAN 4718937607488
Weight 4.99 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Switch-type | Administreret |
| Basis omskiftning RJ-45 Ethernet porte, antal | 24 |
| Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
| Antal installerede SFP moduler | 0 |
| Antal installerede SFP+ moduler | 0 |
| Netværksstandarder | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G understøttelse | Ingen |
| MAC adresselabel | 16000 entries |
| Switch kapacitet | 56 Gbit/sek. |
| Stativ-montering | Ja |
| Strøm over Ethernet (PoE) | Ja |
| General | |
|---|---|
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Compliant Standards | IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| Device Type | Switch - 24 ports - managed |
| Enclosure Type | Rack-mountable |
| Encryption Algorithm | SSL |
| Features | Flow control, IGMP snooping, Syslog support, port mirroring, IP address filtering, ZyXEL iStacking Technology, sFlow, Quality of Service (QoS), MLD snooping, LACP support, LLDP support, DHCP relay, Port Security, DHCP client, Management Information B |
| Flash Memory | 32 MB |
| MAC Address Table Size | 16K entries |
| Performance | Switching capacity: 56 Gbps | Forwarding rate: 42 Mpps | Packet buffer size: 1.5 MB |
| PoE Budget | 375 W |
| Ports | 24 x 10/100/1000 (PoE+) + 4 x combo Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| RAM | 256 MB |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLD, MSTP, RSTP, STP |
| Status Indicators | Status |
| Subtype | Gigabit Ethernet |
| Expansion / Connectivity | |
| Interfaces | 28 x 1000Base-T RJ-45 PoE+ | 4 x 1000Base-X SFP | 1 x serial (RS-232) |
| Power | |
| Power Consumption Operational | 463.5 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous | |
| Compliant Standards | BSMI, RoHS, FCC Part 15 A, LVD, EMC Class A |
| Localization | Europe |
| MTBF | 693,245 hours |
| Rack Mounting Kit | Included |
| Dimensions & Weight | |
| Depth | 27 cm |
| Height | 4.4 cm |
| Weight | 3.8 kg |
| Width | 44.1 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 35.5 cm |
| Shipping Height | 10.7 cm |
| Shipping Weight | 4.97 kg |
| Shipping Width | 61.6 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 95% |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
