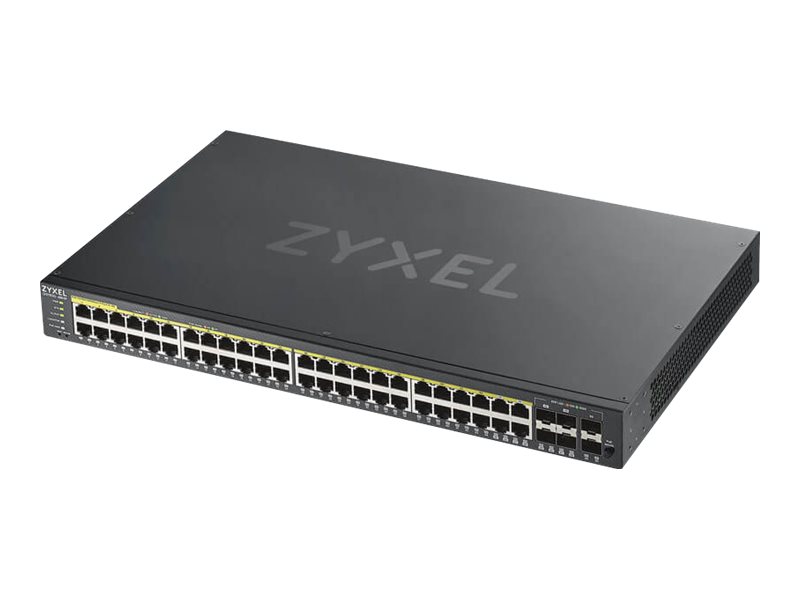

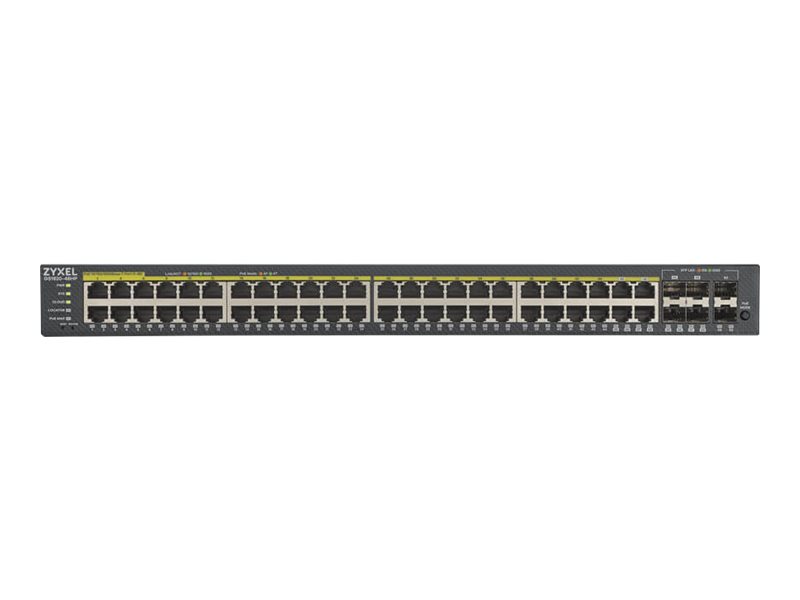

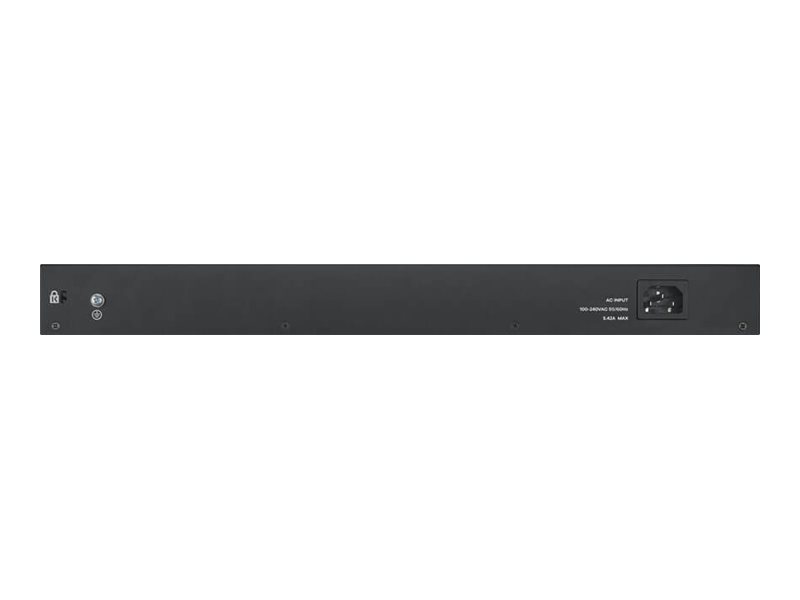

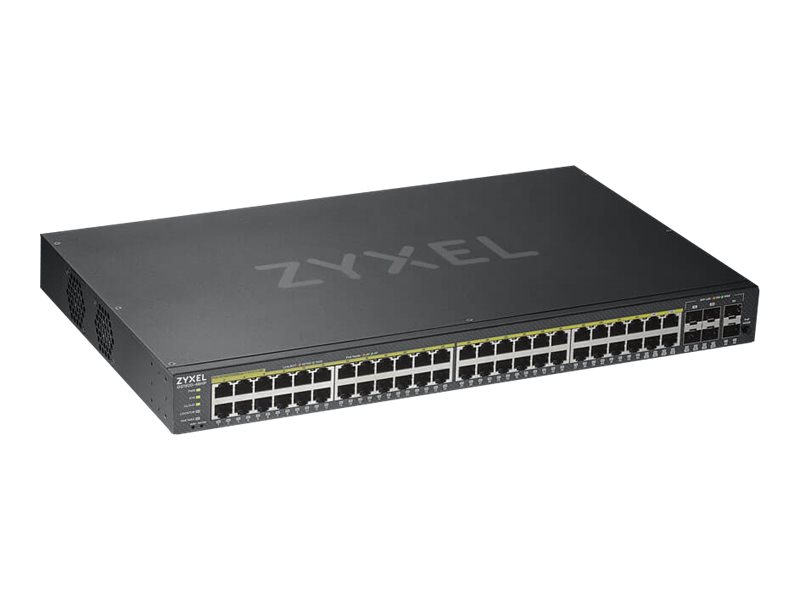

Zyxel GS1920-48HPv2 Switch 48-porte Gigabit PoE+
Zyxel GS1920-48HPv2 - Switch - smart - 48 x 10/100/1000 (PoE+) + 4 x combo Gigabit SFP + 2 x Gigabit SFP - monterbar på stativ - PoE+ (375 W)
4 509,00DKK3 607,20DKK excl. VAT
-
Product no 993536494
Model GS192048HPV2-EU0101F
Brand ZyXEL Communications
EAN 4718937601974
Weight 5.29 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Zyxel GS1920-48HPv2 - switch - 48 porte - smart - monterbar på stativ |
| Enhedstype | Switch - 48 porte - smart |
| Pakningstype | Monterbar på stativ 1U |
| Undertype | Gigabit Ethernet |
| Porte | 48 x 10/100/1000 (PoE+) + 4 x combo Gigabit SFP + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE-budget | 375 W |
| Præstation | Omkoblingskapacitet: 100 Gbps<br>Videresendelseshastighed: 74 Mpps |
| Kapacitet | QoS hardware-køer pr. port: 8 |
| MAC adresse table størrelse | 16K indtastningshukommelse |
| Routingprotokol | IGMPv2, IGMP, IGMPv3 |
| Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c |
| Egenskaber | Datatransport, VLAN-understøttet, IGMP snooping, Syslog understøttet, portspejling, DiffServ understøttet, MAC-adresse-filtrering, Broadcast Storm Control, IPv6 understøttet, IP-adresse filtrering, Multicast Storm Control, Unicast Storm Control, firmware kan opgraderes, Weighted Fair Queuing (WFQ), ZyXEL iStacking Technology, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Quality of Service (QoS), RADIUS support, MDL snooping, DHCP videresendelse, Port Security, SNMP fælde, DHCP klient, Management Information Base (MIB), Multicast VLAN Registration (MVR), Dynamic VLAN Support (GVRP), dobbelt firmware-billeder, Strict Priority Queuing (SPQ), Neighbor Discovery Protocol (NDP), portisolering, Class of Service (CoS), IGMP proxy, 802.1x autentificering, Duplicated Address Detection, sky-administreret, DiffServ Code Point (DSCP) support, 1,5 MB pakkebuffer, ErrDisable Recovery, IGMP-filtrering, IGMP-drosling, Protokol-baseret VLANs support, CPU-beskyttelse, IP-kildebekyttelse, ARP-inspektion, Internet Control Message Protocol (ICMP), VLAN-filtrering, Loop Guard, Voice VLAN, Private VLAN, Guest VLAN, Weighted Round Robin (WRR), MAC based VLAN, VLAN Tagging, portbaseret VLAN, Unknown Storm Control, MRSTP, MAC-frys |
| Overensstemmelsesstandarder | IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| Effekt | AC 120/230 V (50/60 Hz) |
| Dimensioner (B x D x H) | 44.1 cm x 27 cm x 4.4 cm |
| Vægt | 4.1 kg |
| Producentgaranti | Begrænset livtidsgaranti |
| General | |
|---|---|
| Authentication Method | RADIUS, TACACS+ |
| Capacity | QoS hardware queues per port: 8 |
| Compliant Standards | IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| Device Type | Switch - 48 ports - smart |
| Enclosure Type | Rack-mountable 1U |
| Encryption Algorithm | SSL |
| Features | Flow control, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, MAC address filtering, Broadcast Storm Control, IPv6 support, IP address filtering, Multicast Storm Control, Unicast Storm Control, firmware upgradable, Weig |
| Flash Memory | 32 MB |
| MAC Address Table Size | 16K entries |
| Performance | Switching capacity: 100 Gbps | Forwarding rate: 74 Mpps |
| PoE Budget | 375 W |
| Ports | 48 x 10/100/1000 (PoE+) + 4 x combo Gigabit SFP + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| RAM | 256 MB |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Subtype | Gigabit Ethernet |
| Expansion / Connectivity | |
| Interfaces | 48 x 1000Base-T RJ-45 PoE+ - 30 W | 4 x 1000Base-X SFP | 2 x 1000Base-X SFP |
| Power | |
| Power Consumption Operational | 474.3 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous | |
| Compliant Standards | BSMI, RoHS, FCC Part 15 A, LVD, EMC Class A |
| MTBF | 502,509 hours |
| Rack Mounting Kit | Included |
| Dimensions & Weight | |
| Depth | 27 cm |
| Height | 4.4 cm |
| Weight | 4.1 kg |
| Width | 44.1 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 35.5 cm |
| Shipping Height | 10.7 cm |
| Shipping Weight | 5.25 kg |
| Shipping Width | 61.6 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Humidity Range Storage | 10 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
