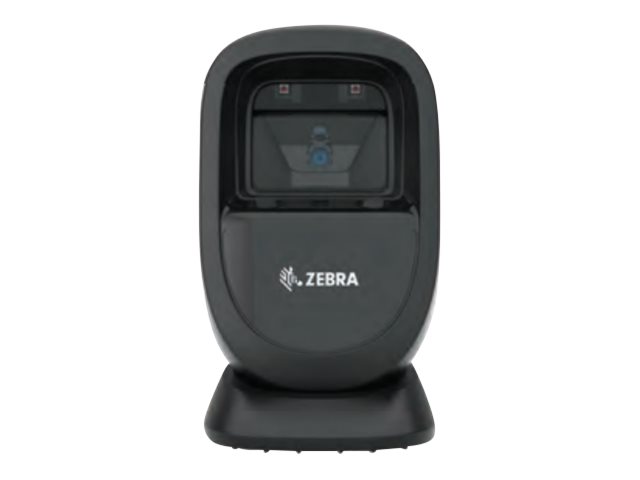

Zebra DS9300 Series DS9308 Stregkodescanner Desktopmodel

Zebra DS9300 Series DS9308 - Standard Range (SR) - USB Kit - stregkodescanner - desktopmodel - 2D imager - 3050 mm / sek. - afkodet - USB
1 089,00DKK871,20DKK excl. VAT
  • Product no 995744300

    Model DS9308-SR4U2100AZE

    Brand Zebra Technologies

    EAN 5704174202202

    Weight 0.52 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse Zebra DS9300 Series DS9308 - Standard Range (SR) - USB Kit - stregkodescanner
Type Stregkodescanner - desktopmodel - USB - afkodet
Farve Midnat sort
Lokalisering EMEA
Min. linjebredde 3 mil
Scanningskomponenttype 2D imager - Rød LED
Sensoropløsning 1280 x 800
Scanningshastighed 3050 mm / sek.
Forbindelsesteknologi Kabling
Dimensioner (B x D x H) 8.6 cm x 8.3 cm x 14.5 cm
Vægt 318 g
Producentgaranti 3 års garanti
General
Color Midnight black
Localization EMEA
Type Barcode scanner - desktop
Barcode
Connectivity Technology Wired
Decode Capability Code 93, Matrix 2 of 5, Code 39, UCC/EAN-128, ISBT 128, NW-7, IATA, ISBN, cupon code, GS1 DataBar, MaxiCode, Aztec code, Bookland, Code 39 Full ASCII, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, Discrete 2 of 5, MicroPDF417, Italy Pharmacode, Codabar, Code
Features ESD (electrostatic discharge) safe, deactivation of EAS tag, standard range scanning
Interface Type USB
Light Source Wave Length 617 nm
Max Working Distance 27.9 cm
Minimum Bar Width 3 mil
OK Notification Beeper, LED indicator
Pitch (Degrees) 60
Print Contrast Signal (PCS) 15%
Scan Element Type 2D imager - red LED
Scan Mode Single-pass
Scan Speed 3050 mm / sec
Sensor Resolution 1280 x 800
Skew (Degrees) 60
TTL Decoding Decoded
Expansion / Connectivity
Interfaces 1 x USB
Miscellaneous
Cables Included 1 x USB cable - external
Compliant Standards EN 61000-4-2, IP52, EN 50581:2012, EN 62471:2008, EN 61000-3-3:2013, EN 55024:2010, FCC CFR47 Part 15 B Class B, EN 55024:2010+A1:2015, EN 62368-1, IEC 62368-1, ICES-003 issue 6 Class B, EN 55032:2012+AC:2013 Class B, EN 61000-3-2:2014 Class A, IEC 6
Power
Electric Current Required 135 mA (standby), 335 mA (typical)
Power Device Power adapter
Dimensions & Weight
Depth 8.3 cm
Height 14.5 cm
Weight 318 g
Width 8.6 cm
Manufacturer Warranty
Service & Support Limited warranty - 3 years
Environmental Parameters
Drop Specification 1.5 m to concrete
Humidity Range Operating 5 - 95% (non-condensing)
Max Operating Temperature 50 °C
Min Operating Temperature 0 °C
