Product no 996184387

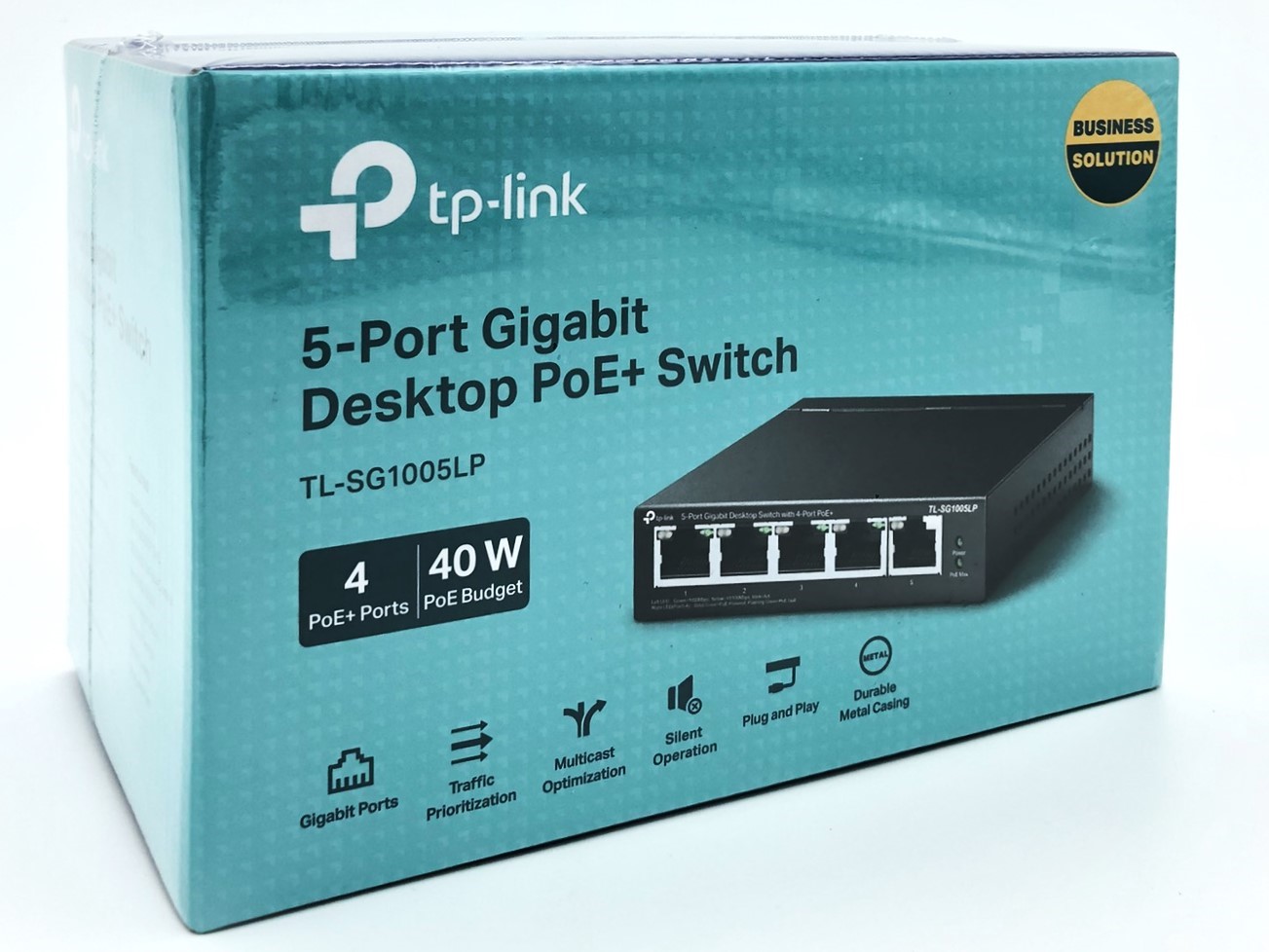

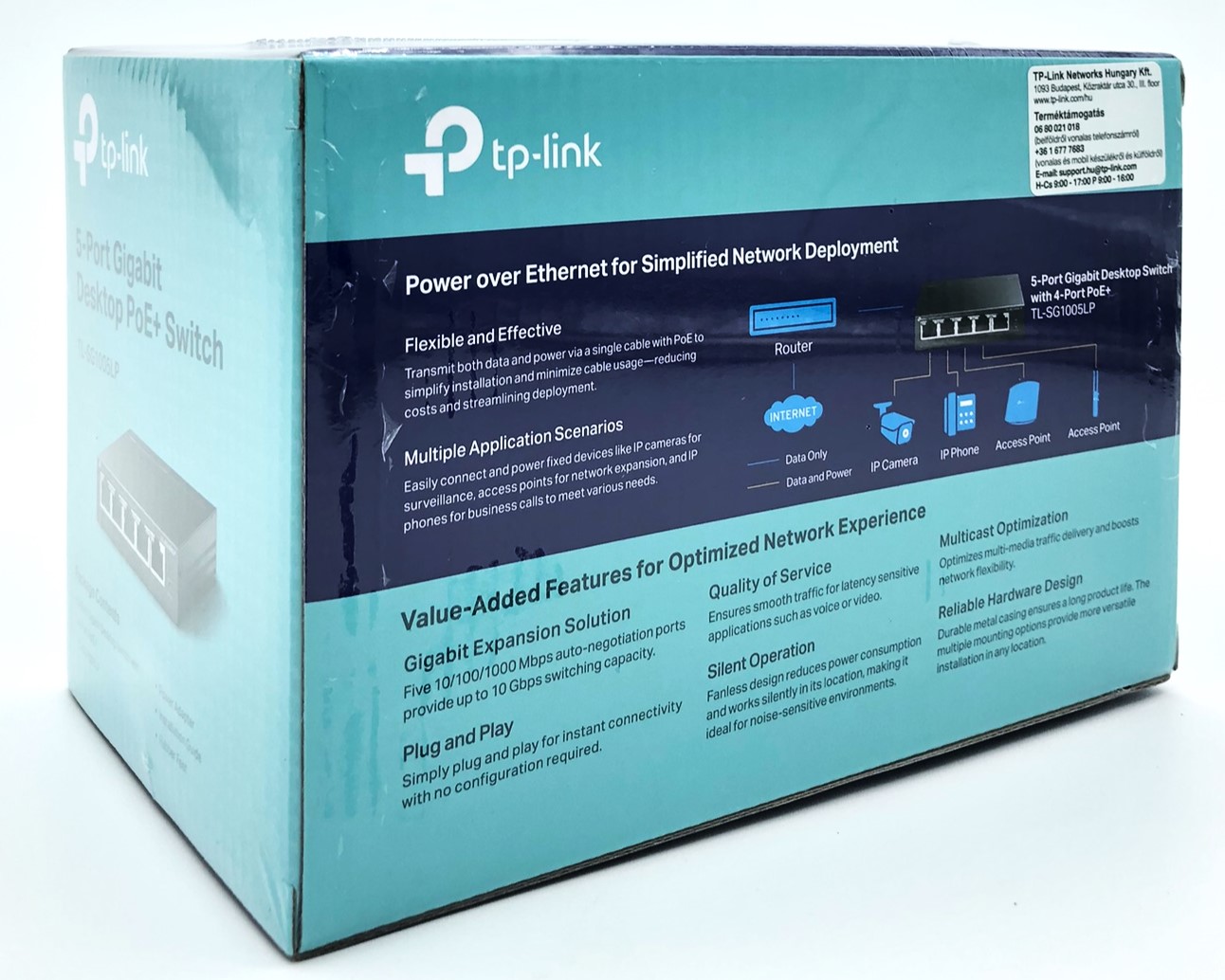

Model TL-SG1005LP
Brand
Go to brand's website
EAN 6935364052720
Weight 0.76 kg
Produktbeskrivelse | TP-Link TL-SG1005LP - V1 - switch - 5 porte - ikke administreret |
Enhedstype | Switch - 5 porte - ikke administreret |
Undertype | Gigabit Ethernet |
Porte | 5 x 10/100/1000 (4 PoE+) |
Power Over Ethernet (PoE) | PoE+ |
PoE-budget | 40 W |
Præstation | Pakkevideresendelseshastighed: 7,44 Mpps<br>Omkoblingskapacitet: 10 Gbps |
MAC adresse table størrelse | 2K indtastningshukommelse |
Jumborammesupport | 16KB |
Routingprotokol | IGMP |
Egenskaber | Datatransport, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, gem og send, Quality of Service (QoS), blæserløs, DiffServ Code Point (DSCP) support |
Overensstemmelsesstandarder | IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at |
Dimensioner (B x D x H) | 9.98 cm x 9.8 cm x 2.5 cm |
General | |
---|---|
Compliant Standards | IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at |
Device Type | Switch - 5 ports - unmanaged |
Enclosure Type | Desktop, wall-mountable |
Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, store and forward, Quality of Service (QoS), fanless, DiffServ Code Point (DSCP) support |
Jumbo Frame Support | 16KB |
MAC Address Table Size | 2K entries |
Performance | Packet forwarding rate: 7.44 Mpps | Switching capacity: 10 Gbps |
PoE Budget | 40 W |
Ports | 5 x 10/100/1000 (4 PoE+) |
Power Over Ethernet (PoE) | PoE+ |
Routing Protocol | IGMP |
Subtype | Gigabit Ethernet |
Expansion / Connectivity | |
Interfaces | 5 x 1000Base-T RJ-45 4 ports (PoE+) - 30 W |
Power | |
Power Consumption Operational | 47.5 Watt |
Power Device | External power adapter |
Power Provided | DC 53.5 V - 0.81 A |
Miscellaneous | |
Compliant Standards | Plug and Play, FCC, RoHS |
Dimensions & Weight | |
Depth | 9.8 cm |
Height | 2.5 cm |
Width | 9.98 cm |
Environmental Parameters | |
Humidity Range Operating | 10 - 90% (non-condensing) |
Humidity Range Storage | 5 - 90% (non-condensing) |
Max Operating Temperature | 40 °C |
Max Storage Temperature | 70 °C |
Min Operating Temperature | 0 °C |
Min Storage Temperature | -40 °C |
