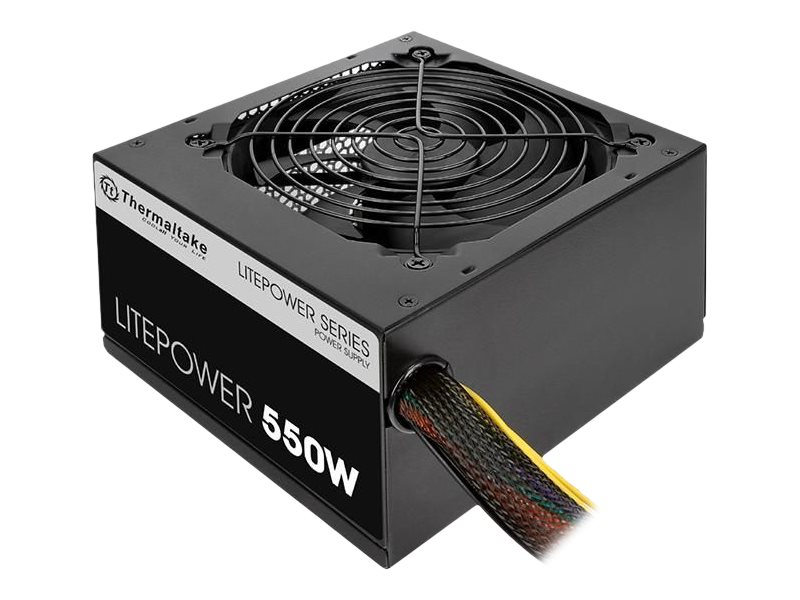

Thermaltake Litepower LTP-550AL2NK Strømforsyning 550Watt
Thermaltake Litepower LTP-550AL2NK - Strømforsyning (intern) - ATX12V 2.3 - AC 230 V - 550 watt - aktiv PFC - sort
319,00 DKK
255,20 DKK excl. VAT
-
Product no 992765409
Model PS-LTP-0550NPCNEU-2
Brand Thermaltake Technolo
EAN 4717964404237
Weight 1.73 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Thermaltake Litepower LTP-550AL2NK - strømforsyning - 550 watt |
| Enhedstype | Strømforsyning - aktiv Power Factor Correction (PFC) - intern |
| Specifikationsoverensstemmelse | ATX12V 2.3 |
| Indgangspænding | AC 230 V |
| Udgangspænding | +3.3, +5, ±12 V |
| Strømkapacitet | 550 watt |

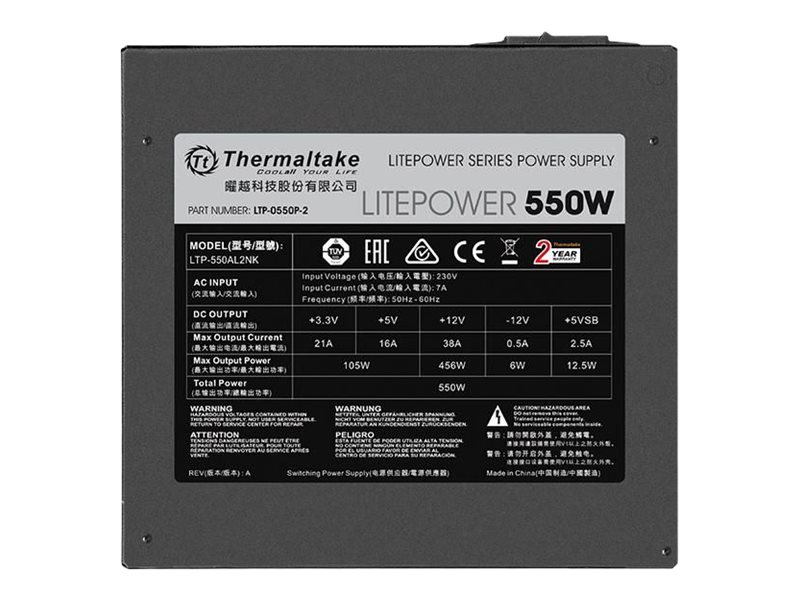

| Output Current | +3.3V - 21 A<br>+5V - 16 A<br>+12V - 38 A<br>+5VSB - 2.5 A<br>-12V - 0.5 A |
| Output-stikforbindelser | 1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion<br>4 x 4-PIN intern strøm<br>5 x 15 pin Serial ATA strøm<br>1 x 4-PIN mini-strømforsyningsforbinder<br>2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion |
| Kølesystem | 120 mm ventilator |
| Farve | Sort |
| Dimensioner (B x D x H) | 15 cm x 14 cm x 8.6 cm |
| General | |
|---|---|
| Color | Black |
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| PSU Form Factor | ATX |
| Specification Compliance | ATX12V 2.3 |
| Power Device | |
| Efficiency | 85% |
| Frequency Required | 50 - 60 Hz |
| Input Voltage | AC 230 V |
| Output Current | +3.3V - 21 A | +5V - 16 A | +12V - 38 A | +5VSB - 2.5 A | -12V - 0.5 A |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 550 Watt |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section | 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section | 4 x 4 pin internal power | 5 x 15 pin Serial ATA power | 1 x 4 pin mini-power connector | 2 x 8 pin PCI Express power with detachable 2 |
| Miscellaneous | |
| Compliant Standards | CB, TUV SUD, EAC, RCM |

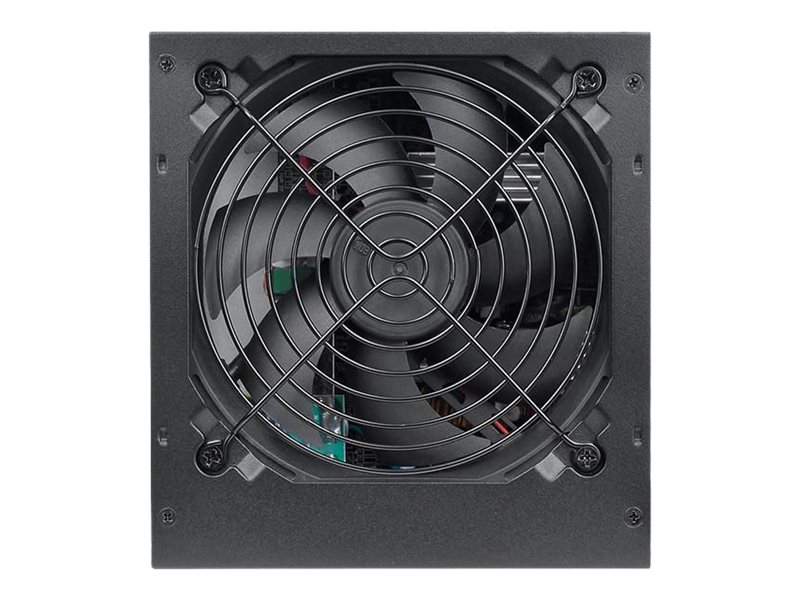

| Cooling System | 120 mm fan |
| Features | Overvoltage protection, overpower protection, short-circuit protection, single 12V rail, temperature controlled fan, non-modular |
| MTBF | 100,000 hours |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 85% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 5 °C |
| Dimensions & Weight | |
| Depth | 14 cm |
| Height | 8.6 cm |
| Width | 15 cm |
