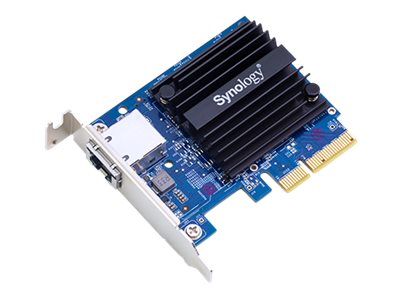

Synology E10G18-T1 Netværksadapter PCI Express 3.0 x4 10Gbps
Synology E10G18-T1 - Netværksadapter - PCIe 3.0 x4 lavprofil - 10Gb Ethernet x 1 - for Disk Station DS1618; RackStation RS1219, RS2418, RS2818, RS3618, RS818
1 229,00 DKK
983,20 DKK excl. VAT
-
Product no 993439662
Model E10G18-T1
Brand Synology
EAN 4711174723102
Weight 0.14 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Synology E10G18-T1 - netværksadapter - PCIe 3.0 x4 - 10Gb Ethernet x 1 |
| Enhedstype | Netværksadapter |
| Model | Indstikskort - lavprofil |
| Grænseflade (bus) type | PCI Express 3.0 x4 |
| Porte | 10Gb Ethernet x 1 |
| Dimensioner (B x D x H) | 1.36 cm x 8.6 cm x 6.81 cm |
| Kabeltype | Ethernet 10GBase-T, NBase-T |
| Dataforbindelsesprotokol | 10GbE |
| Dataoverførselshastighed | 10 Gbps |
| Overensstemmelsesstandarder | IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3an, IEEE 802.3bz |
| Producentgaranti | 5 års garanti |
| Designet for | Disk Station DS1517, DS1618, DS1817, DS3018, DS3611, DS3612, DS3615, DS3617; FlashStation FS1018, FS2017, FS3017; RackStation RC18015, RS10613, RS1219, RS18016, RS18017, RS2418, RS2818, RS3411, RS3412, RS3413, RS3614, RS3617, RS3618, RS4017, RS818 |
| General | |
|---|---|
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 3.0 x4 |
| Networking | |
| Cabling Type | Ethernet 10GBase-T, NBase-T |
| Compliant Standards | IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3an, IEEE 802.3bz |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet |
| Data Transfer Rate | 10 Gbps |
| Features | Flow control, auto-negotiation, full duplex mode, TCP/IP checksum offload, UDP/IP checksum offload, 9 KB Jumbo Frame |
| Ports | 10Gb Ethernet x 1 |
| Expansion / Connectivity | |
| Interfaces | 1 x 10GBase-T - RJ-45 |
| Miscellaneous | |
| Included Accessories | Low-profile bracket, full-height bracket |
| Dimensions & Weight | |
| Depth | 8.6 cm |
| Height | 6.81 cm |
| Width | 1.36 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Compatibility Information | |
| Designed For | Synology Disk Station DS1517+, DS1618+, DS1817+, DS3018xs, DS3611xs, DS3612xs, DS3615xs, DS3617xs | Synology FlashStation FS1018, FS2017, FS3017 | Synology RackStation RC18015XS+, RS10613xs+, RS1219+, RS18016xs+, RS18017XS+, RS2418+, RS2418RP+, RS281 |
