StarTech.com Multimode (MM) LC Fiber Media Converter for Network - 550m - - 850nm - SFP Transceiver (MCM1110MMLC) Fibermedieomformer Ethernet Fast Ethernet Gigabit Ethernet

Startech Multimode (MM) LC Fiber Media Converter for 10/100/1000 Network - 550m - Gigabit Ethernet - 850nm - with SFP Transceiver (MCM1110MMLC) - Fibermedieomformer - 1GbE - 10Base-T, 1000Base-LX, 1000Base-SX, 100Base-TX, 1000Base-T - RJ-45 / LC multimodus - op til 550 m - 850 nm - for P/N: SVA5N3NEUA

889,00 DKK 711,20 DKK excl. VAT

  • Product no 989868399

    Model MCM1110MMLC

    Brand StarTech.com

    EAN 0065030861465

    Weight 0.53 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse Startech Multimode (MM) LC Fiber Media Converter for 10/100/1000 Network - 550m - Gigabit Ethernet - 850nm - with SFP Transceiver (MCM1110MMLC) - fibermedieomformer - 10Mb LAN, 100Mb LAN, 1GbE
Enhedstype Fibermedieomformer - RJ-45 / LC multimodus
Model Ekstern
Kabeltype 10Base-T, 1000Base-LX, 1000Base-SX, 100Base-TX, 1000Base-T
Dataoverførselshastighed 1 Gbps
Optisk bølgelængde 850 nm
Dataforbindelsesprotokol 10Mb LAN, 100Mb LAN, 1GbE
Maks. overføringsafstand 550 m
Effekt AC 120/230 V
Dimensioner (B x D x H) 7 cm x 2.6 cm x 9.7 cm
Vægt 200 g
Producentgaranti 2 års garanti
Designet for P/N: SVA5N3NEUA
General
Color Brown
Device Type Fiber media converter
Form Factor External
Networking
Cabling Type 10Base-T, 1000Base-LX, 1000Base-SX, 100Base-TX, 1000Base-T
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab
Connectivity Technology Wired
Data Link Protocol 10Mb LAN, 100Mb LAN, GigE
Data Transfer Rate 1 Gbps
Features Auto-negotiation, auto-uplink (auto MDI/MDI-X), Link Fault Pass Through function (LFP), Jumbo Frames support, metal housing
Max Transfer Distance 550 m
Optical Wave Length 850 nm
Expansion / Connectivity
Interfaces 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female | 1 x Ethernet 1000Base-LX/1000Base-SX - LC multi-mode female x 2
Miscellaneous
Compliant Standards FCC, RoHS, MSA
MTBF 50,000 hours
Power
Power Consumption Operational 5 Watt
Power Device External power adapter
Voltage Required AC 120/230 V
Dimensions & Weight
Depth 2.6 cm
Height 9.7 cm
Weight 200 g
Width 7 cm
Manufacturer Warranty
Service & Support Limited warranty - 2 years
Environmental Parameters
Humidity Range Operating 5 - 95% (non-condensing)
Max Operating Temperature 50 °C
Min Operating Temperature 0 °C
Compatibility Information
Designed For P/N: SVA5N3NEUA

Convert and extend different networks over a Gigabit fiber cable connection up to 550m / 1804ft

  • Convert between an RJ45 copper Ethernet connection and a fiber optic connection to extend your network cost-effectively
  • 10/100/1000 Mbps RJ45 port supports auto negotiation to bridge different network speeds and devices to a Gigabit fiber network
  • Compact standalone design and wall mounting option for easy and convenient installation

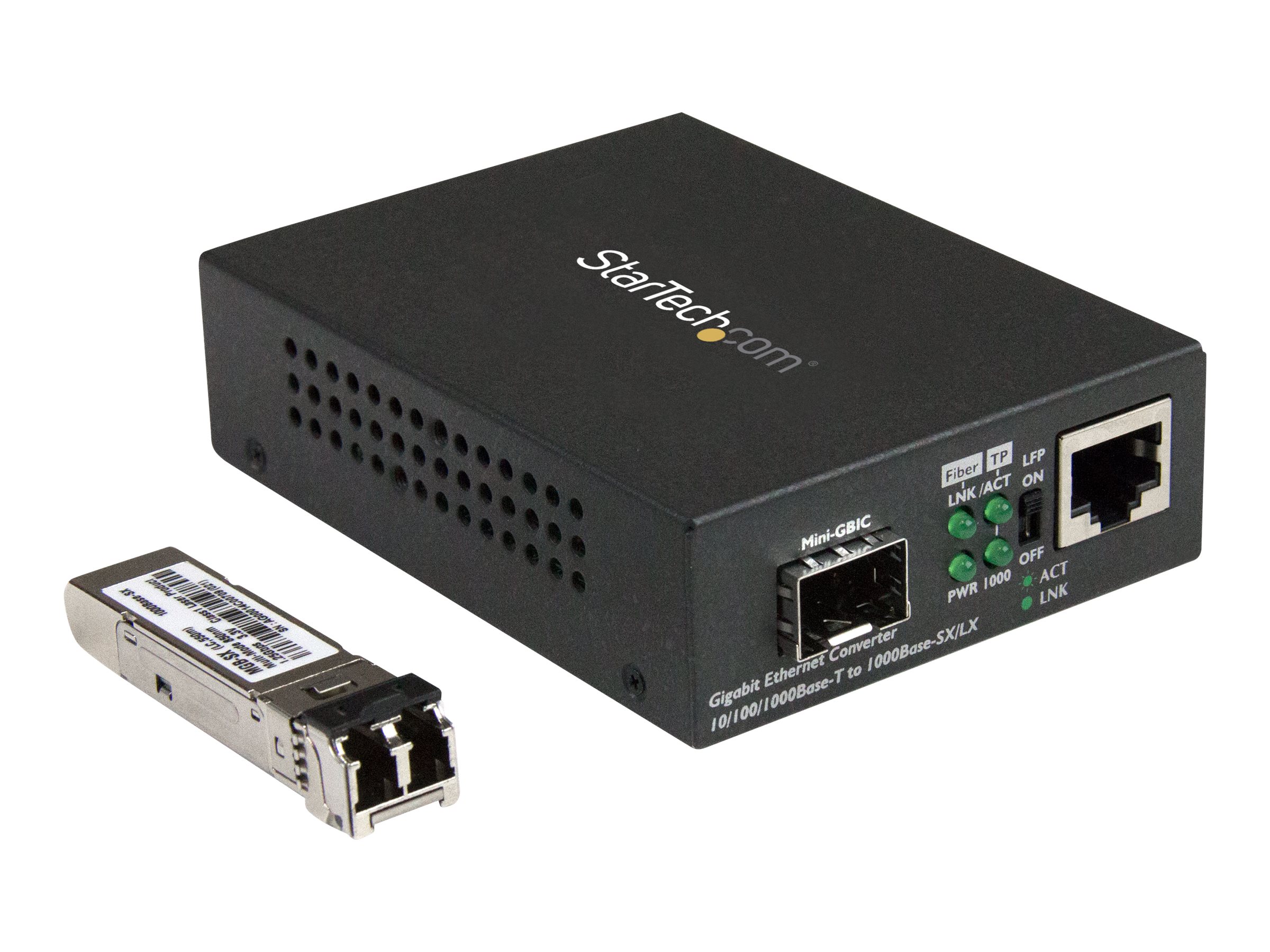

  • 850nm LC multimode Gigabit fiber connection using the included SFP transceiver
  • 550m range on fiber optic interface
  • Link Fault Pass (LFP) supported
  • Durable metal housing
  • Supports IEEE 802.1q Tag VLAN pass through
  • Auto MDIX
  • 9K Jumbo Frame supported
Convert and extend different networks over a Gigabit fiber cable connection up to 550m / 1804ft
slide {0} of {1}, zoom in, Convert and extend different networks over a Gigabit fiber cable connection up to 550m / 1804ft0:39
slide {0} of {1}, zoom in, Convert and extend different networks over a Gigabit fiber cable connection up to 550m / 1804ft
slide {0} of {1}, zoom in, Convert and extend different networks over a Gigabit fiber cable connection up to 550m / 1804ft
slide {0} of {1}, zoom in, Convert and extend different networks over a Gigabit fiber cable connection up to 550m / 1804ft
slide {0} of {1}, zoom in, Convert and extend different networks over a Gigabit fiber cable connection up to 550m / 1804ft

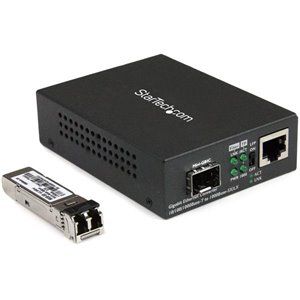

Cost-effective extension and dependable performance

Cost-effective extension and dependable performance

The Gigabit Fiber Media Converter provides a cost-effective and dependable solution for shorter range network extensions. It connects an Ethernet network to remote devices over a fiber backbone, with a 550m range on the fiber optic interface. The media converter has a durable metal housing, engineered to deliver long-lasting performance.

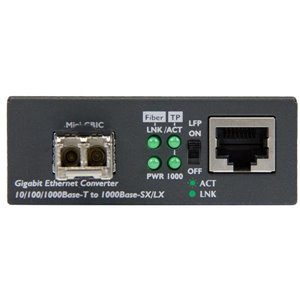

Versatile connections for broad compatibility

Versatile connections for broad compatibility

Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto negotiation to bridge different speed networks and devices to a Gigabit fiber network.  It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.

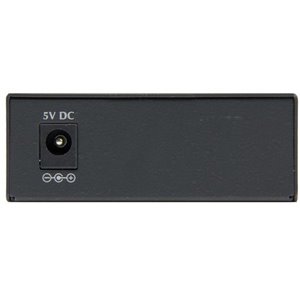

Easy installation and compact convenience

Easy installation and compact convenience

The unmanaged fiber media converter has a standalone design with simple plug-and-play set-up to ensure fast and easy installation. Compact in size, the converter gives you flexible installation options - including a wall mounting option to save space.

Applications

  • Extend or bridge networks using fiber cable
  • Provide connectivity to users in an isolated area of a large complex or in a separate building
  • Ideal for secure connections required by government or corporations where EMI is not acceptable
