StarTech.com Mbps Single Mode Fiber Media Converter SC - 18.6 miles/30km over Single Mode SC Fiber (ET90110SM302) Fibermedieomformer Ethernet Fast Ethernet

StarTech.com 10/100 Mbps Single Mode Fiber Media Converter SC - 18.6 miles/30km over Single Mode SC Fiber (ET90110SM302) - Fibermedieomformer - 100Mb LAN - 100Base-FX - RJ-45 / SC enkelttilstand - op til 30 km - 1310 nm - for P/N: ETCHS2U, SVA12M2NEUA, SVA12M5NA
2 189,00DKK1 751,20DKK excl. VAT

  • Product no 988492954

    Model ET90110SM302

    Brand StarTech.com

    EAN 0065030846264

    Weight 0.6 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse StarTech.com 10/100 Mbps Single Mode Fiber Media Converter SC - 18.6 miles/30km over Single Mode SC Fiber (ET90110SM302) - fibermedieomformer - 10Mb LAN, 100Mb LAN
Enhedstype Fibermedieomformer - RJ-45 / SC enkelttilstand
Model Ekstern
Lokalisering Nordamerika, United Kingdom, Europa
Kabeltype 100Base-FX
Dataoverførselshastighed 100 Mbps
Optisk bølgelængde 1310 nm
Dataforbindelsesprotokol 10Mb LAN, 100Mb LAN
Maks. overføringsafstand 30 km
Effekt AC 120/230 V
Dimensioner (B x D x H) 9.5 cm x 16 cm x 2 cm
Vægt 0.6 kg
Producentgaranti 2 års garanti
Designet for P/N: ETCHS2U, SVA12M2NEUA, SVA12M5NA
General
Color Black
Device Type Fiber media converter
Form Factor External
Localization North America, United Kingdom, Europe
Networking
Cabling Type 100Base-FX
Connectivity Technology Wired
Data Link Protocol 10Mb LAN, 100Mb LAN
Data Transfer Rate 100 Mbps
Features Auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, rugged
Max Transfer Distance 30 km
Optical Wave Length 1310 nm
Expansion / Connectivity
Interfaces 1 x network - RJ-45 female | 1 x Ethernet 100Base-FX - SC single-mode female x 2
Miscellaneous
Compliant Standards FCC, RoHS
Power
Power Device External power adapter
Voltage Required AC 120/230 V
Dimensions & Weight
Depth 16 cm
Height 2 cm
Weight 0.6 kg
Width 9.5 cm
Manufacturer Warranty
Service & Support Limited warranty - 2 years
Environmental Parameters
Humidity Range Operating 10 - 90%
Max Operating Temperature 60 °C
Min Operating Temperature 0 °C
Compatibility Information
Designed For P/N: ETCHS2U, SVA12M2NEUA, SVA12M5NA

Convert and extend a 10/100 Mbps Ethernet connection up to 18.6 miles/30km over Single Mode SC fiber

  • Supports standalone operation, or installation into the ETCHS2U Rackmount Chassis
  • Cost-effective way to extend/bridge networks using fiber cabling
  • Advanced features include Link-loss forwarding, remote status monitoring, two frame lengths
  • Maximum Fiber Cable length of 30 km
  • Supports full or half-duplex operation
  • Easy to use and install
Convert and extend a 10/100 Mbps Ethernet connection up to 18.6 miles/30km over Single Mode SC fiber
slide {0} of {1}, zoom in, Convert and extend a 10/100 Mbps Ethernet connection up to 18.6 miles/30km over Single Mode SC fiber
slide {0} of {1}, zoom in, Convert and extend a 10/100 Mbps Ethernet connection up to 18.6 miles/30km over Single Mode SC fiber
slide {0} of {1}, zoom in, Convert and extend a 10/100 Mbps Ethernet connection up to 18.6 miles/30km over Single Mode SC fiber
slide {0} of {1}, zoom in, Convert and extend a 10/100 Mbps Ethernet connection up to 18.6 miles/30km over Single Mode SC fiber
slide {0} of {1}, zoom in, Convert and extend a 10/100 Mbps Ethernet connection up to 18.6 miles/30km over Single Mode SC fiber
Link loss forwarding, remote monitoring of status ensures maximum up-time

Link loss forwarding, remote monitoring of status ensures maximum up-time

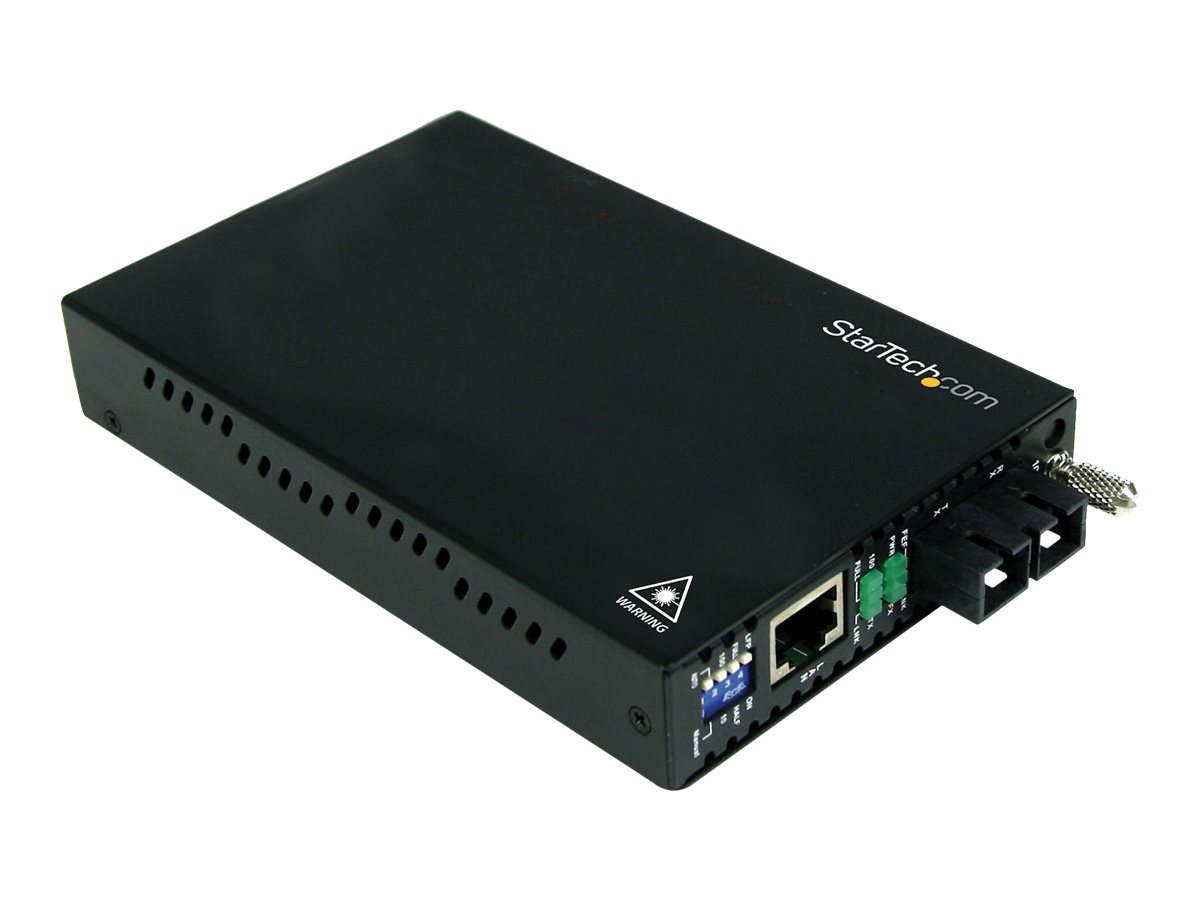

The ET90110SM302 10/100 Mbps Single Mode Fiber Media Converter SC (30 km) lets you extend a Fast Ethernet network (10/100) over single mode fiber, at distances up to 30 km (18.6 miles).

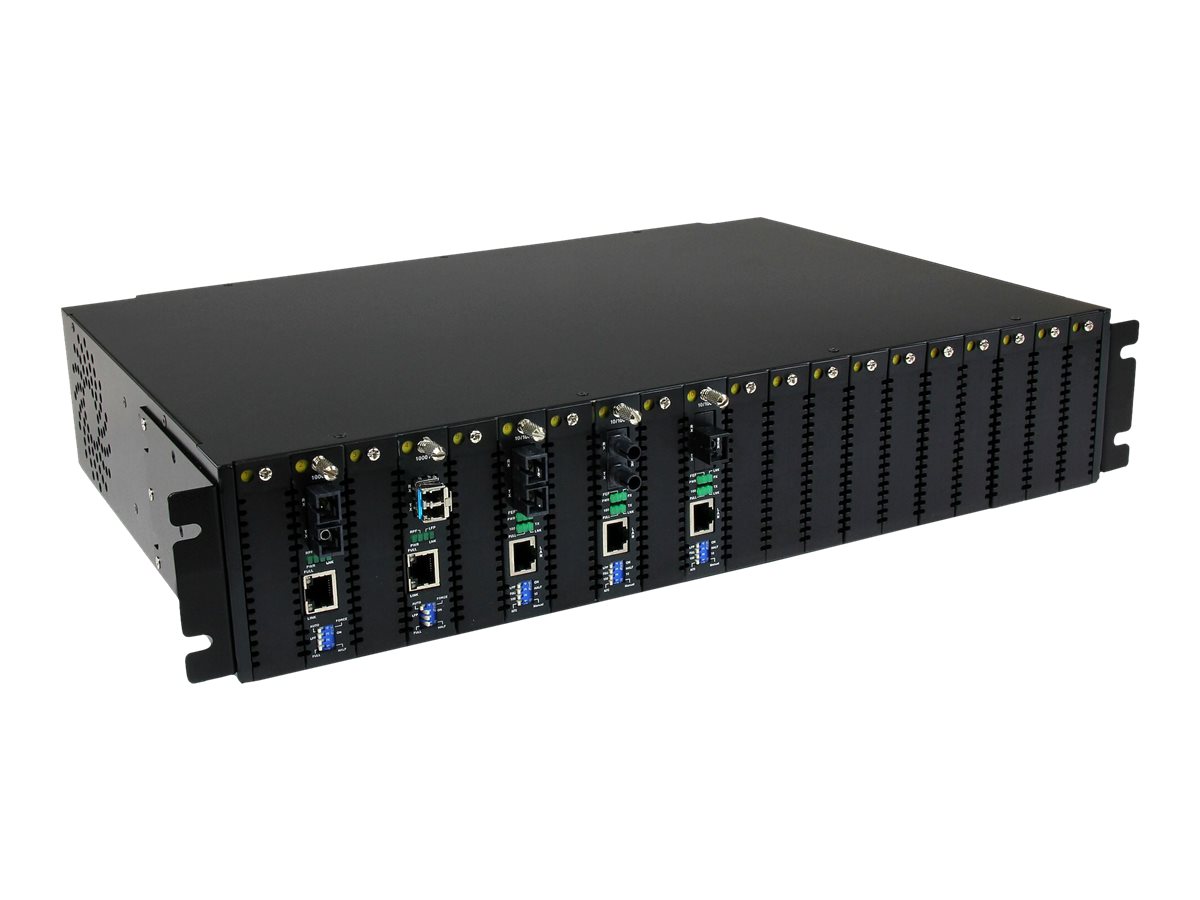

Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility

Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility

For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Rugged steel casing for durability in harsh environments

Rugged steel casing for durability in harsh environments

A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet to fiber solution, with an all-steel chassis, and simple plug-and-play installation with minimal configuration required.

Applications

  • Provides connectivity to a user or network segment that is in an isolated area of a large complex or in another building altogether
  • Perfect for secured environments required by government agencies, where EMI is not acceptable
  • Connect traffic control/monitoring systems at extreme distances to the main office
  • Extend network connectivity to remote areas of stadiums, auditoriums or other venues
  • Converts 100Base-FX fiber optic signals to 10/100Base-T Ethernet over single mode fiber cable
