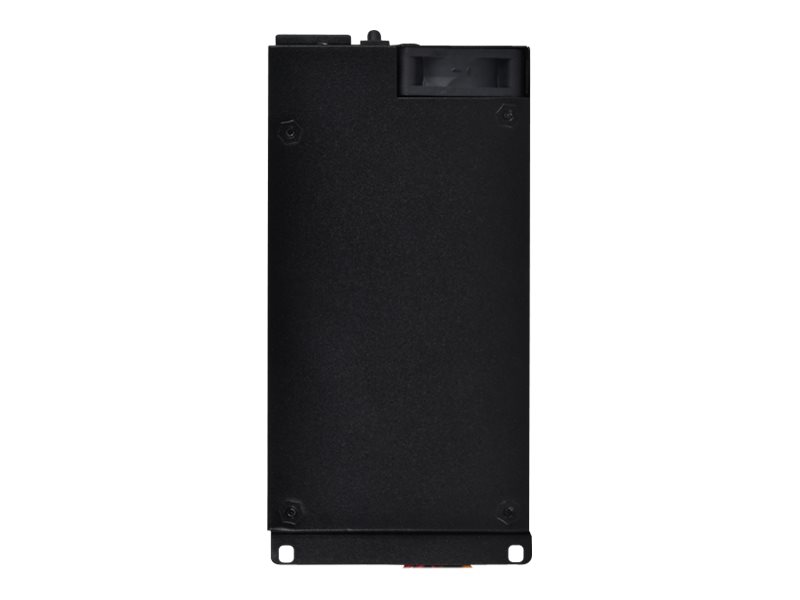

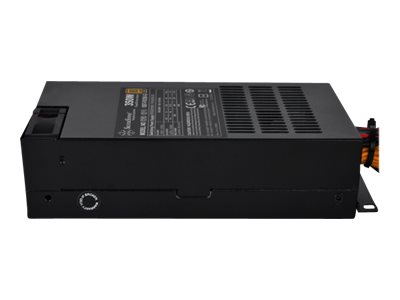

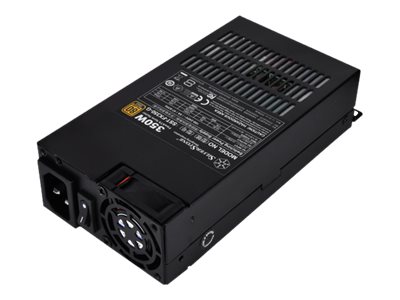

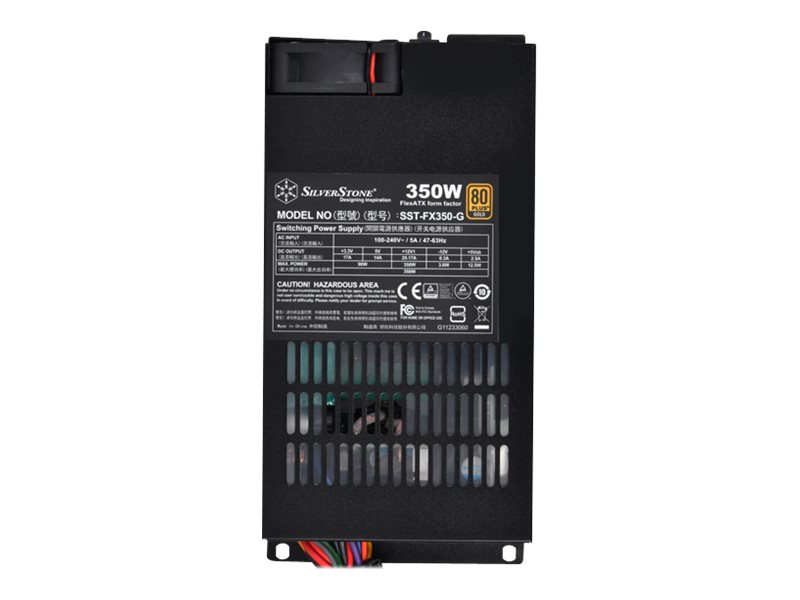

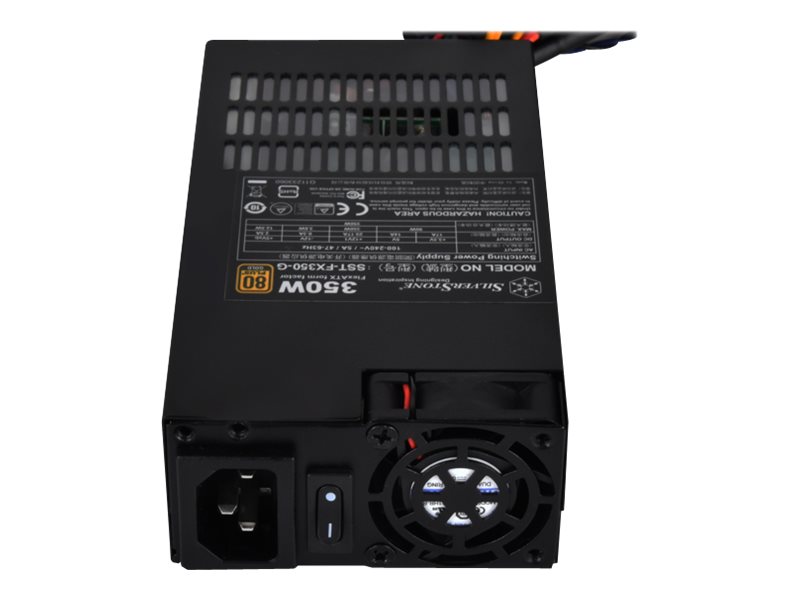

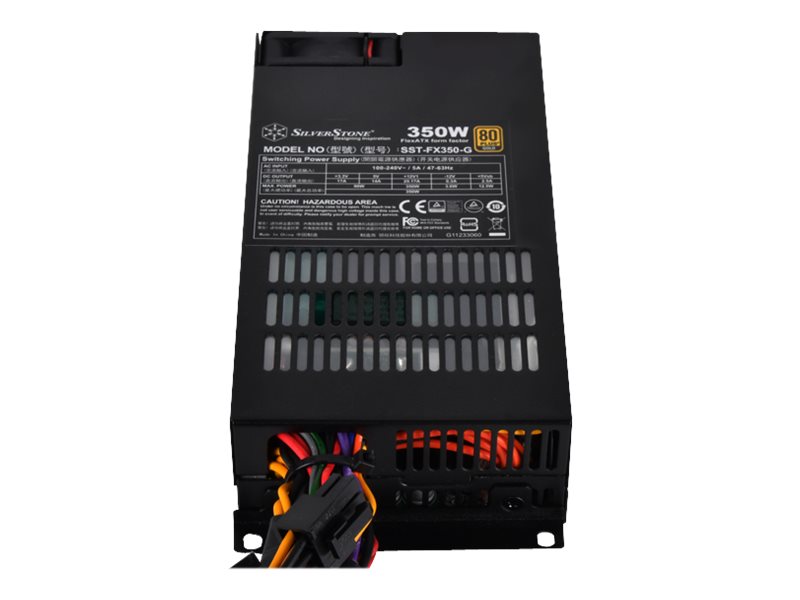

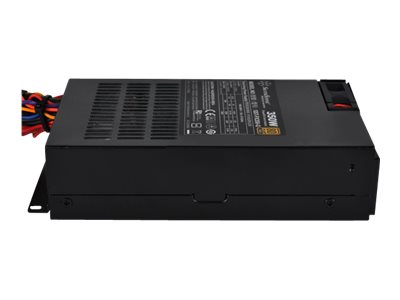

SilverStone TFX Series FX350-G Strømforsyning 350Watt
SilverStone TFX Series FX350-G - Strømforsyning (intern) - ATX12V / Flex ATX - 80 PLUS Gold - AC 90 - 264 V - 350 Watt - aktiv PFC - sort
669,00DKK535,20DKK excl. VAT
-
Product no 993421893
Model SST-FX350-G
Brand SilverStone Technolo
EAN 4710007225912
Weight 1.31 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | SilverStone TFX Series FX350-G - strømforsyning - 350 Watt |
| Enhedstype | Strømforsyning - aktiv Power Factor Correction (PFC) - intern |
| Specifikationsoverensstemmelse | ATX12V / Flex ATX |
| 80 PLUS certificering | 80 PLUS Gold |
| Vægt | 960 g |
| Indgangspænding | AC 90 - 264 V |
| Udgangspænding | +3.3, +5, ±12 V |
| Strømkapacitet | 350 Watt |
| Output Current | +3.3V - 17 A / 0 A<br>+5V - 14 A / 0 A<br>+12V1 - 29.17 A / 0 A<br>+5VSB - 2.5 A / 0 A<br>-12V - 0.3 A / 0 A |

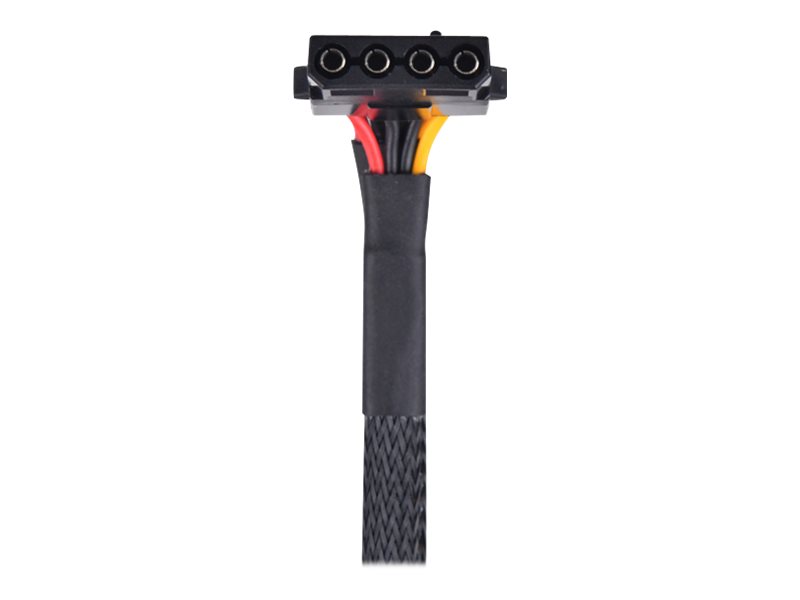

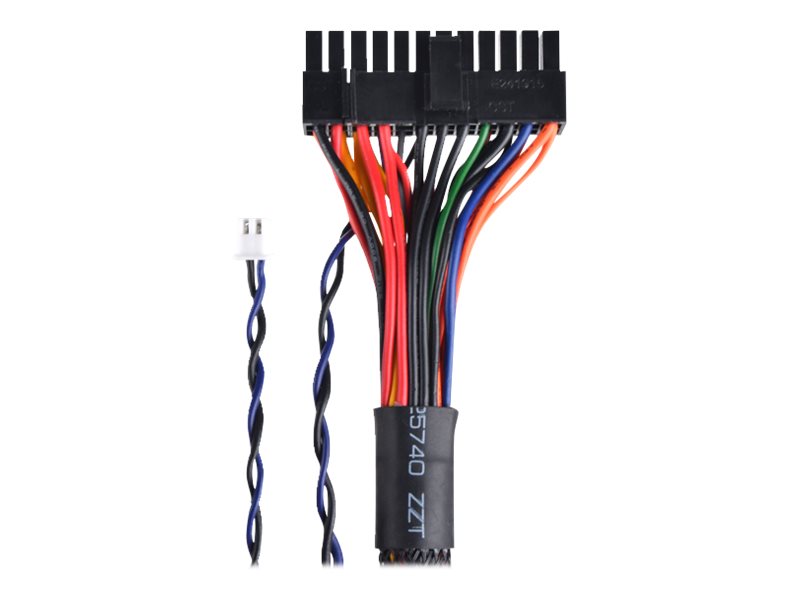

| Output-stikforbindelser | 1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion<br>1 x 6 pin PCI Express-strøm<br>3 x 15 pin Serial ATA strøm<br>2 x 4-PIN intern strøm<br>1 x 4-PIN mini-strømforsyningsforbinder |
| Kølesystem | 40mm blæser |
| Farve | Sort |
| Dimensioner (B x D x H) | 8.15 cm x 15 cm x 4.05 cm |
| General | |
|---|---|
| Color | Black |
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| PSU Form Factor | Flex ATX |
| Specification Compliance | ATX12V / Flex ATX |
| Power Device | |
| 80 PLUS Certification | 80 PLUS Gold |
| Efficiency | 90% at 100% Load, 87% at 20% Load |
| Frequency Required | 47 - 63 Hz |
| Input Voltage | AC 90 - 264 V |
| Output Current | +3.3V - 17 A / 0 A | +5V - 14 A / 0 A | +12V1 - 29.17 A / 0 A | +5VSB - 2.5 A / 0 A | -12V - 0.3 A / 0 A |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 350 Watt |
| Power Factor (PF) | 0.9 |

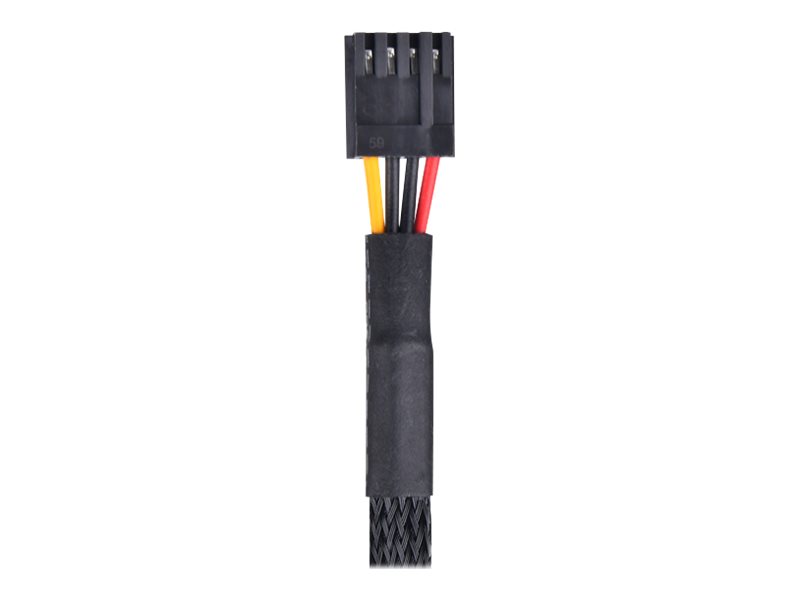

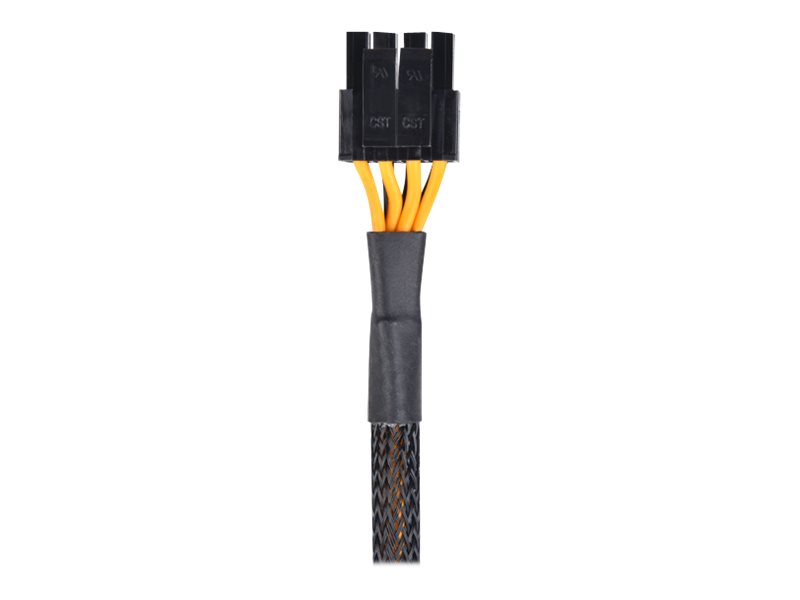

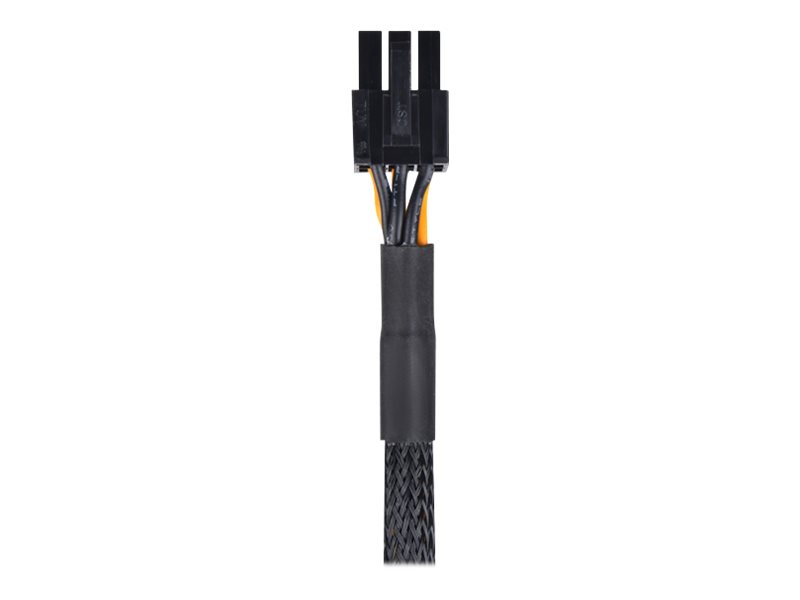

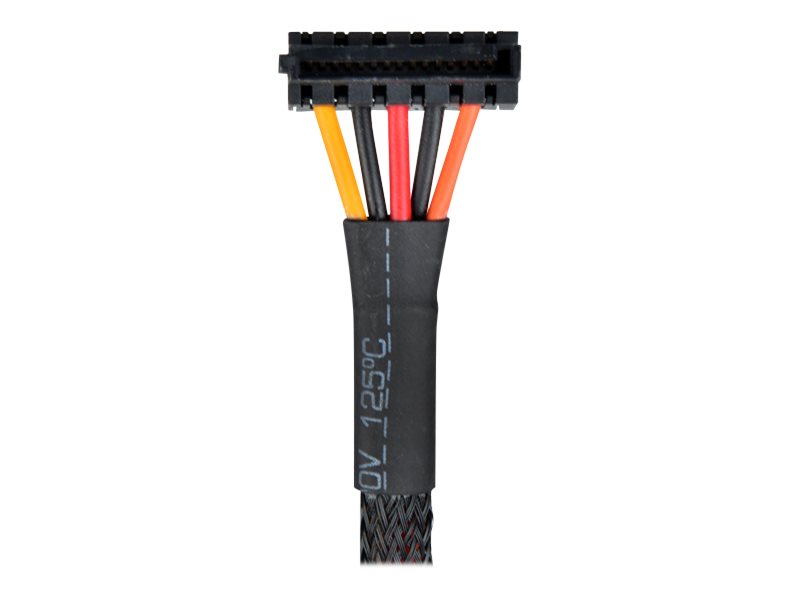

| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section | 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section | 1 x 6 pin PCI Express power | 3 x 15 pin Serial ATA power | 2 x 4 pin internal power | 1 x 4 pin mini-power connector |
| Miscellaneous | |

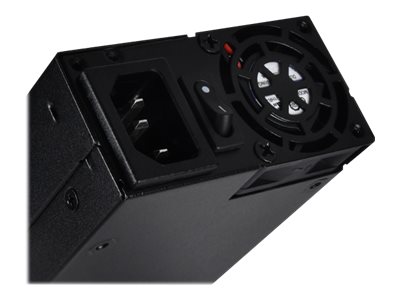

| Cooling System | 40 mm fan |
| Features | Overvoltage protection, overpower protection, short-circuit protection, single 12V rail |
| MTBF | 100,000 hours |
| Environmental Parameters | |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 20 dBA |
| Dimensions & Weight | |
| Depth | 15 cm |
| Height | 4.05 cm |
| Weight | 960 g |
| Width | 8.15 cm |
