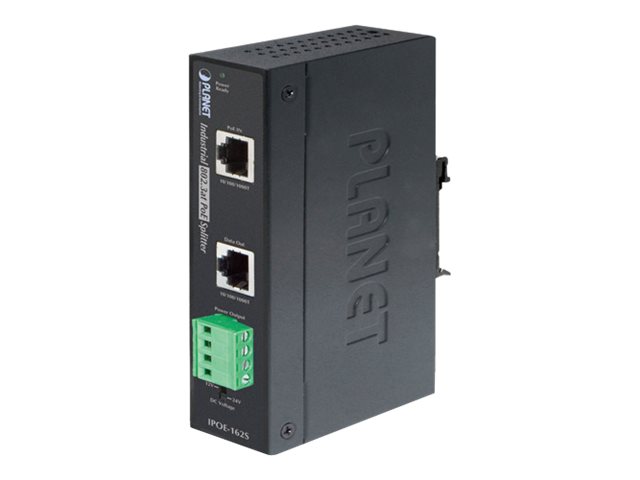

PLANET IPOE-162S 25Watt
PLANET IPOE-162S - PoE fordeler (monterbar på DIN rail) - 48 - 56 V - 25 watt - Ethernet 10/100/1000 - output-stikforbindelser: 1
749,00 DKK
599,20 DKK excl. VAT
-
Product no 992933608
Model IPOE-162S
Brand PLANET Technology
EAN 4711213687815
Weight 0.55 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | PLANET IPOE-162S - PoE fordeler - 25 watt |
| Enhedstype | PoE fordeler - monterbar på DIN rail |
| Power Over Ethernet (PoE) | PoE+ |
| Vægt | 421 g |
| Indgangspænding | 48 - 56 V |
| Udgangspænding | 12 / 24 V |
| Strømkapacitet | 25 watt |
| Input-stik | 1 x RJ-45 |
| Output-stikforbindelser | 1 x terminalblok |
| Netværk | Ethernet 10/100/1000 |
| Dimensioner (B x D x H) | 13.5 cm x 8.78 cm x 3.2 cm |
| General | |
|---|---|
| Device Type | PoE splitter - DIN rail mountable |
| Power Over Ethernet (PoE) | PoE+ (IEEE 802.3at) |
| Power Device | |
| Input Connectors | 1 x RJ-45 |
| Input Voltage | 48 - 56 V |
| Max Electric Current | 2 A |
| Output Voltage | 12 / 24 V |
| Power Capacity | 25 Watt |
| Power Output Connectors Details | 1 x terminal block |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000 |
| Expansion / Connectivity | |
| Interfaces | 1 x Gigabit LAN - RJ-45 |
| Miscellaneous | |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3at, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, FCC Part 15 A, IP30 |
| Features | 6000V EFT protection, 6000V ESD protection |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -40 °C |
| Dimensions & Weight | |
| Depth | 8.78 cm |
| Height | 3.2 cm |
| Weight | 421 g |
| Width | 13.5 cm |
