Product no 992798661

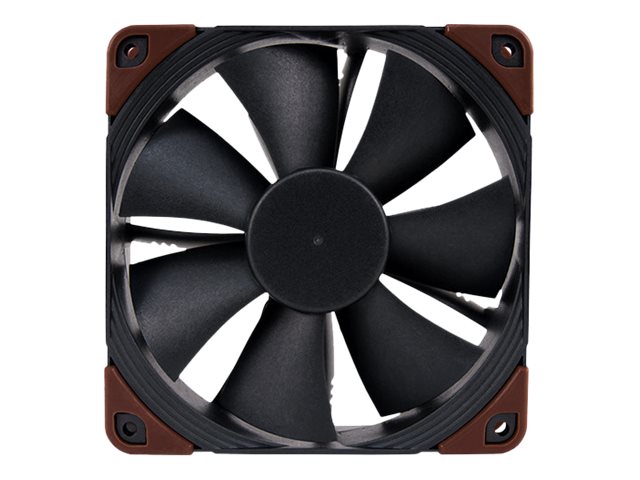

Model NF-F12 industrialPPC
Brand Noctua
EAN 9010018100570
Weight 0.27 kg
Produktbeskrivelse | Noctua IndustrialPPC NF-F12 - indsats med blæser |
Produkttype | Indsats med blæser |
Pakke Indhold | 4 x skruer |
Blæser diameter | 120 mm |
Blæser-højde | 25 mm |
Blæser med kugleleje | SSO2 leje |
Omdrejningshastighed | 450 - 2000 rpm |
Luftstrøm | 71,7 cfm |
Støjniveau | 29.7 dBA |
Stik | 4-pins blæser-stikforbindelse |
Rated Voltage | 24 V |
Egenskaber | FocusedFlow, tre-fasemotor |
Produktmateriale | Fiberglasforstærket polyamid |
Dimensioner (B x D x H) | 12 cm x 12 cm x 2.5 cm |
Egenskaber | IP67 beskyttelse |
Producentgaranti | 6 års garanti |
General | |
---|---|
Depth | 12 cm |
Height | 2.5 cm |
Package Content | 4 screws |
Product Material | Fiberglass-reinforced polyamide |
Product Type | Case fan |
Width | 12 cm |
Heatsink & Fan | |
Air Flow | 71.7 cfm |
Air Pressure | 3.94 mm |
Fan Bearing | SSO2 bearing |
Fan Diameter | 120 mm |
Fan Height | 25 mm |
Features | FocusedFlow, three-phase motor |
Noise Level | 29.7 dBA |
Power Connector | 4-pin fan connector |
Power Consumption | 1.68 W |
Rated Current | 0.07 A |
Rated Voltage | 24 V |
Rotation Speed | 450-2000 rpm |
Miscellaneous | |
Features | IP67 protection |
Mounting Kit | Included |
MTBF | 150,000 hour(s) |
Manufacturer Warranty | |
Service & Support | Limited warranty: - 6 years |
