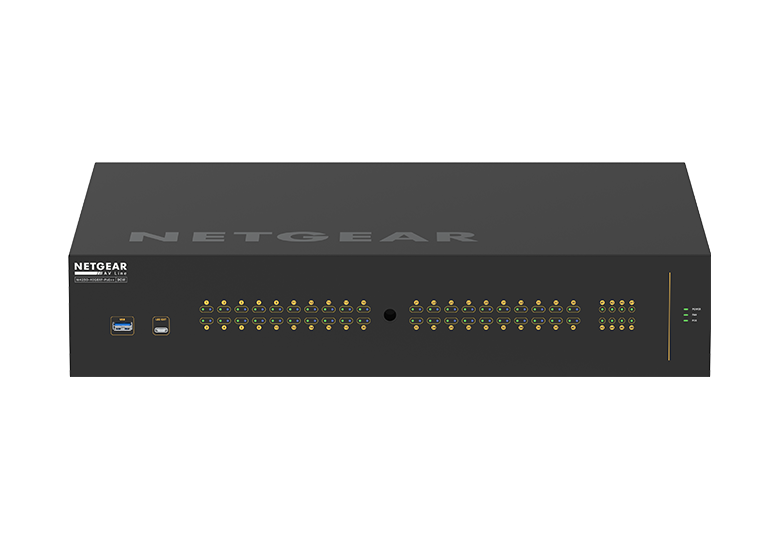

NETGEAR AV Line M4250-40G8XF- Switch 40-porte Gigabit PoE++
NETGEAR AV Line M4250-40G8XF-PoE++ - Switch - L3 - Administreret - 40 x 10/100/1000 (PoE++) + 8 x 1 Gigabit / 10 Gigabit SFP+ - side til side-luftstrøm - monterbar på stativ - PoE++ (2880 W)
28 519,00DKK22 815,20DKK excl. VAT
-
Product no 998335723
Model GSM4248UX-100EUS
Brand NETGEAR
EAN 0606449151763
Weight 10.28 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | NETGEAR AV Line M4250-40G8XF-PoE++ - switch - 40 porte - Administreret - monterbar på stativ |
| Enhedstype | Switch - 40 porte - L3 - Administreret |
| Pakningstype | Side til side-luftstrøm monterbar på stativ 1U |
| Undertype | Gigabit Ethernet |
| Porte | 40 x 10/100/1000 (PoE++) + 8 x 1 Gigabit / 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE++ |
| PoE-budget | 2880 W |
| Præstation | Omkoblingskapacitet: 240 Gbps<br>Firewall-gennemløb (64-byte pakkestørrelse): 178,56 Mpps<br>1 Gbps fiberlatens (64-byte pakker): 1.084 μs<br>1 Gbps fiberlatens (512-byte pakker): 1.103 μs<br>1 Gbps fiberlatens (1024-byte pakker): 1.098 μs<br>1 Gbps fiberlatens (1518-byte pakker): 1.115 μs<br>1 Gbps kobberlatens (64-byte pakker): 2.251 μs<br>1 Gbps kobberlatens (512-byte pakker): 2.625 μs<br>1 Gbps kobberlatens (1024-byte pakker): 2.775 μs<br>1 Gbps kobberlatens (1518-byte pakker): 2.641 μs<br>10 Gbps fiberlatens (64-byte pakker): 0.708 μs<br>10 Gbps fiberlatens (512-byte pakker): 0.716 μs<br>10 Gbps fiberlatens (1024-byte pakker): 0.728 μs<br>10 Gbps fiberlatens (1518-byte pakker): 0.713 μs |
| Kapacitet | ARP-indtastninger: 4000<br>NDP-indtastninger: 4000<br>Pakkebufferstørrelse: 32 MB<br>VLANs understøttet: 4093<br>IGMP multicast-grupper: 4000<br>QoS hardware køer: 8<br>IPv4 ruter (statisk): 64<br>IPv6 ruter (statisk): 64<br>RIP-applikationsruteskalering (IPv4): 32<br>IPv4-grupper (Multicast): 512<br>IPv6-grupper (Multicast): 128 |
| MAC adresse table størrelse | 16K indtastningshukommelse |
| Jumborammesupport | 12KB |
| Routingprotokol | RIP-1, RIP-2, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, statisk IPv4 routing, statisk IPv6 routing, police-baseret routing (PBR), MLDv2, MLD, PIM-SMv6, PIM-DMv6, MSTP, RSTP, STP |
| Protokol til fjernadministration | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, SFTP, ICMP, DHCP, TACACS+, RADIUS |
| Egenskaber | Datatransport, auto-sensing per device, understøttet af BOOTP, IGMP snooping, portspejling, DiffServ understøttet, gem og send, MAC-adresse-filtrering, Broadcast Storm Control, fuld dupleksmodus, Multicast Storm Control, Unicast Storm Control, SNTP-understøttet, WRED, sFlow, DHCP snooping, QoS, DHCP server, MDL snooping, DAI, STP Root Guard, UDLD, LACP support, LLDP support, DHCP videresendelse, Port Security, RSPAN, Energy Efficient Ethernet, MVR, dobbelt firmware-billeder, MVRP, NDP, CoS, SP, GARP, GVRP, IGMP proxy, 802.1x autentificering, PTP, DSCP support, kabeltest, MLD proxy, IP-kildebekyttelse, GMRP, SSM, DNS-klient, Voice VLAN, LLDP-MED, RA-værn, STP BPDU Guard, STP-løkkeværn, DoS protection, PIM, AVB, MAB, LAG, TPID, IPTV support, MACAL, ISDP, RPVST+, MRP, STP BPDU Filtering, STP BPDU Flooding, MGMD Snooping, ASM |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.3bt |
| Dimensioner (B x D x H) | 44 cm x 35 cm x 8.64 cm |
| Vægt | 10.28 kg |
| Lokalisering | Europa |
| Producentgaranti | ProSAFE livstidsgaranti |
| General | |
|---|---|
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Capacity | ARP entries: 4000 | NDP entries: 4000 | Packet buffer size: 32 MB | VLANs supported: 4093 | IGMP multicast groups: 4000 | QoS hardware queues: 8 | IPv4 routes (static): 64 | IPv6 routes (static): 64 | RIP application route scaling (IPv4): 32 | IPv4 g |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802. |
| Device Type | Switch - 40 ports - L3 - managed |
| Enclosure Type | Side to side airflow rack-mountable 1U |
| Encryption Algorithm | AES, TLS 1.0, SSL 3.0, TLS 1.2 |
| Features | Flow control, auto-sensing per device, BOOTP support, IGMP snooping, port mirroring, DiffServ support, store and forward, MAC address filtering, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, SNTP support, |
| Flash Memory | 256 MB |
| Jumbo Frame Support | 12KB |
| MAC Address Table Size | 16K entries |
| Performance | Switching capacity: 240 Gbps | Firewall throughput (64-byte packet size): 178.56 Mpps | 1 Gbps fiber latency (64-byte packets): 1.084 μs | 1 Gbps fiber latency (512-byte packets): 1.103 μs | 1 Gbps fiber latency (1024-byte packets): 1.098 μs | 1 Gbps |
| PoE Budget | 2880 W |
| Ports | 40 x 10/100/1000 (PoE++) + 8 x 1 Gigabit / 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE++ |
| Processor | X ARM: 1.8 GHz |
| RAM | 2 GB |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, SFTP, ICMP, DHCP, TACACS+, RADIUS |
| Routing Protocol | RIP-1, RIP-2, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, PIM-SMv6, PIM-DMv6, MSTP, RSTP, STP |
| Status Indicators | Port status, power, fan, PoE max |
| Subtype | Gigabit Ethernet |
| Expansion / Connectivity | |
| Interfaces | 40 x 10/100/1000 Base-T RJ-45 PoE++ - 90 W | 8 x 1000Base-X/10GBase-X SFP+ | 1 x management (Gigabit LAN) RJ-45 | 1 x management (RS-232) RJ-45 | 1 x USB-C | 1 x USB Type A |
| Power | |
| Installed Qty | 3 |
| Power Consumption Operational | 3523 Watt |
| Power Consumption Stand by | 68.5 Watt |
| Power Device | Internal power supply |
| Miscellaneous | |
| Cables Included | 1 x console cable | 1 x USB-C to USB-A cable |
| Compliant Standards | cUL, EN 60950, UL 1950, CB, CCC, EN 60950-1, GB 4943, RCM, EN 61000-3-3:2013, EN 55024:2010, EN 61000-3-2:2014, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 55032:2012+AC:2013 Class A, CNS 14336-1, EN 62368-1, IEC 62368-1, IEC 950, AS/NZS 60950-1:2015, |
| Included Accessories | Rubber feet, rubber caps |
| Localization | Europe |
| MTBF | 304,916 hours |
| Rack Mounting Kit | Included |
| Dimensions & Weight | |
| Depth | 35 cm |
| Height | 8.64 cm |
| Weight | 10.28 kg |
| Width | 44 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime | Limited warranty - technical support - 90 days |
| Environmental Parameters | |
| Humidity Range Operating | 90% (non-condensing) |
| Humidity Range Storage | 95% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -20 °C |
