Product no 998335722
Model GSM4248PX-100EUS
Brand NETGEAR
EAN 0606449151732
Weight 6.312 kg

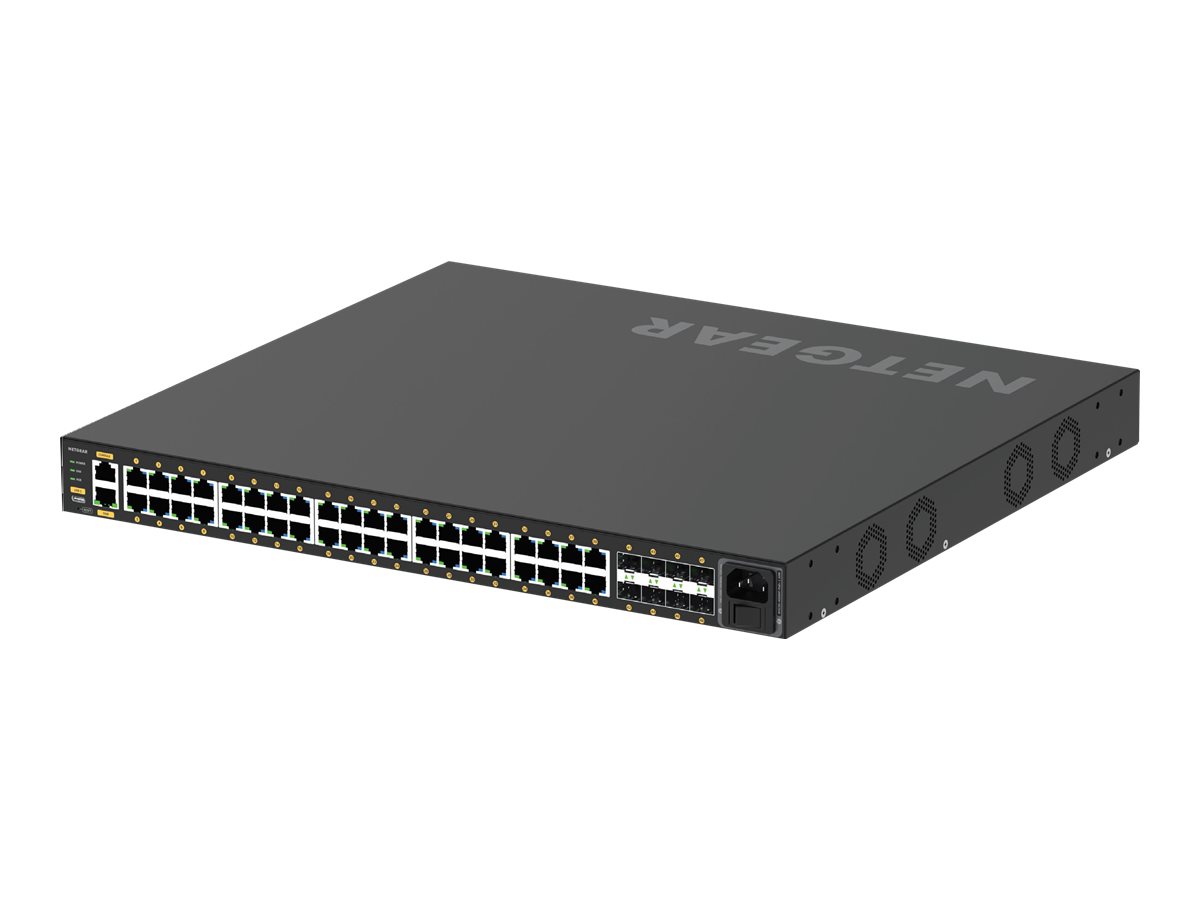

Produktbeskrivelse | NETGEAR AV Line M4250-40G8XF-PoE+ - switch - 40 porte - Administreret - monterbar på stativ |
Enhedstype | Switch - 40 porte - L3 - Administreret |
Pakningstype | Side til side-luftstrøm monterbar på stativ 1U |
Undertype | Gigabit Ethernet |
Porte | 40 x 10/100/1000 (PoE+) + 8 x 1 Gigabit / 10 Gigabit SFP+ |
Power Over Ethernet (PoE) | PoE+ |
PoE-budget | 960 W |
Præstation | Omkoblingskapacitet: 240 Gbps<br>Firewall-gennemløb (64-byte pakkestørrelse): 178,56 Mpps<br>1 Gbps fiberlatens (64-byte pakker): 1.106 μs<br>1 Gbps fiberlatens (512-byte pakker): 1.12 μs<br>1 Gbps fiberlatens (1024-byte pakker): 1.107 μs<br>1 Gbps fiberlatens (1518-byte pakker): 1.128 μs<br>1 Gbps kobberlatens (64-byte pakker): 2.220 μs<br>1 Gbps kobberlatens (512-byte pakker): 2.595 μs<br>1 Gbps kobberlatens (1024-byte pakker): 2.744 μs<br>1 Gbps kobberlatens (1518-byte pakker): 2.613 μs<br>10 Gbps fiberlatens (64-byte pakker): 0.709 μs<br>10 Gbps fiberlatens (512-byte pakker): 0.717 μs<br>10 Gbps fiberlatens (1024-byte pakker): 0.730 μs<br>10 Gbps fiberlatens (1518-byte pakker): 0.714 μs |
Kapacitet | ARP-indtastninger: 4000<br>NDP-indtastninger: 4000<br>Pakkebufferstørrelse: 32 MB<br>VLANs understøttet: 4093<br>IGMP multicast-grupper: 4000<br>QoS hardware køer: 8<br>IPv4 ruter (statisk): 64<br>IPv6 ruter (statisk): 64<br>RIP-applikationsruteskalering (IPv4): 32<br>IPv4-grupper (Multicast): 512<br>IPv6-grupper (Multicast): 128 |
MAC adresse table størrelse | 16K indtastningshukommelse |
Jumborammesupport | 12KB |
Routingprotokol | RIP-1, RIP-2, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, statisk IPv4 routing, statisk IPv6 routing, police-baseret routing (PBR), MLDv2, MLD, PIM-SMv6, PIM-DMv6, MSTP, RSTP, STP |
Protokol til fjernadministration | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, SFTP, ICMP, DHCP, TACACS+, RADIUS |
Egenskaber | Datatransport, auto-sensing per device, understøttet af BOOTP, IGMP snooping, portspejling, DiffServ understøttet, gem og send, MAC-adresse-filtrering, Broadcast Storm Control, fuld dupleksmodus, Multicast Storm Control, Unicast Storm Control, SNTP-understøttet, Weighted Random Early Detection (WRED), sFlow, DHCP snooping, Quality of Service (QoS), DHCP server, MDL snooping, Dynamic ARP Inspection (DAI), STP Root Guard, Uni-Directional Link Detection (UDLD), LACP support, LLDP support, DHCP videresendelse, Port Security, Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Multicast VLAN Registration (MVR), dobbelt firmware-billeder, Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Class of Service (CoS), Strict Priority (SP), Generic Attribute Registration Protocol (GARP), Generic VLAN Registration Protocol (GVRP), IGMP proxy, 802.1x autentificering, Precision Time Protocol (PTP), DiffServ Code Point (DSCP) support, kabeltest, MLD proxy, IP-kildebekyttelse, GARP Multicast Registration Protocol (GMRP), Source-Specific Multicast (SSM), DNS-klient, Voice VLAN, LLDP-MED, RA-værn, STP BPDU Guard, STP-løkkeværn, Denial of Service (DoS) protection, Protocol Independent Multicast (PIM), Audio Video Bridging (AVB), MAC Access Bypass (MAB), Link Aggregation Group (LAG), multiple tag protocol identifiers (TPID), IPTV support, Management Access Control and Administration List (MACAL), Industry Standard Discovery Protocol (ISDP), Rapid PVST+ (RPVST+), Multiple Registration Protocol (MRP), STP BPDU Filtering, STP BPDU Flooding, MGMD Snooping, Any Source Multicast (ASM) |
Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX |
Dimensioner (B x D x H) | 44 cm x 40 cm x 4.32 cm |
Vægt | 6.312 kg |
Lokalisering | Europa |
Producentgaranti | ProSAFE livstidsgaranti |
General | |
---|---|
Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
Capacity | ARP entries: 4000 | NDP entries: 4000 | Packet buffer size: 32 MB | VLANs supported: 4093 | IGMP multicast groups: 4000 | QoS hardware queues: 8 | IPv4 routes (static): 64 | IPv6 routes (static): 64 | RIP application route scaling (IPv4): 32 | IPv4 g |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802. |
Device Type | Switch - 40 ports - L3 - managed |
Enclosure Type | Side to side airflow rack-mountable 1U |
Encryption Algorithm | AES, TLS 1.0, SSL 3.0, TLS 1.2 |
Features | Flow control, auto-sensing per device, BOOTP support, IGMP snooping, port mirroring, DiffServ support, store and forward, MAC address filtering, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, SNTP support, |
Flash Memory | 256 MB |
Jumbo Frame Support | 12KB |
MAC Address Table Size | 16K entries |
Performance | Switching capacity: 240 Gbps | Firewall throughput (64-byte packet size): 178.56 Mpps | 1 Gbps fiber latency (64-byte packets): 1.106 μs | 1 Gbps fiber latency (512-byte packets): 1.12 μs | 1 Gbps fiber latency (1024-byte packets): 1.107 μs | 1 Gbps |
PoE Budget | 960 W |
Ports | 40 x 10/100/1000 (PoE+) + 8 x 1 Gigabit / 10 Gigabit SFP+ |
Power Over Ethernet (PoE) | PoE+ |
Processor | X ARM: 1.8 GHz |
RAM | 2 GB |
Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, SFTP, ICMP, DHCP, TACACS+, RADIUS |
Routing Protocol | RIP-1, RIP-2, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, PIM-SMv6, PIM-DMv6, MSTP, RSTP, STP |
Status Indicators | Port status, power, fan, PoE max |
Subtype | Gigabit Ethernet |
Expansion / Connectivity | |
Interfaces | 40 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W | 8 x 1000Base-X/10GBase-X SFP+ | 1 x management (Gigabit LAN) RJ-45 | 1 x management (RS-232) RJ-45 | 1 x USB-C | 1 x USB Type A |
Power | |
Installed Qty | 3 |
Power Consumption Operational | 1197 Watt |
Power Consumption Stand by | 74.5 Watt |
Power Device | Internal power supply |
Miscellaneous | |
Cables Included | 1 x console cable | 1 x USB-C to USB-A cable |
Compliant Standards | cUL, EN 60950, UL 1950, CB, CCC, EN 60950-1, GB 4943, RCM, EN 61000-3-3:2013, EN 55024:2010, EN 61000-3-2:2014, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 55032:2012+AC:2013 Class A, CNS 14336-1, EN 62368-1, IEC 62368-1, IEC 950, AS/NZS 60950-1:2015, |
Included Accessories | Rubber feet, rubber caps |
Localization | Europe |
MTBF | 487,900 hours |
Rack Mounting Kit | Included |
Dimensions & Weight | |
Depth | 40 cm |
Height | 4.32 cm |
Weight | 6.312 kg |
Width | 44 cm |
Manufacturer Warranty | |
Service & Support | Limited warranty - lifetime | Limited warranty - technical support - 90 days |
Environmental Parameters | |
Humidity Range Operating | 90% (non-condensing) |
Humidity Range Storage | 95% (non-condensing) |
Max Operating Temperature | 45 °C |
Max Storage Temperature | 70 °C |
Min Operating Temperature | 0 °C |
Min Storage Temperature | -20 °C |
