Gigabyte A520I AC Mini ITX AM4 AMD A520
Gigabyte A520I AC - 1.0 - bundkort - mini ITX - Socket AM4 - AMD A520 Chipset - USB 3.2 Gen 1 - Gigabit LAN, Wi-Fi, Bluetooth - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
859,00DKK687,20DKK excl. VAT
-
Product no 996570181
Model A520I AC
Brand
Go to brand's websiteEAN 4719331809867
Weight 0.8 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Gigabyte A520I AC - 1.0 - bundkort - mini ITX - Socket AM4 - AMD A520 |
| Produkttype | Bundkort - mini ITX |
| Chipsættype | AMD A520 |
| Processor-socket | 1 x Socket AM4 |
| Kompatible processorer | Ryzen (understøtter 3. Generation Ryzen /3. Generation Ryzen med Radeon Graphics) |
| Max RAM-størrelse | 64 GB |
| RAM understøttet | 2 DIMM slots - DDR4, ikke-ECC, ECC, ikke bufferet |
| Lagringsporte | 4 x SATA-600 (RAID), 1 x M.2 |
| USB / FireWire porte | 4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 2 x USB 2.0 via samlekasser) |
| Audio | HD Audio (8-kanaler) |
| LAN | Gigabit Ethernet, 802.11a/b/g/n/ac, Bluetooth 4.2 |
| General | |
|---|---|
| Chipset Type | AMD A520 |
| Compatible Processors | Ryzen (supports 3rd Generation Ryzen / 3rd Generation Ryzen with Radeon Graphics) |
| Max Processors Qty | 1 |
| Processor Socket | Socket AM4 |
| Product Type | Motherboard - mini ITX |
| Supported RAM | |
| Bus Clock | 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3333 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 3200 MHz, 4866 MHz (O.C.), 5200 MHz (O.C.), 5100 MHz (O.C.), 5300 MHz (O.C.) |
| Features | Dual channel memory architecture |
| Max Size | 64 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Technology | DDR4 |
| Audio | |
| Audio Codec | Realtek ALC887 |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| LAN | |
| Network Interfaces | Gigabit Ethernet, 802.11a/b/g/n/ac, Bluetooth 4.2 |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU | 2 x DIMM 288-pin | 1 x PCIe 3.0 x16 |

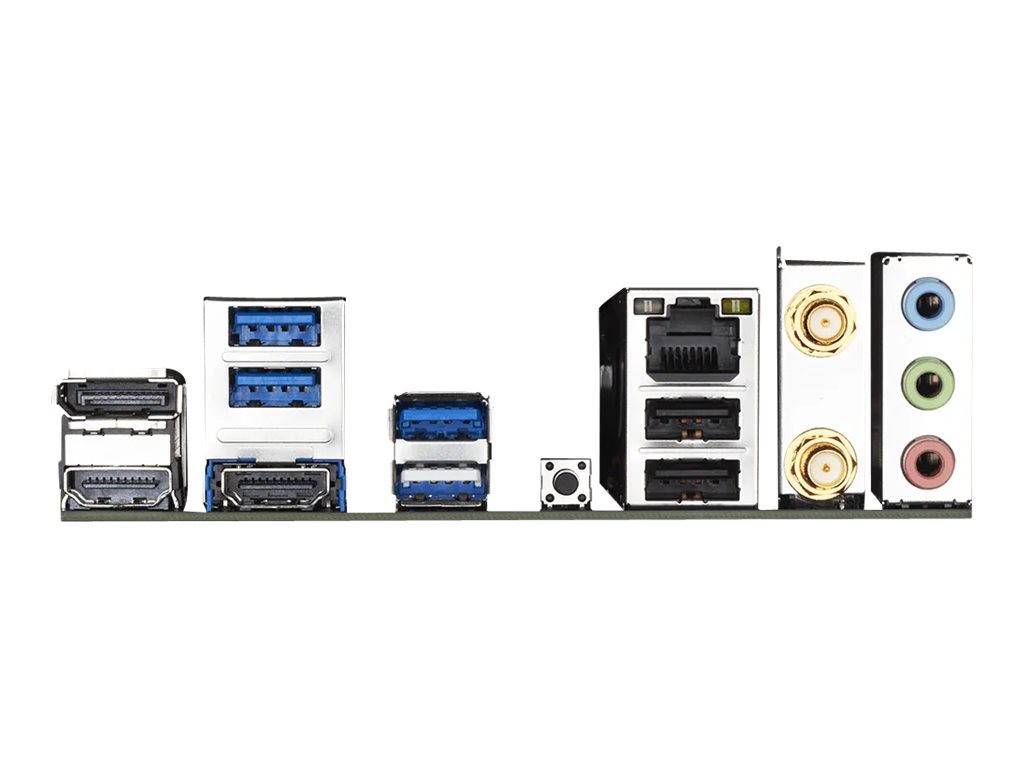

| Interfaces | 1 x LAN (Gigabit Ethernet) | 1 x audio line-in - mini-jack | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x DisplayPort | 2 x HDMI | 4 x USB 3.2 Gen 1 | 2 x USB 2.0 |
| Internal Interfaces | 2 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x audio - header | 1 x serial - header | 1 x speaker - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| Features | |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support |
| BIOS Type | AMI |
| Hardware Features | Q-Flash, On/Off Charge, 6 Phase Power Design, Ultra Durable, Q-Flash Plus, Dr.MOS MOSFET, Game Boost, GIGABYTE Double Locking Bracket, Anti-Sulfur Design, GIGABYTE Smart Fan 5, Solid Pin Power Connectors, RGB FUSION 2.0 |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage |
| Miscellaneous | |
| Depth | 17 cm |
| Software Included | Norton Internet Security, @BIOS, EasyTune, Xpress Install, GIGABYTE App Center, GIGABYTE Fast Boot, GIGABYTE Smart Backup, Realtek Gaming LAN Bandwidth Control |
| Width | 17 cm |
