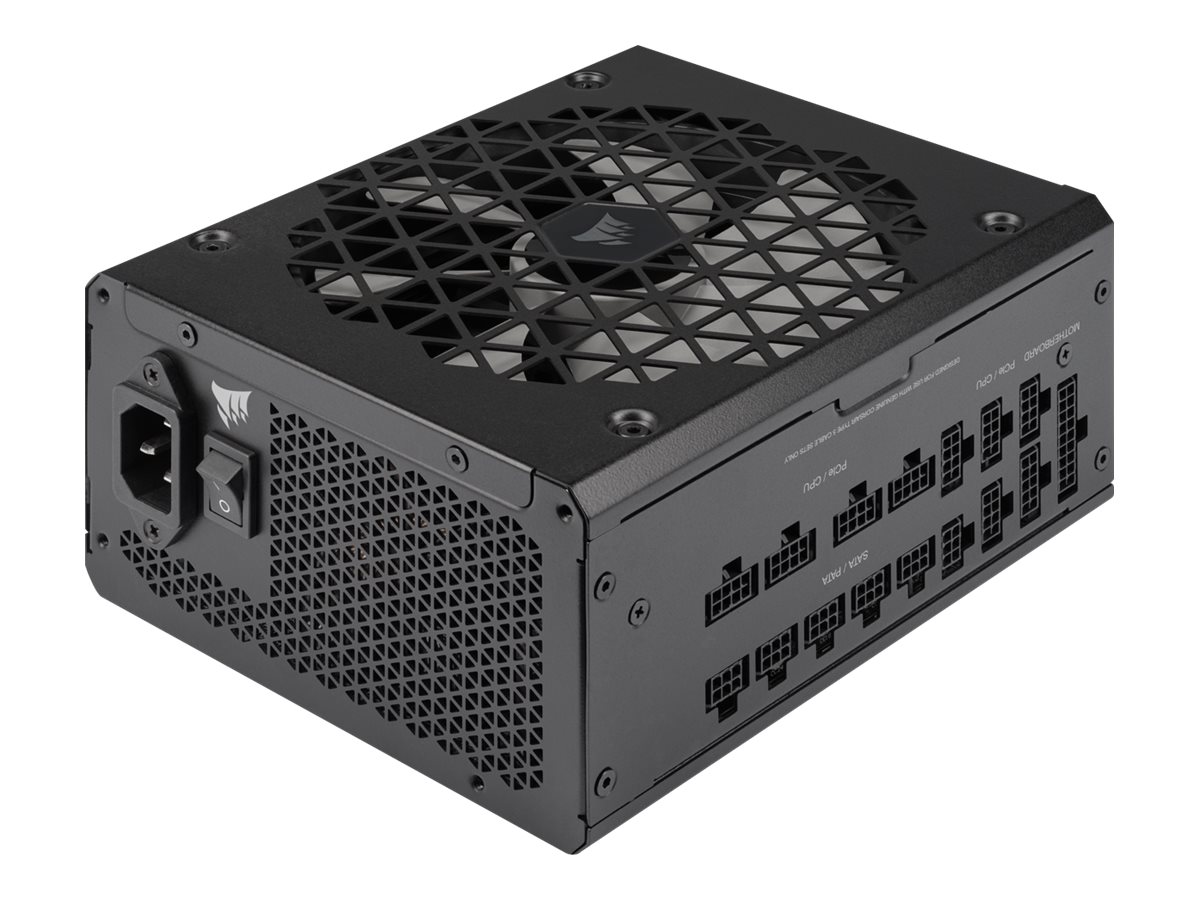

CORSAIR RMx Series RM1200X SHIFT Strømforsyning 1200Watt

CORSAIR RMx Series RM1200X SHIFT - Strømforsyning (intern) - ATX12V 3.0/ EPS12V 2.92 - 80 PLUS Gold - AC 100-240 V - 1200 Watt - Europa
1 759,00DKK1 407,20DKK excl. VAT
  • Product no 1000912226

    Model CP-9020254-EU

    Brand Corsair
    Go to brand's website

    EAN 0840006654049

    Weight 3.9 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse CORSAIR RMx Series RM1200X SHIFT - strømforsyning - 1200 Watt
Enhedstype Strømforsyning - intern
Specifikationsoverensstemmelse ATX12V 3.0/ EPS12V 2.92
80 PLUS certificering 80 PLUS Gold
Vægt 2 kg
Lokalisering Europa
Indgangspænding AC 100-240 V
Udgangspænding +3.3, +5, +12 V
Strømkapacitet 1200 Watt
Output Current +3.3V - 20 A<br>+5V - 20 A<br>+12V - 100 A<br>+5VSB - 3 A
Output-stikforbindelser 1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion<br>1 x 12VHPWR<br>4 x 2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion<br>4 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion<br>16 x 15 pin Serial ATA strøm<br>8 x 4-PIN intern strøm
Modulær Kabel Administration Ja
Kølesystem 140 mm ventilator
Udstyr inkluderet Kabelbånd, monteringsskrue
Dimensioner (B x D x H) 15 cm x 18 cm x 8.6 cm
Producentgaranti 10-års garanti
General
Device Type Power supply - internal
Localization Europe
PSU Form Factor ATX
Specification Compliance ATX12V 3.0/ EPS12V 2.92
Power Device
80 PLUS Certification 80 PLUS Gold
Efficiency 90%
Frequency Required 47 - 63 Hz
Input Voltage AC 100-240 V
Modular Cable Management Yes
Output Current +3.3V - 20 A | +5V - 20 A | +12V - 100 A | +5VSB - 3 A
Output Voltage +3.3, +5, +12 V
Power Capacity 1200 Watt
Power Output Connectors Details 1 x power 24 pin ATX with detachable 4 pin section | 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section | 1 x 12VHPWR | 4 x 2 x 8 pin PCI Express power with detachable 2 pin section | 4 x 8 pin PCI Express power with detachable 2 pin section
Miscellaneous
Cables Included AC input cable | Power 24 pin ATX modular cable 61 cm | 16-pin 12VHPWR power cable 65 cm | 2 x 2x 8 pin PCI Express power with detachable 2 pin section modular cable 75 cm | 4 x 8 pin PCI Express power with detachable 2 pin section modular cable 65 c
Compliant Standards EMC, RoHS, LVD, EN/IEC 63000:2018, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN IEC 62368-1:2020+A11:2020, EN IEC 61000-3-2:2019+A1:2021
Cooling System 140 mm fan
Features Overheat protection, overcurrent protection, overvoltage protection, overpower protection, short-circuit protection, DC-DC technology, Zero RPM fan mode, fluid dynamic bearing cooling fan, fully modular, LLC resonant converter technology, Modern Stan
Included Accessories Cable ties, mounting screw
MTBF 100,000 hours
Manufacturer Warranty
Service & Support Limited warranty - 10 years
Dimensions & Weight
Depth 18 cm
Height 8.6 cm
Weight 2 kg
Width 15 cm
Dimensions & Weight (Shipping)
Shipping Depth 30.2 cm
Shipping Height 12.9 cm
Shipping Weight 4 kg
Shipping Width 21.4 cm
