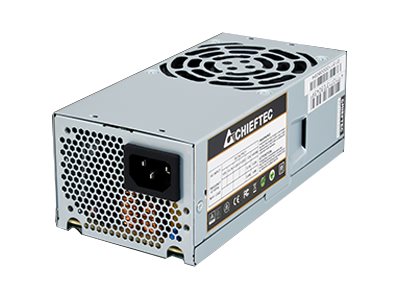

Chieftec Smart Series GPF-350P 350Watt
Chieftec Smart Series GPF-350P - Strømforsyning (intern) - TFX12V / ATX12V 2.3 - AC 115-230 V - 350 watt - aktiv PFC - sølv
I dag har systemintegratorer ikke kun brug for et holdbart og kvalitetsbevidst chassis til deres pc-samlebånd, men også en yderst pålidelig strømforsyningskilde. Chieftecs strømforsyningsenheder i Smart-serien opfylder disse og flere krav.
-
Product no 992025455
Model GPF-350P
Brand Chieftec Industrial
EAN 4710713234673
Weight 1.05 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Chieftec Smart Series GPF-350P - strømforsyning - 350 watt |
| Enhedstype | Strømforsyning - aktiv Power Factor Correction (PFC) - intern |
| Specifikationsoverensstemmelse | TFX12V / ATX12V 2.3 |
| Indgangspænding | AC 115-230 V |
| Udgangspænding | +3.3, +5, ±12 V |
| Strømkapacitet | 350 watt |
| Output Current | +5V - 16 A<br>+3.3V - 16 A<br>+12V1 - 15 A<br>+12V2 - 15 A<br>-12V - 0.3 A<br>+5VSB - 2 A |
| Output-stikforbindelser | 1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>1 x effekt ATX12V 4-pin stik<br>2 x 4-PIN intern strøm<br>2 x 15 pin Serial ATA strøm |
| Kølesystem | 80 mm ventilator |
| Farve | Sølv |
| Dimensioner (B x D x H) | 8.6 cm x 17.5 cm x 6.5 cm |
| Producentgaranti | 2 års garanti |
| General | |
|---|---|
| Color | Silver |
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| PSU Form Factor | TFX |
| Specification Compliance | TFX12V / ATX12V 2.3 |
| Power Device | |
| Efficiency | 85% |
| Frequency Required | 47 - 63 Hz |
| Input Voltage | AC 115-230 V |
| Output Current | +5V - 16 A | +3.3V - 16 A | +12V1 - 15 A | +12V2 - 15 A | -12V - 0.3 A | +5VSB - 2 A |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 350 Watt |
| Power Factor (PF) | 0.9 |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section | 1 x power 4 pin ATX12V connector | 2 x 4 pin internal power | 2 x 15 pin Serial ATA power |
| Miscellaneous | |
| Compliant Standards | TUV, CB, RoHS, ErP Ready |
| Cooling System | 80 mm fan |
| Features | Overvoltage protection, overload protection, undervoltage protection, short-circuit protection |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Dimensions & Weight | |
| Depth | 17.5 cm |
| Height | 6.5 cm |
| Width | 8.6 cm |
