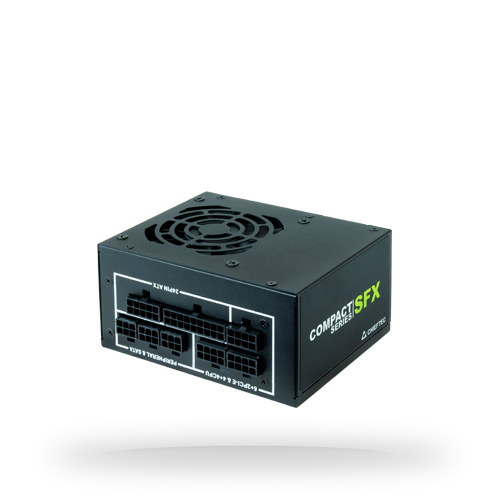

Chieftec Compact Series CSN-650C 650Watt 80 PLUS Gold
Chieftec Compact Series CSN-650C - Strømforsyning (intern) - ATX12V 2.3/ SFX12V - 80 PLUS Gold - AC 100-240 V - 650 Watt - aktiv PFC - sort
729,00 DKK
583,20 DKK excl. VAT
-
Product no 993129857
Model CSN-650C
Brand Chieftec Industrial
EAN 4710713235779
Weight 1.9 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Total effekt | 650 W |
| Vekselstrømsindgangsspænding | 100 - 240 V |
| Motherboard, strømstik | 20+4 pin ATX |
| Perifere (Molex) strømstik (4-pin) | 3 |
| Formål | PC |
| Strømforsyningenhed (PSU) formfaktor | SFX |
| 80 PLUS certificering | 80 PLUS Gold |
| General | |
|---|---|
| Color | Black |
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| PSU Form Factor | SFX |
| Specification Compliance | ATX12V 2.3/ SFX12V |
| Power Device | |
| 80 PLUS Certification | 80 PLUS Gold |
| Efficiency | 90%+ |
| Frequency Required | 50/60 Hz |
| Input Voltage | AC 100-240 V |
| Output Current | +5V - 15 A | +3.3V - 18 A | +12V1 - 54 A | -12V - 0.3 A | +5VSB - 3 A |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 650 Watt |
| Power Factor (PF) | 0.9 |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section | 6 x 15 pin Serial ATA power | 3 x 4 pin internal power | 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section | 2 x 8 pin PCI Express power with detachable 2 pin section | 1 x 4 pin mini-pow |
| Miscellaneous | |
| Compliant Standards | TUV, CB, RoHS, ERP |
| Cooling System | 80 mm fan |
| Features | Overheat protection, overcurrent protection, overvoltage protection, SLI ready, overload protection, undervoltage protection, short-circuit protection, CrossFireX ready |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Dimensions & Weight | |
| Depth | 10 cm |
| Height | 6.4 cm |
| Width | 12.5 cm |
