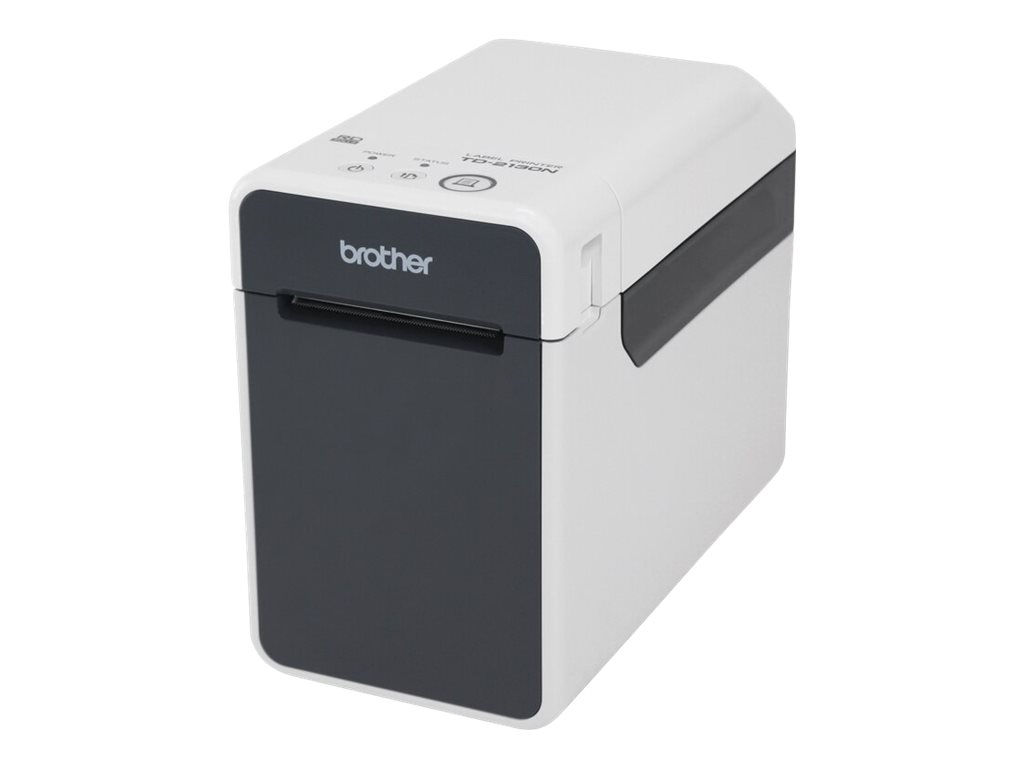

Brother TD-2130N Direct thermal

Brother TD-2130N - Etiketprinter - direkte termisk - Rulle (6,3 cm) - 300 dpi - op til 152.4 mm/sek. - USB 2.0, LAN, seriel, USB vært - skærer

1 309,00 DKK 1 047,20 DKK excl. VAT

Med en række specialiserede funktioner er TD-2130N den perfekte labelprinter til lager, logistik, produktion og detailhandel - plus enhver anden sektor, hvor du har brug for at udskrive kvitteringer eller labels på farten.

  • Product no 987671178

    Model TD2130NXX1

    Brand
    Go to brand's website

    EAN 4977766719711

    Weight 2.96 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse Brother TD-2130N - etiketprinter - S/H - direkte termisk
Printertype Etiketprinter - direkte termisk - S/H
Vægt 1.34 kg
Maks. mediestørrelse Rulle (6,3 cm)
Minimum Medie Størrelse (Almindelig) 19 mm
Max. mediestørelse (brugerdefineret) 63 mm
Maks. opløsning (S og H) 300 dpi
Skærer Ja
Grænseflade USB 2.0, LAN, seriel, USB vært
RAM installeret (maks.) 6 MB
Sprogsimulering EPSON ESC/P, ZPL II, EPSON ESC/P Raster
Stregkoder Kode 93, Kode 39, UCC/EAN-128, QR-kode, MaxiCode, Aztec-kode, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Coadabar, Code 128, PDF417, Data Matrix, ITF, Truncated PDF417, Micro QR kode
Medietype Kvitteringspapir, papir etikette, pressestempel skæreetikette, manchetmærkater
Kompatible bånd RD bånd
Skrifttyper Brussels, Helsinki, San Diego, Letter Gothic Bold
Stil & effekter Fed, Spejl
Egenskaber Black Mark-sensor, mellemrumssensor
Netværk Udskriftsserver
Systemkrav Microsoft Windows XP, Microsoft Windows Server 2003, Microsoft Windows 7, Microsoft Windows Vista, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Windows 8, Microsoft Windows Server 2012
Producentgaranti 3 års garanti
Dimensioner (B x D x H) 11.1 cm x 21.5 cm x 17.2 cm
General
Printer Type Label printer - direct thermal - monochrome
Printer
Auto Cutter Yes
Barcodes Code 93, Code 39, UCC/EAN-128, QR code, MaxiCode, Aztec code, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, PDF417, Data Matrix, ITF, Truncated PDF417, Micro QR code
Connectivity Technology Wired
Features Black Mark sensor, gap sensor
Fonts Brussels, Helsinki, San Diego, Letter Gothic Bold
Interface USB 2.0, LAN, serial, USB host
Language Simulation EPSON ESC/P, ZPL II, EPSON ESC/P Raster
Max Resolution (B&W) 300 dpi
Styles & Effects Bold, mirror
RAM
RAM Installed (Max) 6 MB
Media Handling
Compatible Tapes RD tape
Max Media Size Roll (6.3 cm)
Max Media Size (Custom) 63 mm
Max Printing Length 1 m
Max Printing Width 56 mm
Media Sizes Roll (6.3 cm)
Media Thickness Range 0.058 mm - 0.279 mm
Media Type Receipt paper, paper tag, die cut labels, wristband labels
Min Media Size (Custom) 19 mm
Roll Core Diameter 25.4 mm
Roll Maximum Outer Diameter 127 mm
Networking
Networking Print server
Expansion / Connectivity
Connections 1 x RS-232 - 9 pin D-Sub (DB-9) | 1 x USB 2.0 - 4 pin USB Type B | 1 x LAN - RJ-45 | 1 x USB 2.0 - 4 pin USB Type A
Miscellaneous
Cables Included 1 x USB cable
Power
Frequency Required 50/60 Hz
Software / System Requirements
OS Required Microsoft Windows XP, Microsoft Windows Server 2003, Microsoft Windows 7, Microsoft Windows Vista, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Windows 8, Microsoft Windows Server 2012
Software Included Driver
Manufacturer Warranty
Service & Support Limited warranty - 3 years
Environmental Parameters
Humidity Range Operating 20 - 80% (non-condensing)
Max Operating Temperature 40 °C
Min Operating Temperature 5 °C
Dimensions & Weight
Depth 21.5 cm
Height 17.2 cm
Weight 1.34 kg
Width 11.1 cm
