Product no 1001051733
Model BM-BDLKSTUDIO4K
Brand Blackmagic Design
EAN 9338716002539
Weight 0.166 kg

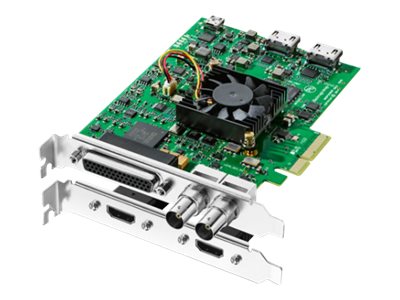

Produktbeskrivelse | Blackmagic DeckLink Studio 4K - videooptagelsesadapter - PCIe 2.0 x4 |
Enhedstype | Videooptagelsesadapter |
Grænsefladetype | PCIe 2.0 x4 |
Dimensioner (B x D x H) | 14.09 cm |
Vægt | 166 g |
Med indgangsadaptertilbehør | HDMI-bøjle |
Videoindgang | S-videoindgang, S-videoudgang, komposit videoindgang, komposit videoudgang, komponentvideoindgang, komponentvideoudgang, HD-SDI input, HD-SDI output, HDMI-indgang, HDMI-udgang |
Video Modes | 1080/24p, 1080/60i, 720/60p, 1080/50i, 720/50p, 1080/50p, 1080/60p, 1080/30p, 1080/25p, 2160/24p, 2160/25p, 2160/30p, 1080/24sF, 1080/25sF, 1080/30sF, 2160/50p |
Analogvideoformat | NTSC, PAL |
Analogvideosignal | S-Video, sammensat video, componentvideo |
Komprimeret video format | YUV 4:2:2, YUV 4:4:4 |
Digital videoformat | MPEG-2, DV, DVCPRO, DVCPRO50, AVCHD, HDV, DVCPRO HD, AVC-Intra, ProRes 422, DPX, XDCAM EX, XDCAM HD, XDCAM HD422, ProRes 4444, ProRes 422 HQ, ProRes LT, ProRes 422 Proxy |
Opløsning ved digital videooptagelse | 1920 x 1080, 3840 x 2160, 4096 x 2160, 2048 x 1080 |
Understøttelse af lydindgang | Standard |
Lydindgangsmodus | 24 bit - maks. målingshastighed: 48 kHz |
OS nødvendig | Microsoft Windows 7 / 8 / 8.1 / 10 (64 bit), Apple MacOS X 10.11 eller nyere, Apple macOS Sierra 10.12, Apple macOS High Sierra 10.13 |
Producentgaranti | 3 års garanti |
General | |
---|---|
Device Type | Video capture adapter |
Interface Type | PCIe 2.0 x4 |
Weight | 166 g |
Width | 14.09 cm |
Video | |
Analog Video Format | NTSC, PAL |
Analog Video Signal | S-Video, composite video, component video |
Audio Input Support | Standard |
Audio Sampling Format | Stereo 24-bit / 48 kHz |
Digital Video Capture Resolution | 1920 x 1080, 3840 x 2160, 4096 x 2160, 2048 x 1080 |
Digital Video Format | MPEG-2, DV, DVCPRO, DVCPRO50, AVCHD, HDV, DVCPRO HD, AVC-Intra, ProRes 422, DPX, XDCAM EX, XDCAM HD, XDCAM HD422, ProRes 4444, ProRes 422 HQ, ProRes LT, ProRes 422 Proxy |
Interface Type | S-video input, S-video output, composite video input, composite video output, component video input, component video output, HD-SDI input, HD-SDI output, HDMI input, HDMI output |
Video Compression Format | YUV 4:2:2, YUV 4:4:4 |
Video Modes | 1080/24p, 1080/60i, 720/60p, 1080/50i, 720/50p, 1080/50p, 1080/60p, 1080/30p, 1080/25p, 2160/24p, 2160/25p, 2160/30p, 1080/24sF, 1080/25sF, 1080/30sF, 2160/50p |
Audio Input | |
Data Width | 24-bit |
Max Sample Rate | 48 kHz |
Expansion / Connectivity | |
Compatible Slots | 1 x PCI Express 2.0 x4 |
Interfaces | 1 x audio / video - 6G-SDI input | 1 x audio / video - 6G-SDI output | 1 x audio / video - HDMI input | 1 x audio / video - HDMI output | 1 x management - RS-422 |
Miscellaneous | |
Cables Included | Breakout cable |
Compliant Standards | C-Tick, FCC |
Included Accessories | HDMI bracket |
Power | |
Power Consumption Operational | 22 Watt |
Software / System Requirements | |
OS Required | Microsoft Windows 7 / 8 / 8.1 / 10 (64 bits), Apple MacOS X 10.11 or later, Apple macOS Sierra 10.12, Apple macOS High Sierra 10.13 |
Software Included | Drivers & Utilities, Blackmagic Media Express, Blackmagic Disk Speed Test, Blackmagic LiveKey, Blackmagic Desktop Video Utility |
Manufacturer Warranty | |
Service & Support | Limited warranty - 3 years |
Environmental Parameters | |
Humidity Range Operating | 0 - 90% (non-condensing) |
Max Operating Temperature | 40 °C |
Min Operating Temperature | 5 °C |
