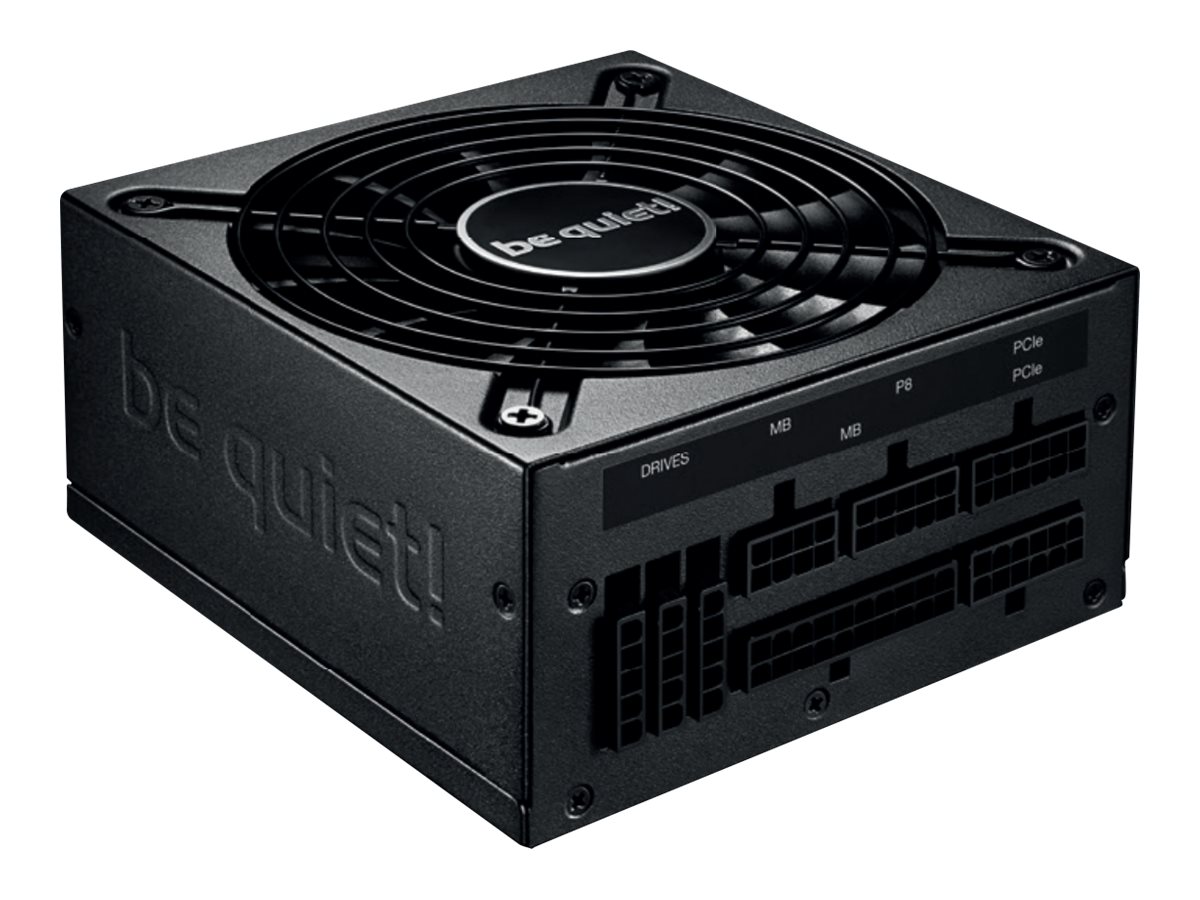

be quiet! SFX-L Power 600W 600Watt 80 PLUS Gold
be quiet! SFX-L Power 600W - Strømforsyning (intern) - ATX12V 2.4/ SFX12V 3.3 - 80 PLUS Gold - AC 100-240 V - 600 Watt - aktiv PFC - Europa - sort
vær stille! SFX L Power 600W anbefales især til mini ITX-pc'er og kompakte gaming-systemer. Den præsterer langt ud over det sædvanlige med en fantastisk kombination af støjsvaghed, funktioner, pålidelighed og effektivitet.
-
Product no 993934506
Model BN239
Brand Listan
EAN 4260052187135
Weight 2.04 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | be quiet! SFX-L Power 600W - strømforsyning - 600 Watt |
| Enhedstype | Strømforsyning - aktiv Power Factor Correction (PFC) - intern |
| Specifikationsoverensstemmelse | ATX12V 2.4/ SFX12V 3.3 |
| 80 PLUS certificering | 80 PLUS Gold |
| Lokalisering | Europa |
| Indgangspænding | AC 100-240 V |
| Udgangspænding | +3.3, +5, ±12 V |
| Strømkapacitet | 600 Watt |
| Output Current | +3.3V - 22 A<br>+5V - 22 A<br>+12V - 50 A<br>-12V - 0.3 A<br>+5VSB - 3 A |
| Output-stikforbindelser | 1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>1 x strøm 8 pin +12 V med aftagelig 4 pin sektion<br>4 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion<br>3 x 4-PIN intern strøm<br>6 x 15 pin Serial ATA strøm |
| Modulær Kabel Administration | Ja |
| Kølesystem | 120 mm ventilator |
| Udstyr inkluderet | SFX to ATX bracket |
| Farve | Sort |
| Dimensioner (B x D x H) | 12.5 cm x 13 cm x 6.4 cm |
| Miljømæssige standarder | ENERGY STAR |
| Producentgaranti | 3 års garanti |
| General | |
|---|---|
| Color | Black |
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Localization | Europe |
| PSU Form Factor | SFX |
| Specification Compliance | ATX12V 2.4/ SFX12V 3.3 |
| Power Device | |
| 80 PLUS Certification | 80 PLUS Gold |
| Efficiency | 92% |
| Frequency Required | 50 - 60 Hz |
| Input Voltage | AC 100-240 V |
| Modular Cable Management | Yes |
| Output Current | +3.3V - 22 A | +5V - 22 A | +12V - 50 A | -12V - 0.3 A | +5VSB - 3 A |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 600 Watt |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section | 1 x power 8 pin +12V with detachable 4 pin section | 4 x 8 pin PCI Express power with detachable 2 pin section | 3 x 4 pin internal power | 6 x 15 pin Serial ATA power |
| Miscellaneous | |
| Compliant Standards | TUV, FCC, ERP, EAC |
| Cooling System | 120 mm fan |
| Features | Overheat protection, overcurrent protection, overvoltage protection, overpower protection, undervoltage protection, short-circuit protection, single 12V rail, Multi-GPU Technologies Supported, DC-DC technology, Synchronous Rectifier (SR) technology, |
| Included Accessories | SFX to ATX bracket |
| MTBF | 100,000 hours |
| Environmental Standards | |
| ENERGY STAR | Yes |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Sound Emission | 28.5 dBA |
| Dimensions & Weight | |
| Depth | 13 cm |
| Height | 6.4 cm |
| Width | 12.5 cm |
