Product no 1000606706
Model 02483-001
Brand Axis Communications
EAN 7331021078178
Weight 0.205 kg

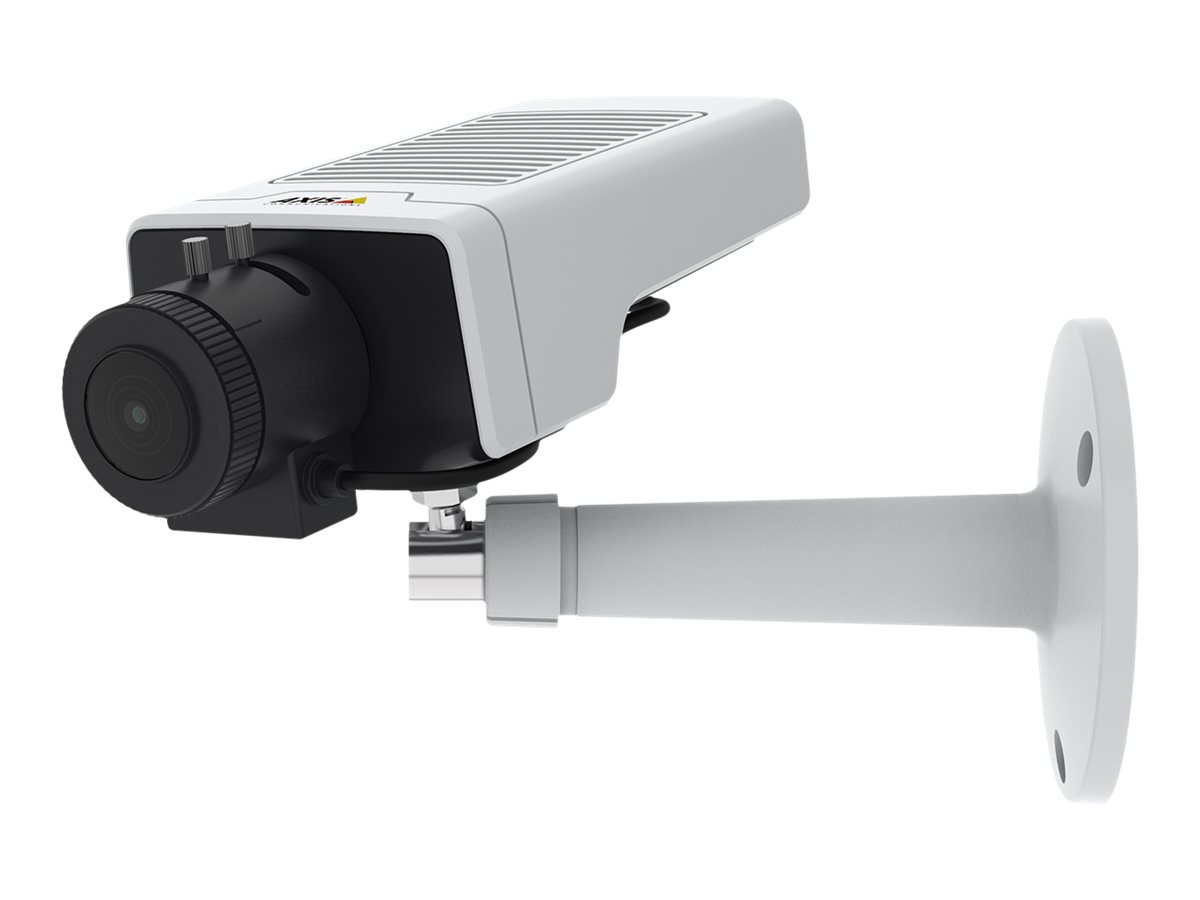

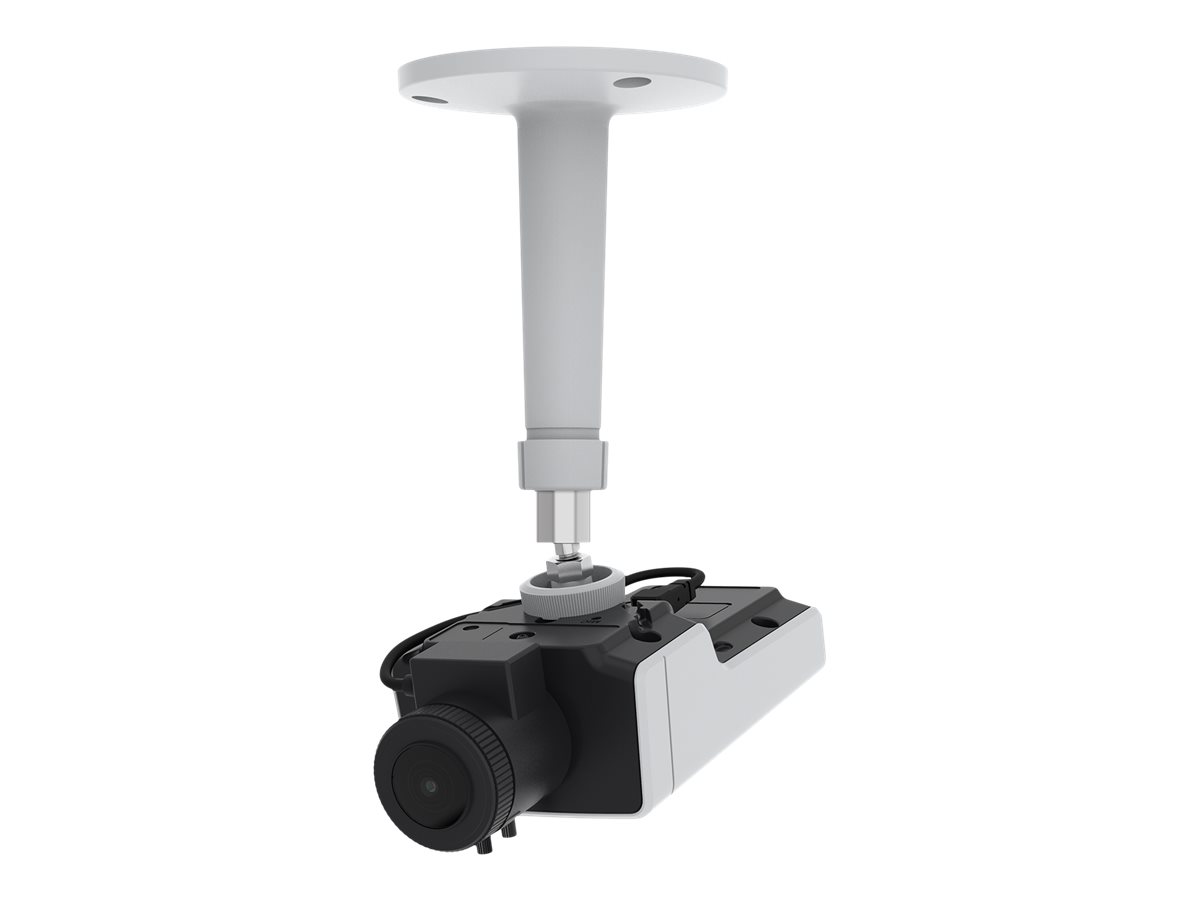

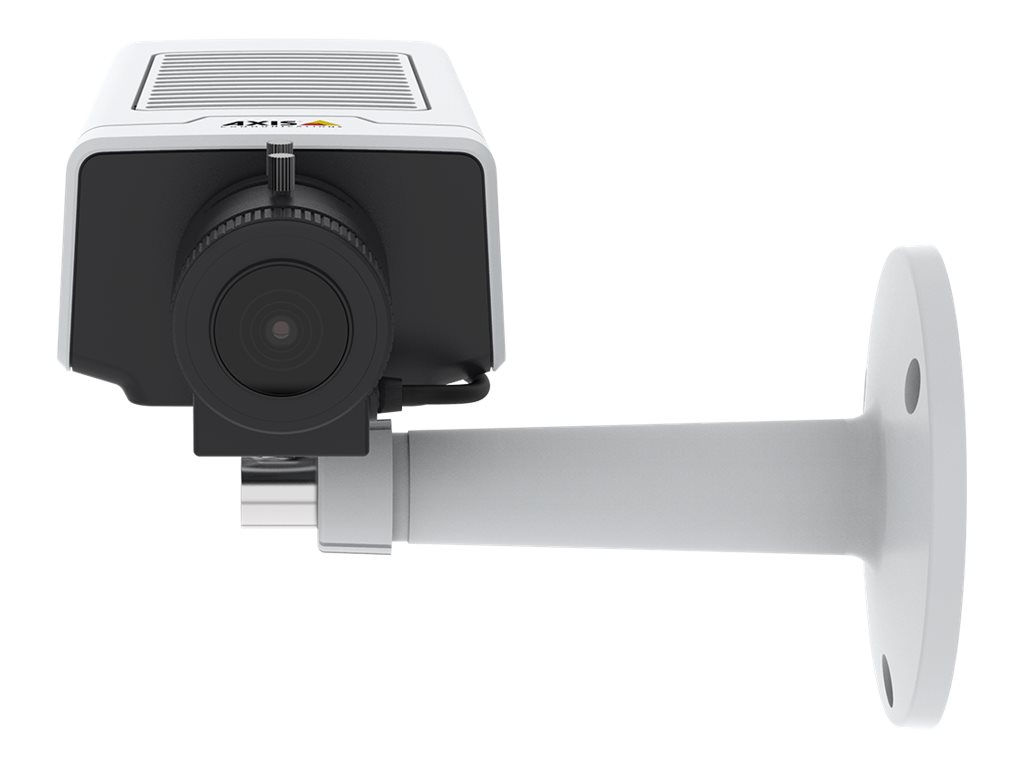

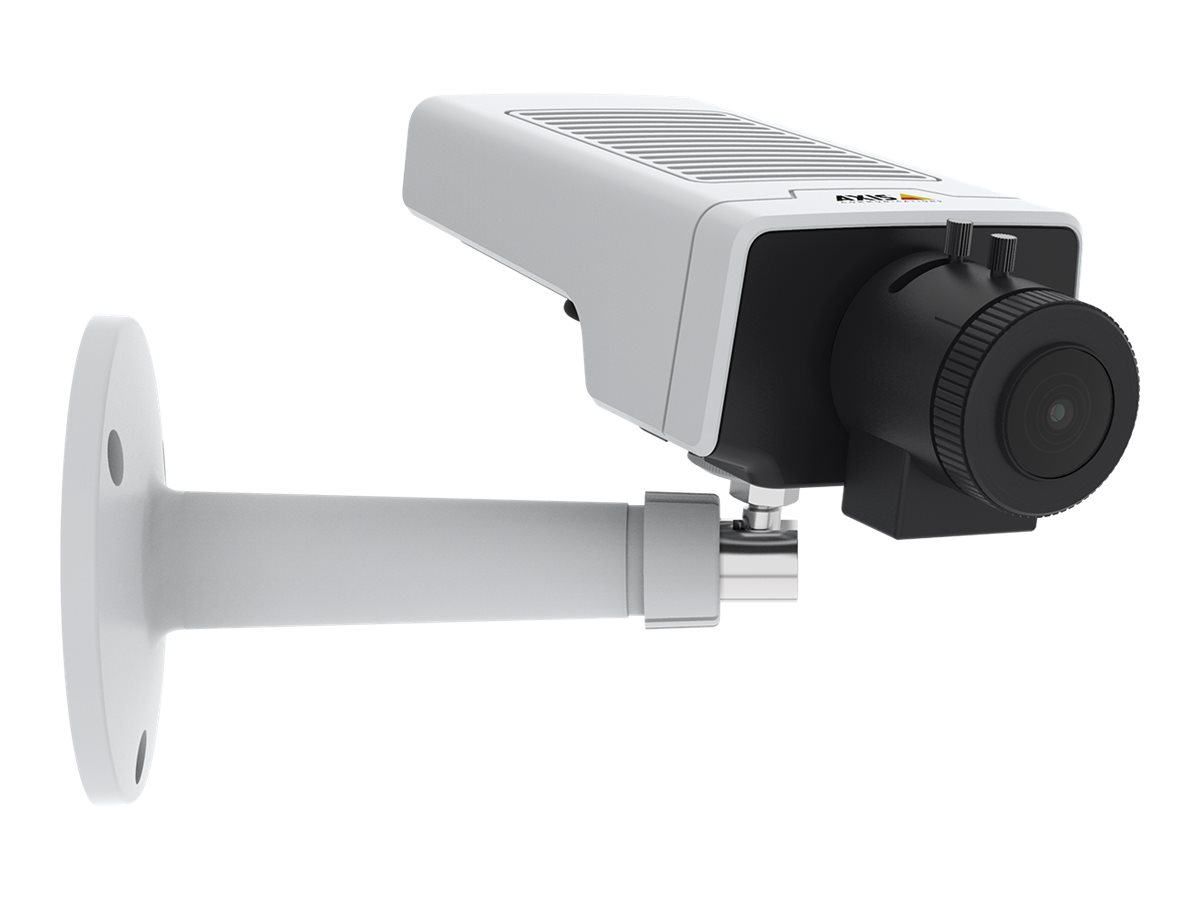

Produktbeskrivelse | AXIS M1135 MK II - netværksovervågningskamera - boks |
Enhedstype | Netværksovervågningskamera - fast - boks |
Audio | Ja: indbygget mikrofon, tovejs audio via kant til kant-teknologi |
Dimensioner (B x D x H) | 7 cm x 14.8 cm x 4.6 cm |
Vægt | 205 g |
Farve | Sort, hvid, NCS S 1002-B, NCS S 9000-N |
Connectivity teknologi | Med ledning |
Kamera | Farve - Dag/nat |
Optisk zoom | 3.5 x |
Maksimum opløsning | 1920 x 1080 |
Billedhastighed (maks.) | 30 frames pr. sekund |
Bevægelsesdetektion | Ja |
Video Modes | 1080p |
Billedsensortype | PS RGB CMOS - 1/2.9" - 2 MP |
Minimumbelysning | 0.15 lux - farve - F1.4 - 50 IRE<br>0.03 lux - S/H - F1.4 - 50 IRE<br>0.1 lux - farve - F1.4 - 30 IRE<br>0.02 lux - S/H - F1.4 - 30 IRE |
Brændviddekontrol | Forskellige brændvidder |
Brændvidde | 3 mm - 10.5 mm |
Objektivmontering | CS-montering |
Objektiv Iris | F/1.4 - automatisk irisblænder (DC) |
Interface | Ethernet 10Base-T/100Base-TX |
Spænding | DC 10 - 28 V / PoE Plus Class 3 |
Egenskaber | Skarphedskontrol, hvidbalance, farvekontrol, lysstyrkekontrol, kontrastkontrol, spejlbillede, infrarød skære filter, Privacy Mask Function, NAS-Ready, Lightfinder-teknologi, digital PTZ-funktion, kodeordsbeskyttelse, forvrængningskorrektionsfunktion, IR-korrigeret objektiv, auto-kontroltilegnelse, ONVIF (Profil S) support, ONVIF (Profile G) support, billedskabelon, eksponeringskontrol, Pixel Counter Support, digest-autentificering, Vehicle Detection, Forensic WDR, IP-adressefiltrering, eksponeringszone, HTTP-kryptering, menneskedetektion, simplex audio, underskrevet firmware, sikker støvle, Corridor-tilstand, ONVIF (Profile T) support, VAPIX support, kompression, tekstskabelon, 180° billedrotation, 90° billedrotation, 270° billedrotation, brugeradgangslog, råstyrkeforsinkelsesbeskyttelse, Maskinlærings-behandlingsenhed (MLPU), ONVIF (Profile M) support, Axis Edge Vault, Axis-enheds-ID, sikker keystore, fintuning af opførsel ved lavt lys, billedformat-korrektion |
Producentgaranti | 5 års garanti |
Miljømæssige parametre (operativ) | -20 °C - 50 °C; 10 - 85% RH (non-condensing) relativ luftfugtighed |
General | |
---|---|
Audio Formats | G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS |
Audio Support | Yes: built-in microphone, two-way audio via edge-to-edge technology |
Connectivity Technology | Wired |
Depth | 14.8 cm |
Device Type | Network surveillance camera |
Form Factor | Box |
Height | 4.6 cm |
Localization | Argentina, Australia, China, Japan, Brazil, United Kingdom, United States, Europe |
Weight | 205 g |
Width | 7 cm |
Camera | |
Digital Video Capture Resolution | 1920 x 1080, 160 x 90 |
Digital Video Format | MJPEG, H.264, AVC, HEVC, H.265, MPEG-4 Part 10, MPEG-H Part 2 |
Exposure Range | 2 sec - 1/33500 sec |
Features | Sharpness control, white balance, color control, brightness control, contrast control, image mirror, infrared cut filter, Privacy Mask Function, NAS-Ready, Lightfinder technology, digital PTZ function, password protection, distortion correction funct |
Flash Memory | 512 MB |
Frame Rate (max) | 30 frames per second |
Max Digital Video Resolution | 1920 x 1080 |
Minimum Illumination | 0.15 lux - color - F1.4 - 50 IRE | 0.03 lux - B&W - F1.4 - 50 IRE | 0.1 lux - color - F1.4 - 30 IRE | 0.02 lux - B&W - F1.4 - 30 IRE |
Motion Detection | Yes |
RAM | 1 GB |
Type | Color - Day&Night - fixed |
Video Modes | 1080p |
Image Sensor | |
Type | 2 MP PS RGB CMOS 1/2.9" |
Lens Construction | |
Focal Length | 3 mm - 10.5 mm |
Horizontal Field of View (degree) | 33 - 90 |
Lens Iris | F/1.4 auto iris (DC) |
Optical Zoom | 3.5 x |
Type | CS-mount - vari-focal |
Vertical Field of View (degree) | 19 - 49 |
Interfaces | |
Network Interface | Ethernet 10Base-T/100Base-TX |
Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, QOS, IGMPv2, IGMPv3, CIFS, SRTP, SFTP, LLDP, Zeroconf, USGv6, MQTT, CDP, Syslog |
Expansion / Connectivity | |
Ports | LAN/power - RJ-45 | Audio line-in/microphone - 3.5 mm jack | Digital input/output - terminal block |
Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
Miscellaneous | |
Color | Black, white, NCS S 1002-B, NCS S 9000-N |
Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EMC, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, VCCI Class A, EN 50581, RCM, AS/NZS CISPR 32 Class A, EN 55032 Class A, I |
Included Accessories | AXIS T91A11 stand (white) |
Power | |
Power Requirements | DC 10 - 28 V / PoE Plus Class 3 |
Software / System Requirements | |
Software Included | Windows decoder 1-user license, AXIS Video Motion Detection, AXIS Object Analytics |
Manufacturer Warranty | |
Service & Support | Limited warranty - 5 years |
Environmental Parameters | |
Max Operating Temperature | 50 °C |
Min Operating Temperature | -20 °C |
Relative Humidity (operating) | 10 - 85% RH (non-condensing) |
