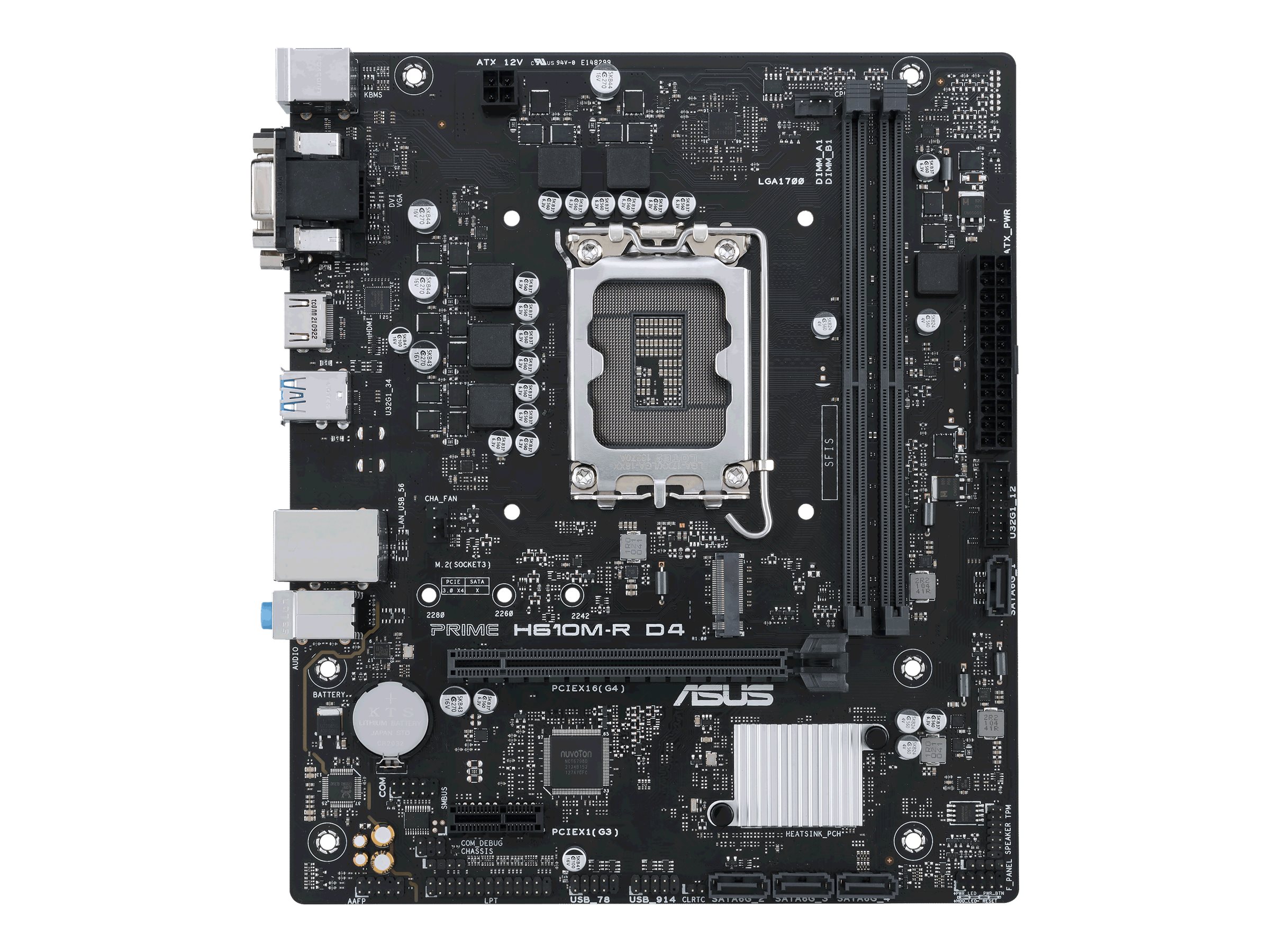

ASUS PRIME H610M-R D4 Micro-ATX LGA1700 Intel H610
ASUS PRIME H610M-R D4 - Bundkort - micro-ATX - LGA1700 sokkel - H610 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
629,00DKK503,20DKK excl. VAT
-
Product no 1000532095
Model 90MB1B40-M0ECY0
Brand ASUSTeK COMPUTER
Go to brand's websiteEAN 4711081758372
Weight 0.77 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | ASUS PRIME H610M-R D4 - bundkort - micro-ATX - LGA1700 sokkel - H610 |
| Produkttype | Bundkort - micro-ATX |
| Chipsættype | Intel H610 |
| Processor-socket | 1 x LGA1700 sokkel |
| Kompatible processorer | (understøtter 12. Generation Intel Core / Pentium Gold / Celeron) |
| Max RAM-størrelse | 64 GB |
| RAM understøttet | 2 DIMM slots - DDR4, ikke-ECC, ikke bufferet |
| Lagringsporte | 4 x SATA-600, 1 x M.2 |
| USB / FireWire porte | 2 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser) |
| Audio | HD Audio (8-kanaler) |
| LAN | Gigabit Ethernet |
| General | |
|---|---|
| Chipset Type | Intel H610 |
| Compatible Processors | (supports 12th Generation Intel Core / Pentium Gold / Celeron) |
| Max Processors Qty | 1 |
| Processor Socket | LGA1700 Socket |
| Product Type | Motherboard - micro ATX |
| Supported RAM | |
| Bus Clock | 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3200 MHz |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Max Size | 64 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC |
| Technology | DDR4 |
| Audio | |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| LAN | |
| Network Interfaces | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU | 2 x DIMM 288-pin | 1 x PCIe 4.0 x16 | 1 x PCIe 3.0 x1 |
| Interfaces | 1 x HDMI | 1 x VGA | 1 x LAN (Gigabit Ethernet) | 2 x USB 3.2 Gen 1 | 2 x USB 2.0 | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x audio line-in - mini-jack | 1 x PS/2 keyboard | 1 x DVI-D | 1 x PS/2 mouse |
| Internal Interfaces | 4 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x audio - header | 1 x serial - header | 1 x parallel - header | 1 x speaker - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA | PCIe 3.0 -connectors: 1 x M.2 |
| Features | |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3 |
| BIOS Type | AMI |
| Hardware Features | Jack retasking, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASU |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Miscellaneous | |
| Cables Included | 2 x Serial ATA cable |
| Depth | 19.3 cm |
| Included Accessories | I/O back plate, 1 x M.2 anchor |
| Software Included | Drivers & utilities, ASUS CPU-Z, ASUS AI Suite III, ASUS EZ Flash 3, WinRAR, Norton AntiVirus (Trial) |
| Width | 22.6 cm |
