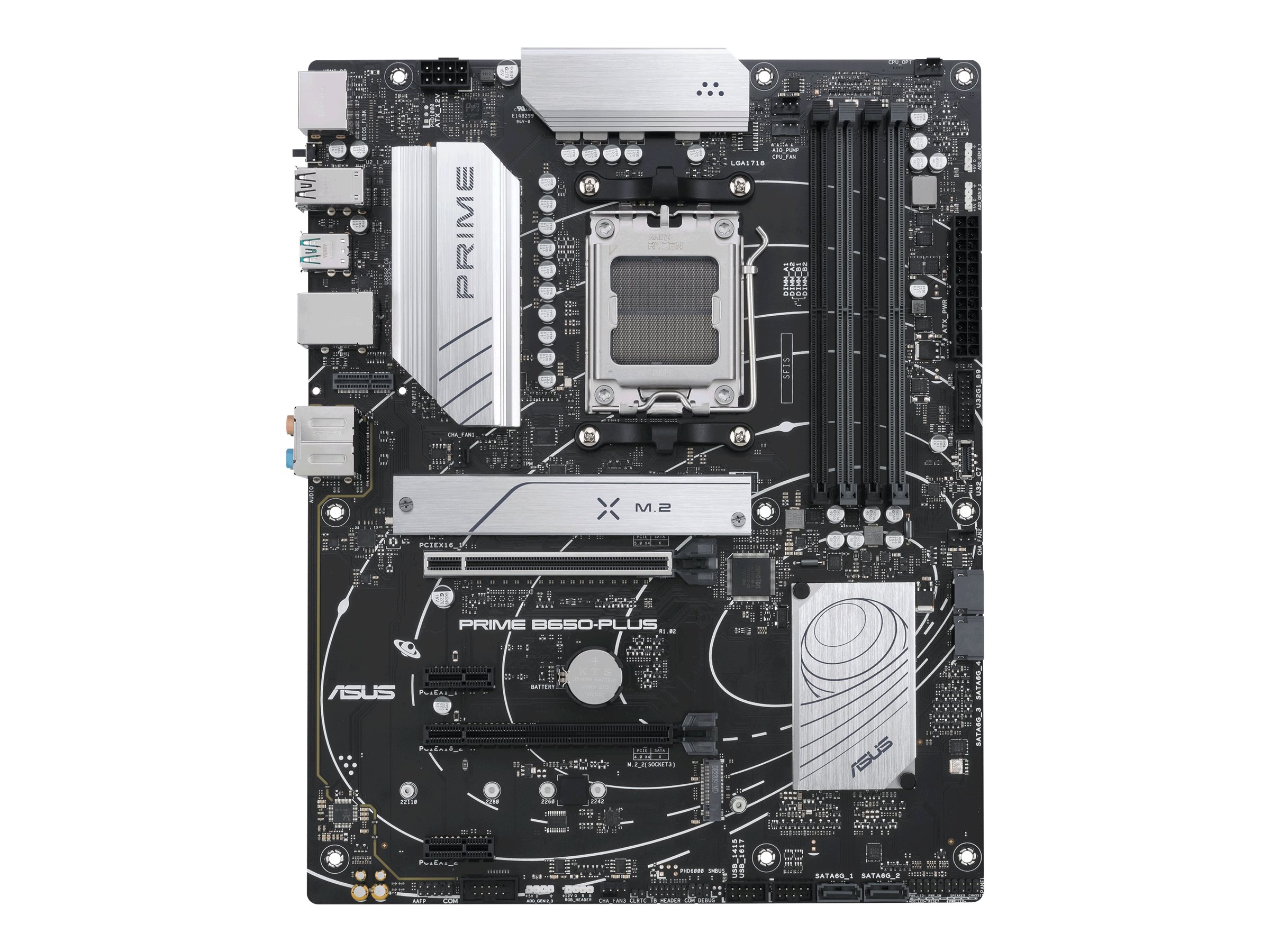

ASUS Prime B650-Plus-CSM ATX AM5 AMD B650

ASUS Prime B650-Plus-CSM - Bundkort - ATX - Socket AM5 - AMD B650 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
1 559,00DKK1 247,20DKK excl. VAT
  • Product no 1000805471

    Model 90MB1BS0-M0EAYC

    Brand ASUSTeK COMPUTER
    Go to brand's website

    EAN 4711081923411

    Weight 1.57 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse ASUS Prime B650-Plus-CSM - bundkort - ATX - Socket AM5 - AMD B650
Produkttype Bundkort - ATX
Chipsættype AMD B650
Processor-socket 1 x Socket AM5
Kompatible processorer Ryzen (understøtter Ryzen 7000 Series)
Max RAM-størrelse 128 GB
RAM understøttet 4 DIMM åbninger - DDR5, ikke-ECC, on-die ECC, ikke bufferet
Lagringsporte 4 x SATA-600 (RAID), 2 x M.2
USB / FireWire porte 1 x USB-C 3.2 Gen 2 + 3 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio HD Audio (8-kanaler)
LAN 2.5 Gigabit Ethernet
Producentgaranti 1 års garanti
General
Chipset Type AMD B650
Compatible Processors Ryzen (supports Ryzen 7000 Series)
Max Processors Qty 1
Processor Socket Socket AM5
Product Type Motherboard - ATX
Supported RAM
Bus Clock 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 5200 MHz, 5000 MHz
Features Dual channel memory architecture, AMD EXPO technology
Max Size 128 GB
Registered or Buffered Unbuffered
Supported RAM Integrity Check Non-ECC, on-die ECC
Technology DDR5
Audio
Compliant Standards High Definition Audio
Type HD Audio (8-channel)
LAN
Network Interfaces 2.5 Gigabit Ethernet
Expansion / Connectivity
Expansion Slots 1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 4.0 x16 | 1 x PCIe 4.0 x16 (x4 mode) | 2 x PCIe 4.0 x1 | 2 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) | 1 x M.2 socket (Key E)
Interfaces 1 x HDMI | 1 x DisplayPort | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x audio line-out (center/subwoofer) - mini-jack | 1 x audio line-out (rear) - mini-jack | 1 x audio line-in - mini-jack | 1 x LAN (2.5Gigabit Ethernet) | 1 x
Internal Interfaces 4 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x USB-C 3.2 Gen 1 - header | 1 x serial - header | 1 x audio - header | 1 x Thunderbolt - header | 1 x SPI - header
Power Connectors 24-pin main power connector, 8-pin ATX12V connector
Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 | PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10
Features
BIOS Features UEFI BIOS, ASUS EZ Flash 3
BIOS Type AMI
Hardware Features Jack retasking, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Fan Xpert 2+, 6 Layer PCB, overvoltage protection, ASUS 5X Protecti
Sleep / Wake Up Wake on LAN (WOL), wake on PME
Miscellaneous
Cables Included 2 x Serial ATA cable
Compliant Standards VCCI Class B ITE, FCC Part 15 Class B, DisplayPort 1.4, EU RoHS, EU REACH
Depth 24.4 cm
Included Accessories 1 x M.2 screw, IO shield, 1 x M.2 rubber package, ACC Express Activation Key Card
Software Included ASUS CPU-Z, ASUS AI Suite III, PC Cleaner, WinRAR, Norton AntiVirus (Trial), ASUS AURA Creator, ASUS Control Center Express, Armoury Crate, ASUS Fan Xpert 2+
Width 30.5 cm
Manufacturer Warranty
Service & Support Limited warranty - 1 year
