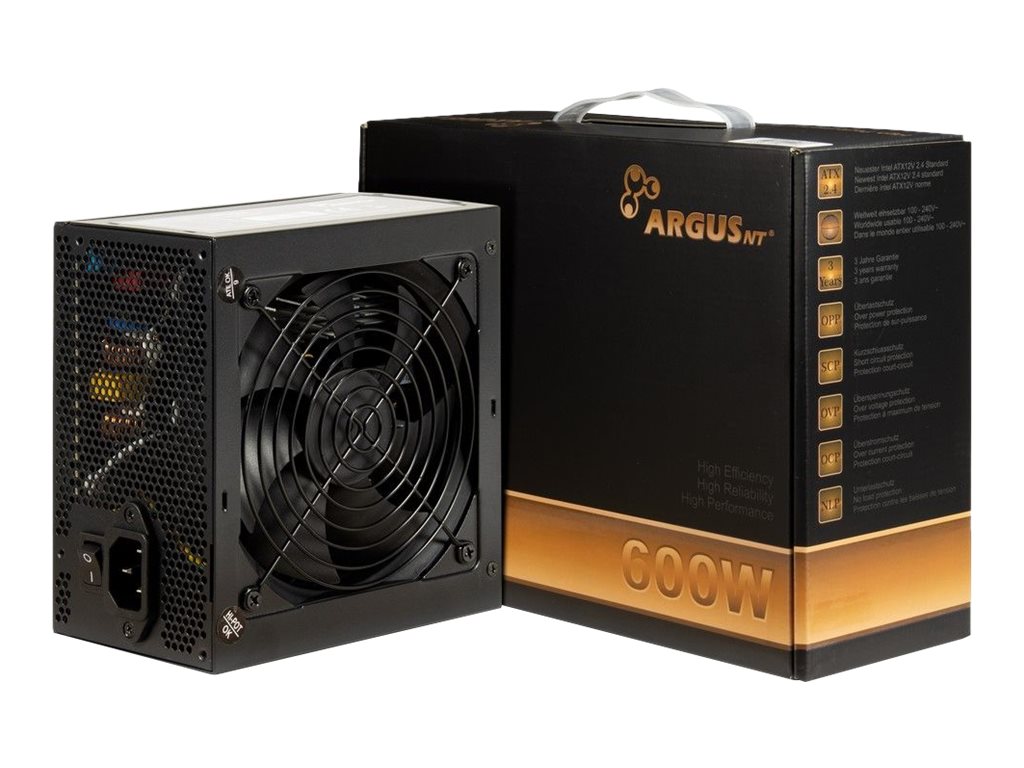

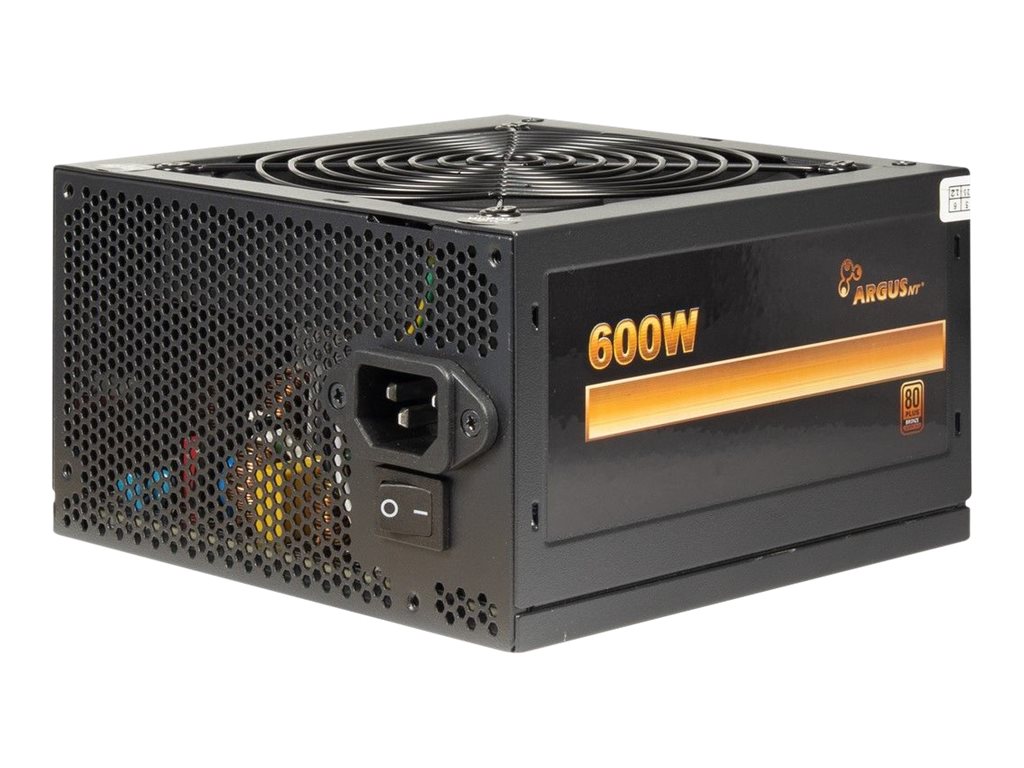

Argus BPS-600 Strømforsyning 600Watt
Argus BPS-600 - Strømforsyning (intern) - ATX12V 2.4 - 80 PLUS Bronze - AC 100/240 V - 600 Watt - aktiv PFC
349,00DKK279,20DKK excl. VAT
-
Product no 999027960
Model 88882178
Brand Inter-Tech Elektroni
EAN 4260455645256
Weight 2.13 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Argus BPS-600 - strømforsyning - 600 Watt |
| Enhedstype | Strømforsyning - aktiv Power Factor Correction (PFC) - intern |
| Specifikationsoverensstemmelse | ATX12V 2.4 |
| 80 PLUS certificering | 80 PLUS Bronze |
| Vægt | 1.77 kg |
| Indgangspænding | AC 100/240 V |
| Udgangspænding | +3.3, +5, ±12 V |
| Strømkapacitet | 600 Watt |
| Output Current | +12V - 50 A<br>+3.3V - 15 A<br>+5V - 15 A<br>-12V - 0.3 A<br>+5VSB - 2.5 A |
| Output-stikforbindelser | 1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>2 x strøm 8 pin +12 V med aftagelig 4 pin sektion<br>4 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion<br>6 x 15 pin Serial ATA strøm<br>3 x 4-PIN intern strøm<br>1 x 4-PIN mini-strømforsyningsforbinder |
| Kølesystem | 120 mm ventilator |
| Udstyr inkluderet | Skruer, kabelbånd |
| Dimensioner (B x D x H) | 15 cm x 14 cm x 8.6 cm |
| Producentgaranti | 3 års garanti |
| General | |
|---|---|
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| PSU Form Factor | ATX |
| Specification Compliance | ATX12V 2.4 |
| Power Device | |
| 80 PLUS Certification | 80 PLUS Bronze |
| Efficiency | 82.6% at 20% Load, 86.9% at 20% Load, 88.7% at 50% Load, 85.6% at 100% Load |
| Frequency Required | 47 - 63 Hz |
| Input Voltage | AC 100/240 V |
| Output Current | +12V - 50 A | +3.3V - 15 A | +5V - 15 A | -12V - 0.3 A | +5VSB - 2.5 A |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 600 Watt |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section | 2 x power 8 pin +12V with detachable 4 pin section | 4 x 8 pin PCI Express power with detachable 2 pin section | 6 x 15 pin Serial ATA power | 3 x 4 pin internal power | 1 x 4 pin mini-power connec |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS, WEEE |
| Cooling System | 120 mm fan |
| Features | Overcurrent protection, overvoltage protection, short-circuit protection, thermal protection |
| Included Accessories | Screws, cable ties |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Dimensions & Weight | |
| Depth | 14 cm |
| Height | 8.6 cm |
| Weight | 1.77 kg |
| Width | 15 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 2.13 kg |
