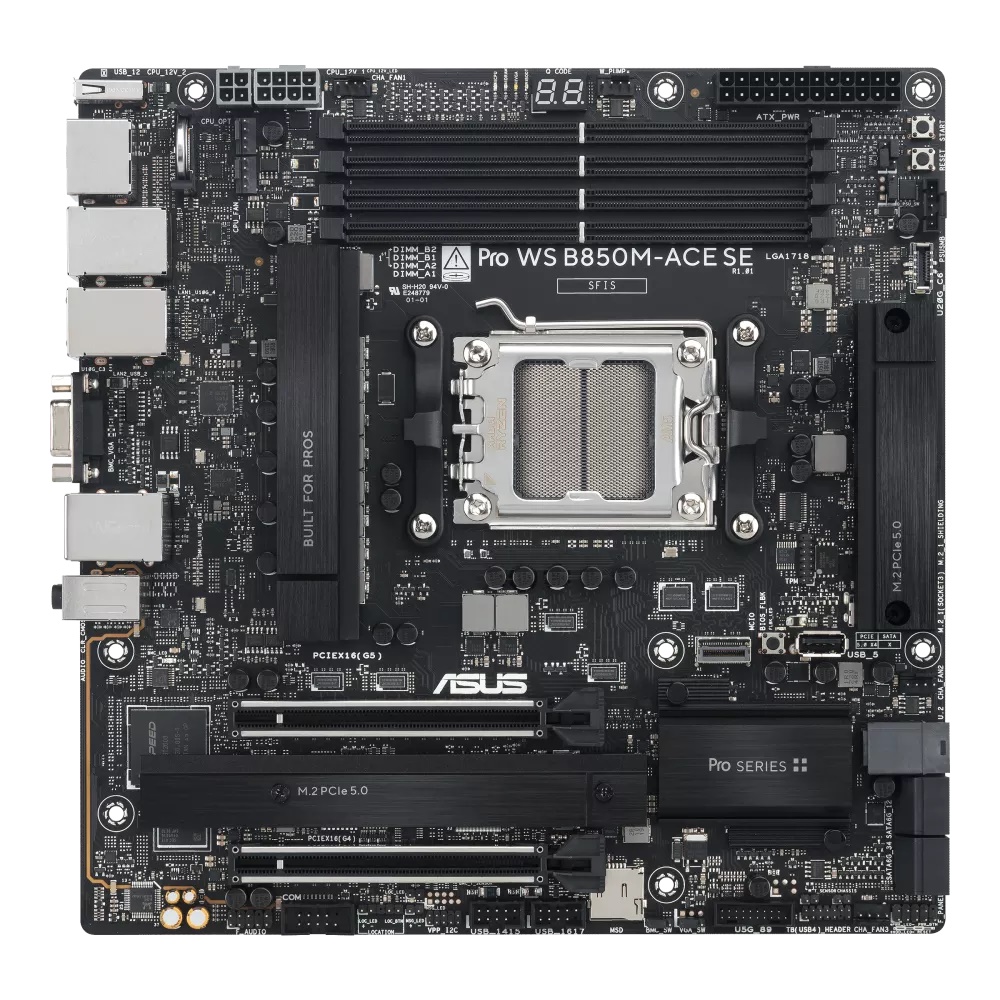

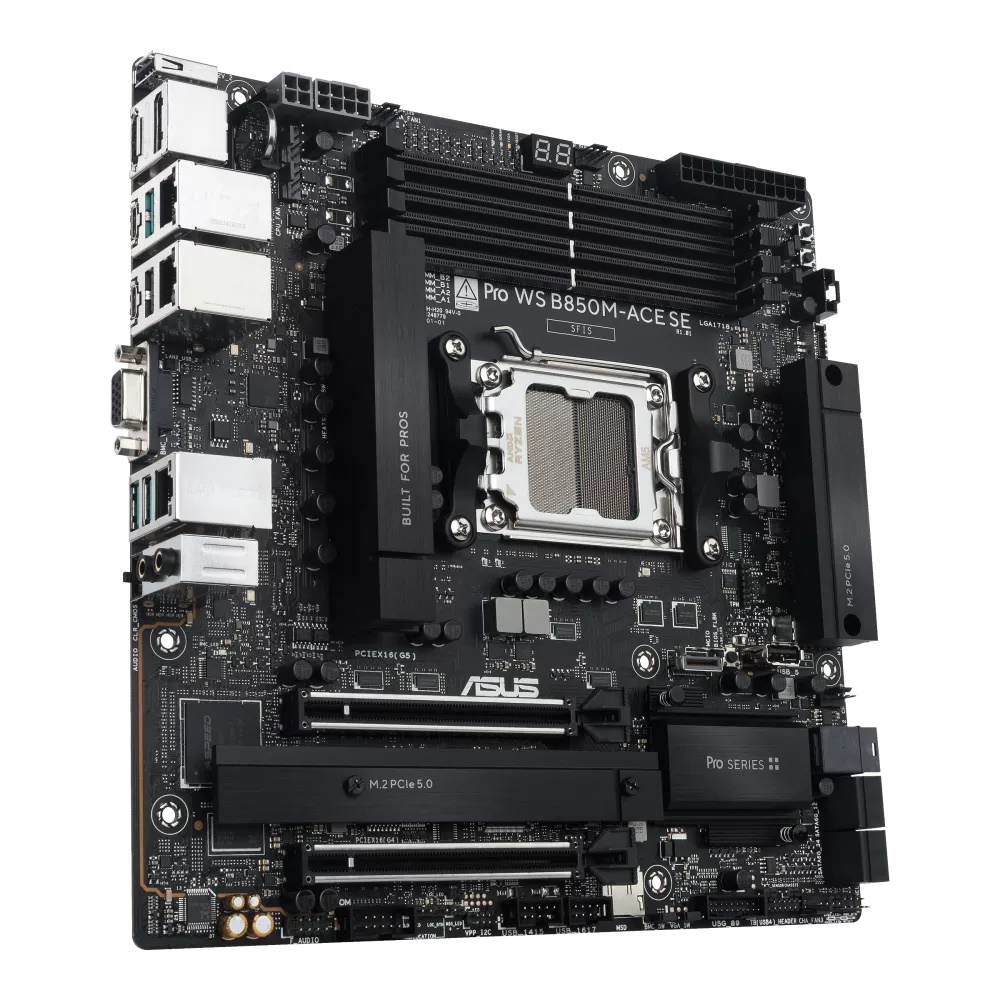

ASUS Pro WS B850M-ACE SE mATX AM5

ASUS Pro WS B850M-ACE SE - bundkort - micro ATX - Socket AM5 - AMD B850 Chipset - USB 3.2 Gen 2x2 USB 3.2 Gen 2 - 2x Ethernet 10Gbps, 2.5Gb - IPMI 1Gb - HD Audio (8-kanaler)

2 999,00 DKK 2 399,20 DKK excl. VAT

  • Product no 1003739436

    Model 90MB1MN0-M0EAY0

    Brand ASUSTeK COMPUTER
    Go to brand's website

    EAN 4711636258753

    Weight 1.38 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
CPU AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors and AMD EPYC™ 4005 Series Processors
Chipset AMD B850 Chipset
Memory 4x DIMM slots, max. 256GB, DDR5 (Dual channel)
Graphics 1x DisplayPort 1.4, 1x VGA port from AST2600, 1x HDMI 2.1, 1x USB 10Gbps port (USB Type-C®) supports DisplayPort video output
Expansion Slots 1x PCIe 5.0 x16 slot (supports x16 mode), 1x PCIe 4.0 x16 slot (supports x8/x4 mode), 1x PCIe 4.0 x16 slot (supports x4 mode)
Storage 2x M.2 slots, 1x MCIO connector, 1x U.2 connector and 4x SATA 6Gb/s ports
Ethernet 1x Realtek 10Gb Ethernet, 1x Intel® 2.5Gb Ethernet, 1x Realtek 1Gb Ethernet
USB Rear 5x USB 10Gbps port(s) (3 x Type-A + 2 x USB Type-C®), 2x USB 2.0 port(s) (2 x Type-A)
USB Front 1x USB 20Gbps (supports USB Type-C®), 1x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports, 2x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports, 1x USB 2.0 port (1 x Type-A) for BIOS FlashBack
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC

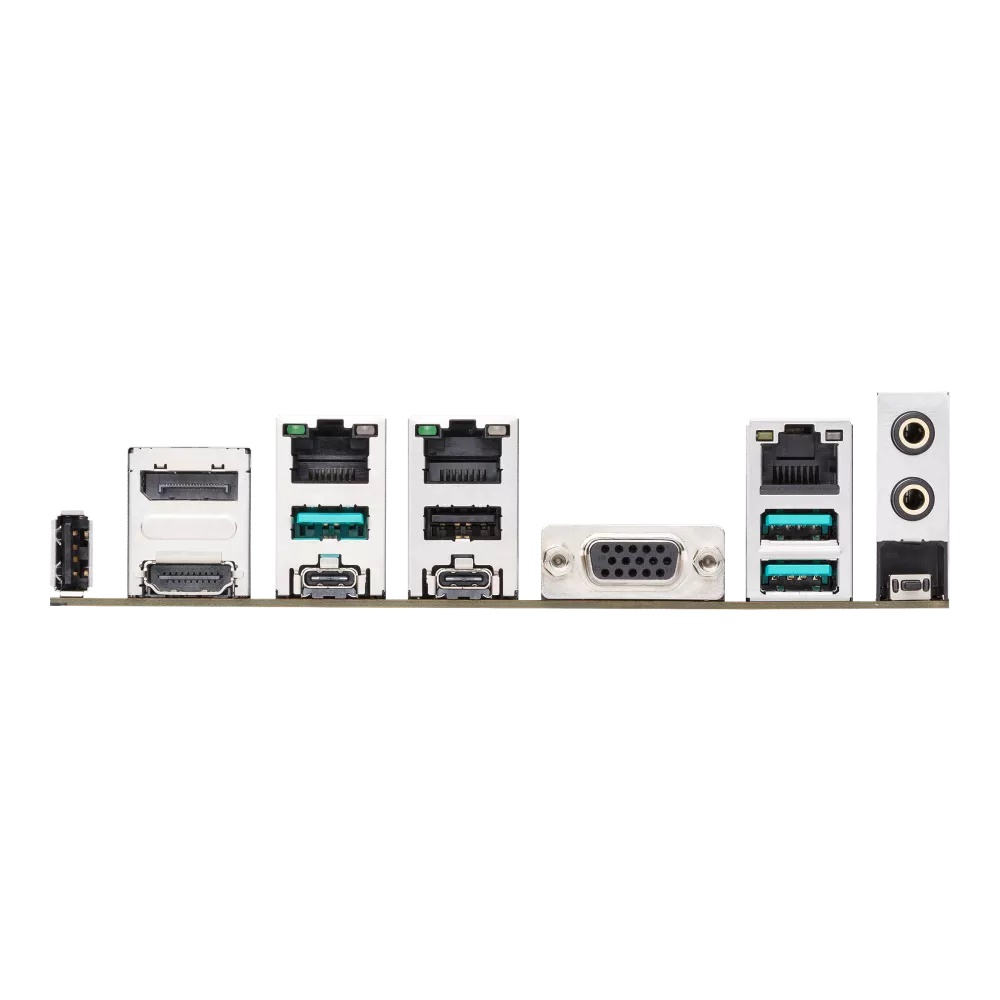

Back Panel I/O Ports 3x USB 10Gbps port(s) (3 x Type-A), 1x USB 10Gbps port(s) (USB Type-C®), 1x USB 10Gbps port(s) (USB Type-C®) supports DisplayPort video output, 2x USB 2.0 port(s) (2 x Type-A), 1x DisplayPort, 1x VGA port, 1x HDMI™ port, 1x Realtek 10Gb Ethernet port, 1x Intel® 2.5Gb Ethernet ports, 1x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600), 2x Audio jacks
BIOS 512 Mb Flash ROM, UEFI AMI BIOS(text-based)
Accessories 2x SATA 6Gb/s cables, 1x I/O shield, 1x Q-connector, 1x M.2 rubber package(s), 1x ACC Express activation key card, 1x Quick start guide
Form Factor micro-ATX Form Factor (24.4 cm x 24.4 cm)
IPMI Yes - BMC AST2600
