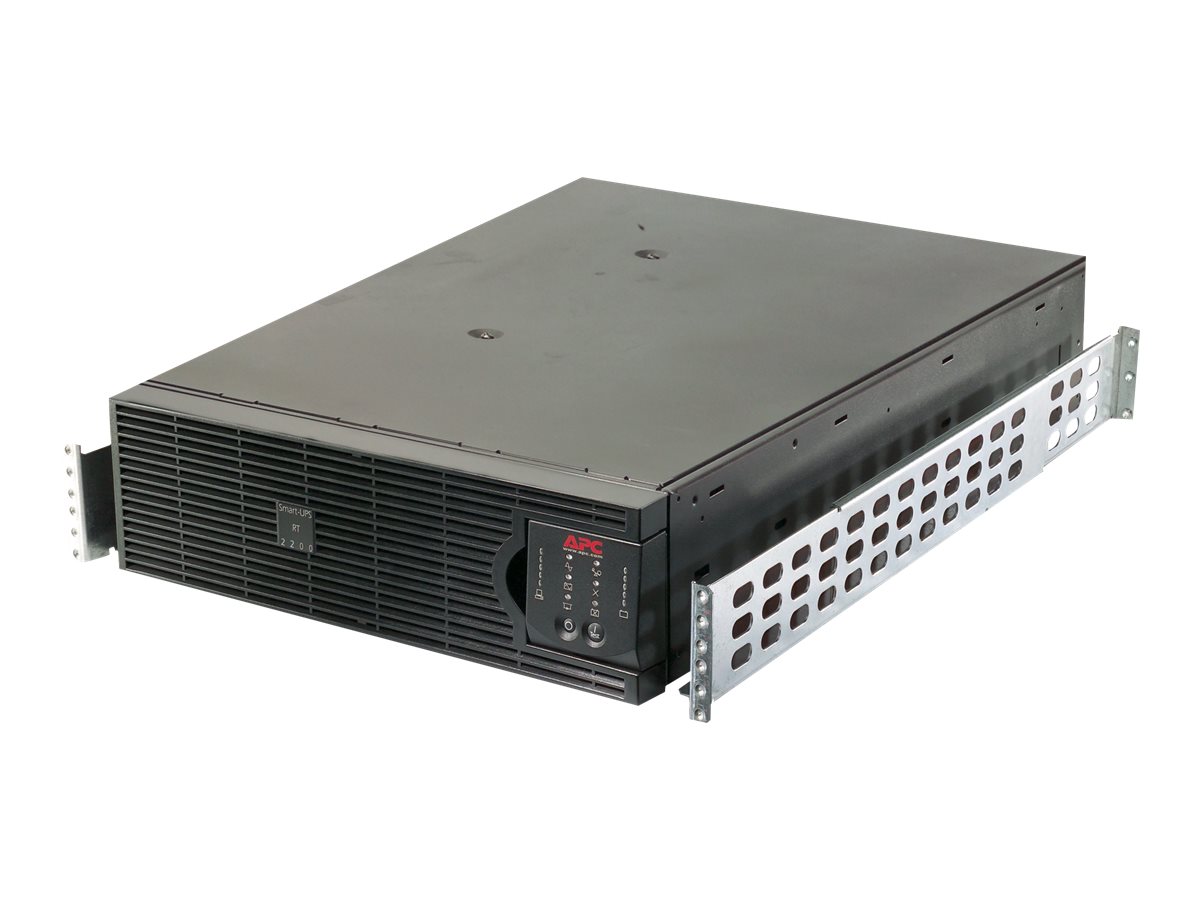

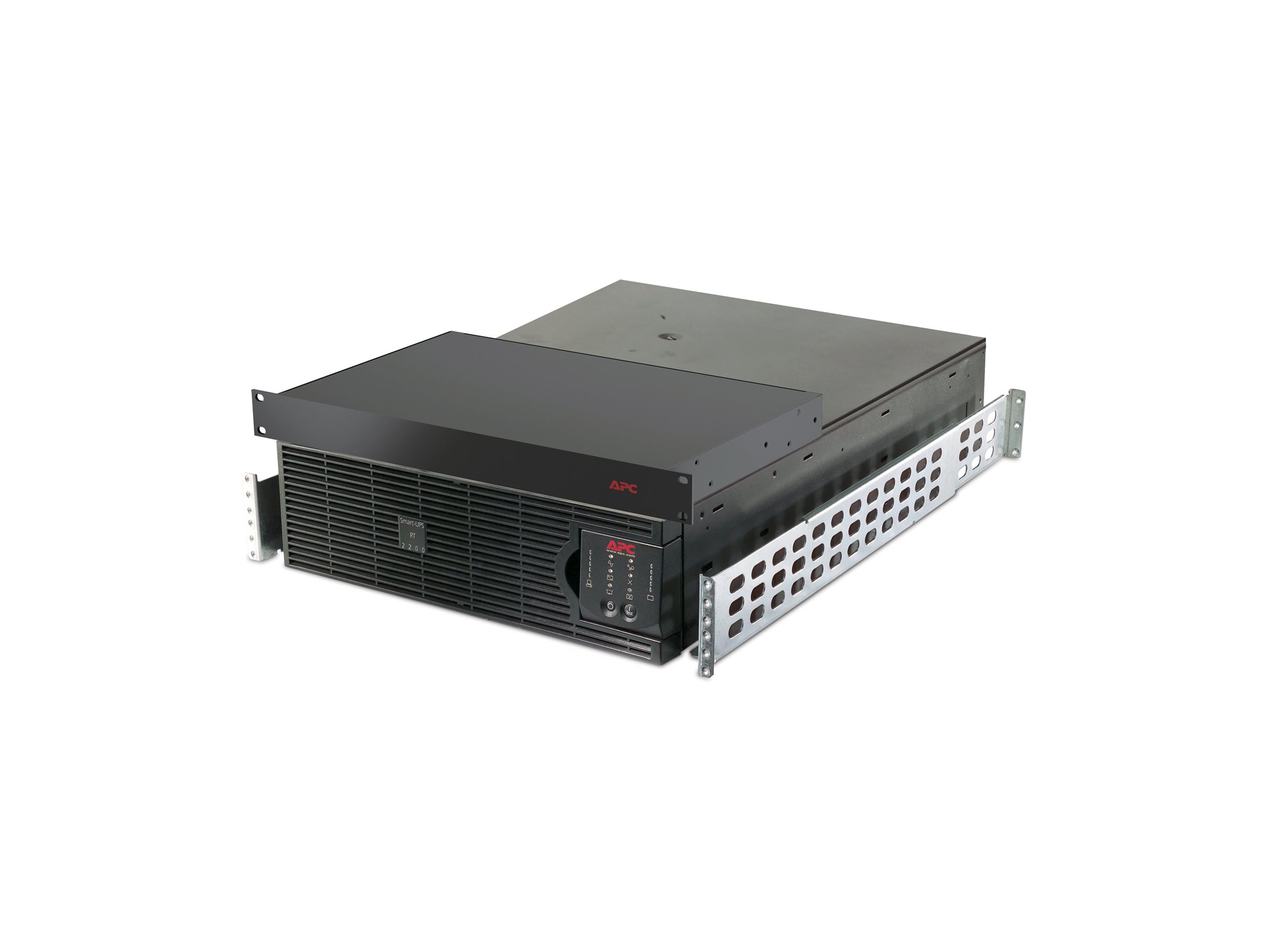

APC Smart-UPS RT 2200 Marine UPS 1.54kW 2200VA
APC Smart-UPS RT 2200 Marine - UPS - AC 220/230/240 V - 1.54 kW - 2200 VA - RS-232 - output-stikforbindelser: 10 - 3U - sort
APC Smart-UPS RT er en online UPS med en nominel effekt på 2200 VA og en udgangseffekt på 1540 watt. Den omfatter flere udgangstilslutninger som IEC 60230 C19, IEC 60230 C13 og IEC Jumpers. Denne model indeholder et blysyrebatteri og er velegnet til marineapplikationer. UPS'en har online-teknologi med dobbeltkonvertering og sinusbølgeudgang.
-
Product no 988257048
Model SURTD2200XLIM
Brand APC
EAN 0731304286929
Weight 63.64 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | APC Smart-UPS RT 2200 Marine - UPS - 1.54 kW - 2200 VA |
| Enhedstype | UPS - ekstern |
| Rackstørrelse | 3U |
| Vægt | 54.6 kg |
| Indgangspænding | AC 220/230/240 V |
| Udgangspænding | AC 220/230/240 V ± 3% |
| Strømkapacitet | 1.54 kW / 2200 VA |

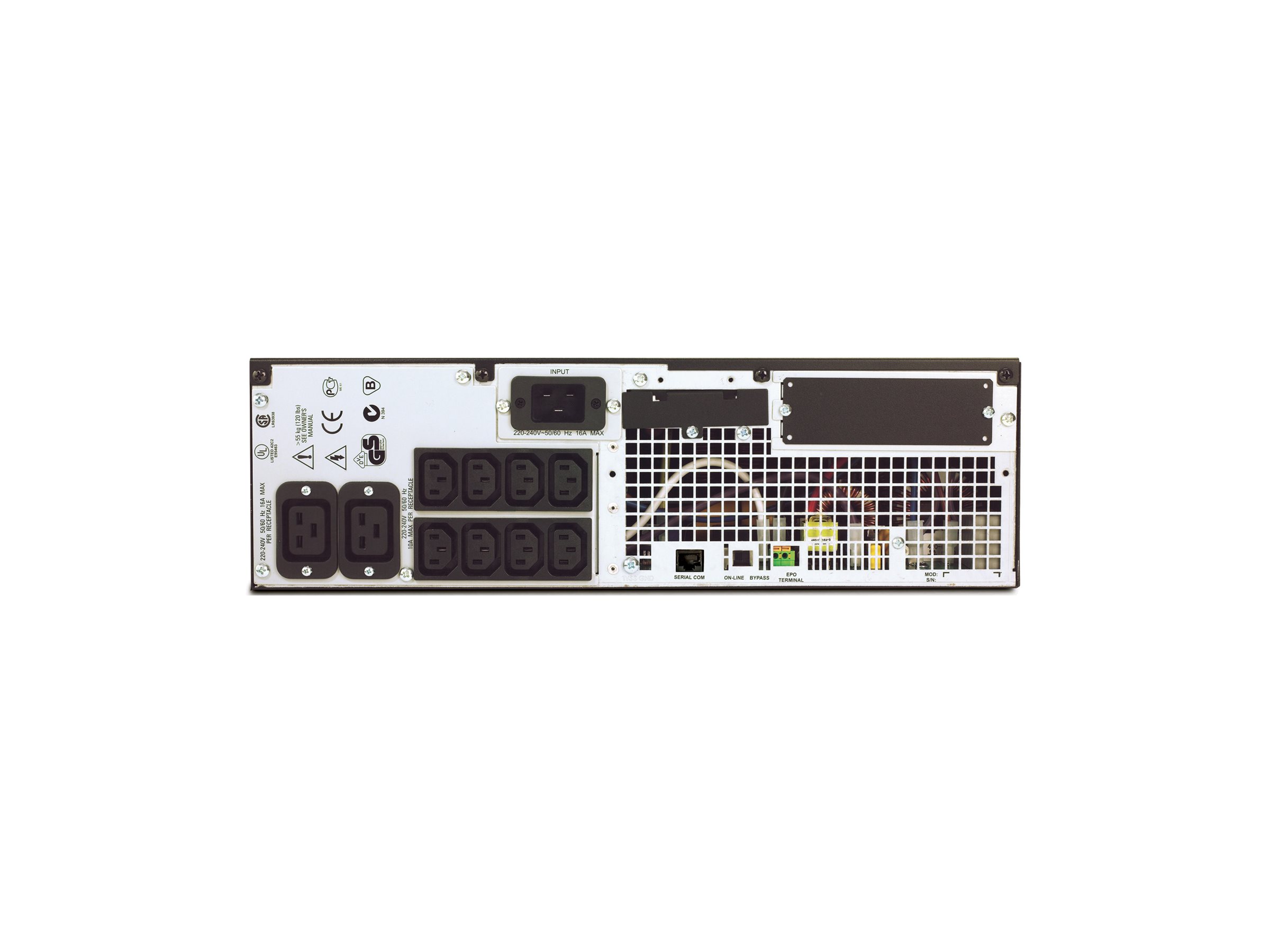

| Output-stikforbindelser | 8 x power IEC 60320 C13<br>2 x strøm IEC 60320 C19 |
| Batteri | Blysyre |
| Batteri formfaktor | Indstiksmodul |
| Antal batterier | 2 |
| Driftstid (op til) | 21 min ved fuld belastning |
| Netværk | RS-232 |
| Farve | Sort |
| Dimensioner (B x D x H) | 13 cm x 66 cm x 43.2 cm |
| Producentgaranti | 2 års garanti |
| General | |
|---|---|
| Battery Enclosure Type | Plug-in module |
| Color | Black |
| Device Type | UPS - external |
| Height (Rack Units) | 3U |
| Power Device | |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Voltage | AC 220/230/240 V |
| Input Voltage Range | AC 180 - 280 V |
| Output Voltage | AC 220/230/240 V ± 3% - 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 1.54 kW / 2200 VA |
| Power Output Connectors Details | 8 x power IEC 60320 C13 | 2 x power IEC 60320 C19 |
| Surge Energy Rating | 480 Joules |
| Surge Suppression | Yes |
| UPS Technology | On-line |
| Battery | |
| Quantity | 2 |
| Recharge Time | 2.5 hours |
| Run Time (Up To) | 21 min at full load | 48 min at half load |
| Technology | Lead acid |
| Networking | |
| Remote Management Interface | RS-232 |
| Expansion / Connectivity | |
| Expansion Slots | 1 SmartSlot |
| Interfaces | 1 x management (RS-232) - RJ-45 | 1 x EPO (emergency power off) |
| Miscellaneous | |
| Cables Included | Serial cable - external |
| Compliant Standards | EN 60950, EN 61000-3-2, UL 1449, EN55022 Class A, EN 50091-2, RoHS, EN 50091-1, REACH |
| Features | Audible alarm, emergency power off, internal bypass, LED indicators |
| Rack Mounting Kit | Included |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 55 dBA |
| Dimensions & Weight | |
| Depth | 66 cm |
| Height | 43.2 cm |
| Weight | 54.6 kg |
| Width | 13 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 98 cm |
| Shipping Height | 34.7 cm |
| Shipping Weight | 63.6 kg |
| Shipping Width | 60.3 cm |
