Produktbeskrivelse
|
Akyga Basic Series AK-B1-500 - strømforsyning - 500 watt
|
|
Enhedstype
|
Strømforsyning - Power Factor Correction (PFC) - intern
|
|
Specifikationsoverensstemmelse
|
ATX12V 2.31
|
|
Vægt
|
1.03 kg
|
|
Indgangspænding
|
AC 230 V
|
|
Udgangspænding
|
+3.3, +5, ±12 V
|
|
Strømkapacitet
|
500 watt
|
|
Output Current
|
+3.3V - 30 A<br>+5V - 34 A<br>+12V - 22 A<br>-12V - 0.5 A<br>+5VSB - 2.5 A
|
|
Output-stikforbindelser
|
1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>1 x effekt ATX12V 4-pin stik<br>3 x 15 pin Serial ATA strøm<br>2 x 4-PIN intern strøm<br>1 x 4-PIN mini-strømforsyningsforbinder<br>1 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion
|
|
Kølesystem
|
120 mm ventilator
|
|
Farve
|
Grå
|
|
Dimensioner (B x D x H)
|
15 cm x 14 cm x 8.5 cm
|
Our pick-up point at Høgemosevænget 1, DK-8380 Trige is open for pickup Monday-Friday at 9am to 6 pm.

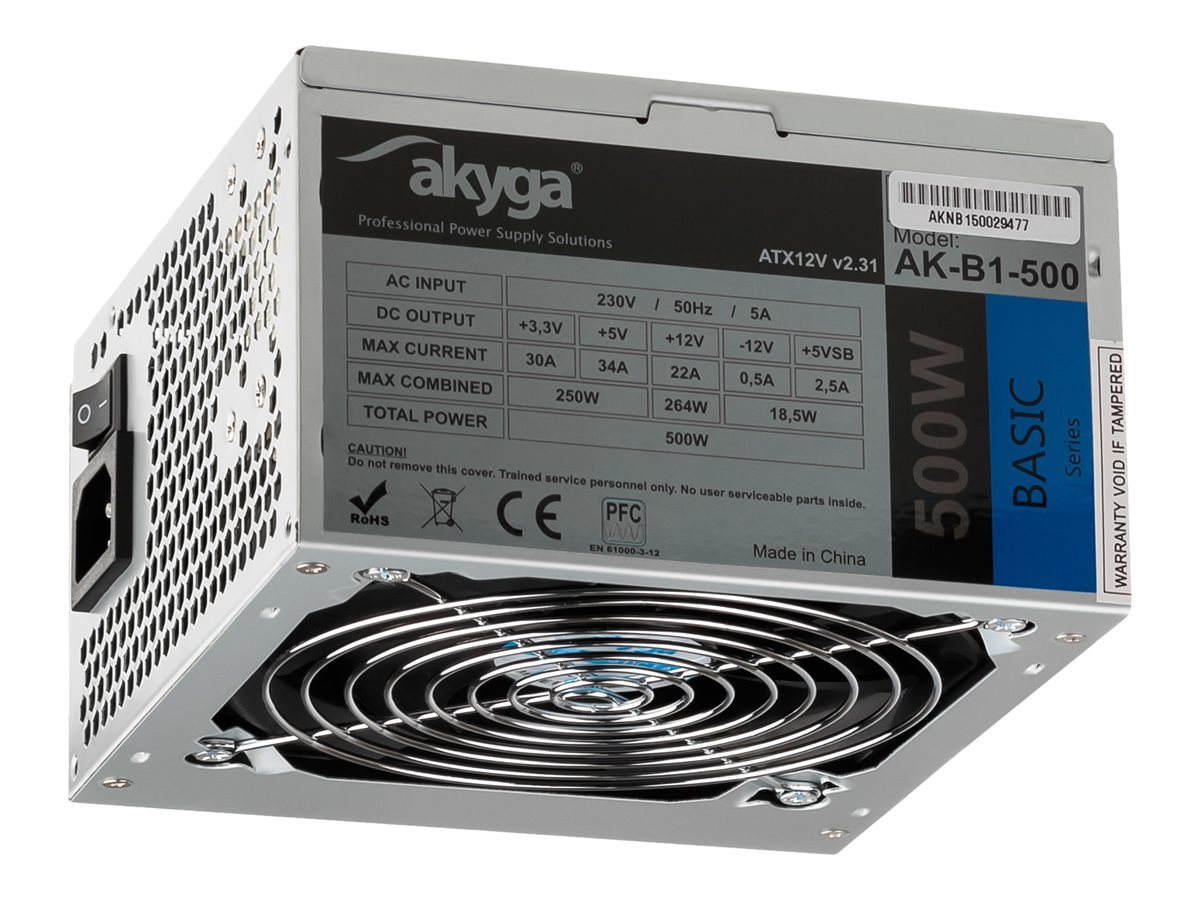

Akyga Basic Series AK-B1-500 500Watt
Akyga Basic Series AK-B1-500 - Strømforsyning (intern) - ATX12V 2.31 - AC 230 V - 500 watt - PFC - grå
DKK 199,00
DKK 159,20 excl. VAT
DKK 199,00
DKK 159,20 excl. VAT
Shipping from DKK 39,00 (PostNord Pakkeshop u/1.000,- DKK)
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Specifications
Full specifications
|
General
|
|
|---|---|
|
Color
|
Gray
|
|
Device Type
|
Power supply - Power Factor Correction (PFC) - internal
|
|
PSU Form Factor
|
ATX
|
|
Specification Compliance
|
ATX12V 2.31
|
|
Power Device
|
|
|
Efficiency
|
70%
|
|
Frequency Required
|
50 Hz
|
|
Input Voltage
|
AC 230 V
|
|
Output Current
|
+3.3V - 30 A | +5V - 34 A | +12V - 22 A | -12V - 0.5 A | +5VSB - 2.5 A
|
|
Output Voltage
|
+3.3, +5, ±12 V
|
|
Power Capacity
|
500 Watt
|
|
Power Output Connectors Details
|
1 x power 24 pin ATX with detachable 4 pin section | 1 x power 4 pin ATX12V connector | 3 x 15 pin Serial ATA power | 2 x 4 pin internal power | 1 x 4 pin mini-power connector | 1 x 8 pin PCI Express power with detachable 2 pin section
|
|
Miscellaneous
|
|
|
Compliant Standards
|
RoHS, REACH, EN 61000-3
|
|
Cooling System
|
120 mm fan
|
|
Features
|
EcoBox package, overheat protection, overcurrent protection, overvoltage protection, overpower protection, undervoltage protection, short-circuit protection, fan speed control
|
|
MTBF
|
100,000 hours
|
|
Environmental Parameters
|
|
|
Max Operating Temperature
|
50 °C
|
|
Min Operating Temperature
|
5 °C
|
|
Dimensions & Weight
|
|
|
Depth
|
14 cm
|
|
Height
|
8.5 cm
|
|
Weight
|
1.03 kg
|
|
Width
|
15 cm
|
|
Dimensions & Weight (Shipping)
|
|
|
Shipping Depth
|
22 cm
|
|
Shipping Height
|
9.5 cm
|
|
Shipping Weight
|
1.1 kg
|
|
Shipping Width
|
16 cm
|
