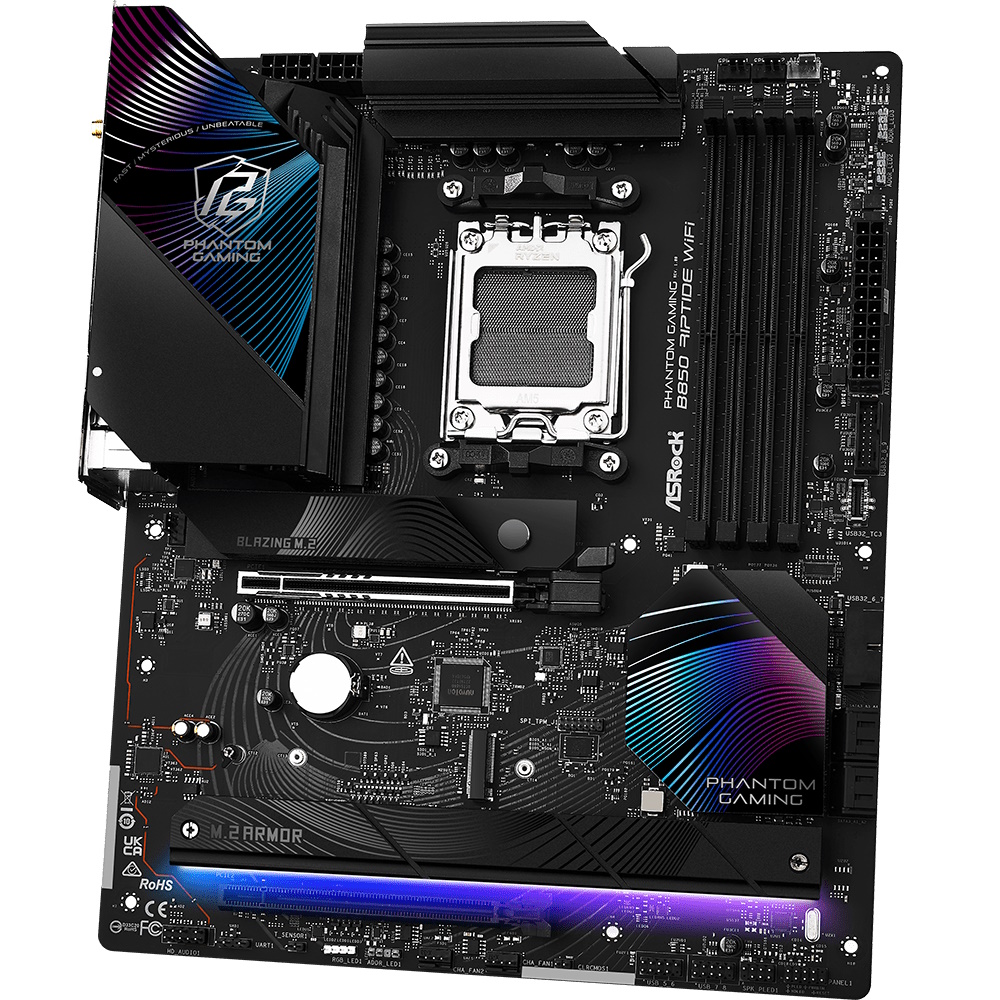

Asrock Phantom Gaming B850 Riptide ATX AM5 Socket DDR5

ASRock Phantom Gaming B850 Riptide WiFi - Bundkort - ATX - Socket AM5 - AMD B850 Chipset - USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1 - Wi-Fi 7, Bluetooth, 2.5 Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)

1 479,00 DKK 1 183,20 DKK excl. VAT
Add colli (5 qty.)

  • Product no 1002936289

    Model 90-MXBQT-A0UAYZ

    Brand
    Go to brand's website

    EAN 4711581490079

    Weight 2.09 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
CPU Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
Chipset AMD B850
Memory 4x DIMM Slots, Dual Channel DDR5 up to 8000+ 256GB
BIOS 256Mb AMI UEFI Legal BIOS with GUI support
Graphics 1x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
Audio 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
LAN Killer E3100G 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Wireless LAN 802.11be 2x2 Wi-Fi 7 Module, Bluetooth 5.4
Slots 1x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode, 1x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode, 1x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Storage 1x M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s), 1x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s), 1x M.2 Socket (M2_3, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s), 1x M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s), 4x SATA3 6.0 Gb/s Connectors
USB 2x USB 3.2 Gen2 Type-C Rear, 2x USB 3.2 Gen2 Type-A Rear, 7x USB 3.2 Gen1 Type-A (3 Rear, 4 Front), 1x USB 3.2 Gen2x2 Type-C Front, 8x USB 2.0 (4 Rear, 4 Front)

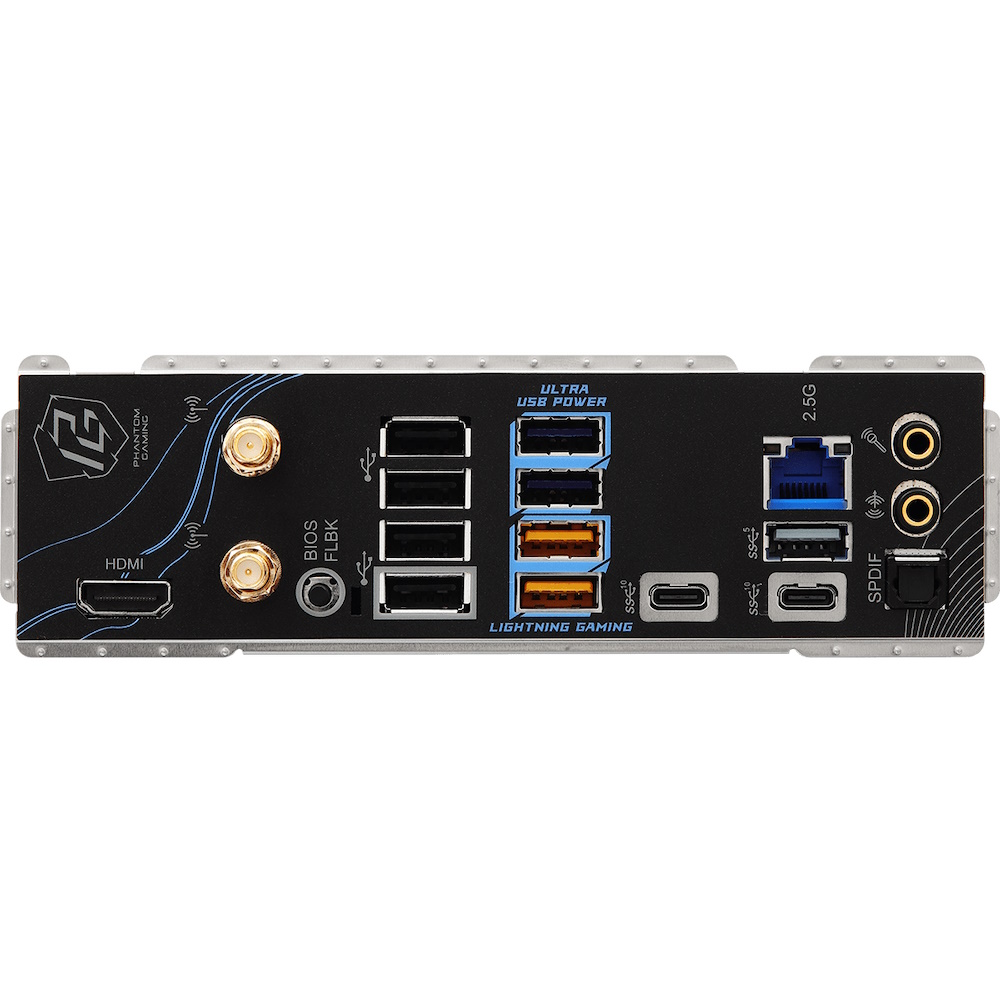

Rear ports 2x Antenna Ports, 1x HDMI Port, 1x Optical SPDIF Out Port, 1x RJ-45 LAN Port, 1x Line Out Jack (Gold Audio Jack), 1x Microphone Input Jack (Gold Audio Jack)
Accessories 2x SATA Data Cables, 2x ASRock WiFi 2.4/5/6 GHz Antennas, 1x ARGB Splitter Cable, 1x Thermistor Cable
Form Factor ATX Form Factor: 30.5 cm x 24.4 cm
Certifications ErP/EuP ready, FCC, CE
