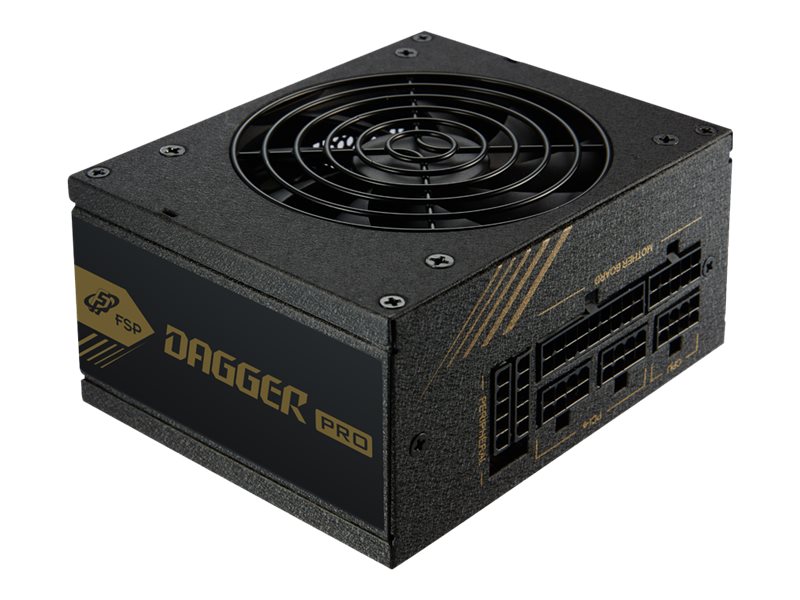

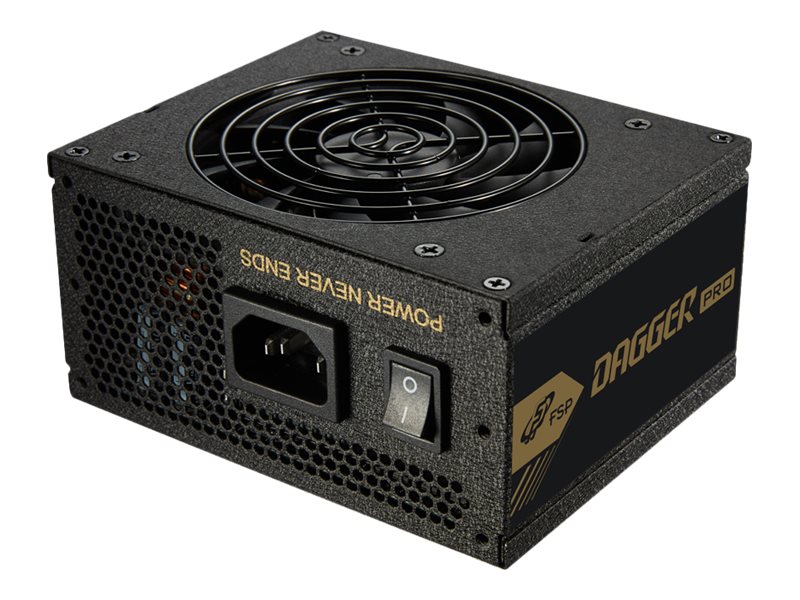

FSP Dagger Pro SDA2-650 650Watt 80 PLUS Gold

FSP Dagger Pro SDA2-650 - Strømforsyning (intern) - SFX12V 3.3 - 80 PLUS Gold - AC 100-240 V - 650 watt - aktiv PFC

DKK 769,00
DKK 615,20 excl. VAT

Add colli (10 qty.)
Shipping from DKK 39,00 (PostNord Pakkeshop u/1.000,- DKK)
Product no: 996509181
Model: PPA6504801
EAN: 4713224522055
Brand:
FSP Group
Weight: 1.75 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Produktbeskrivelse
FSP Dagger Pro SDA2-650 - strømforsyning - 650 watt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
SFX12V 3.3
80 PLUS certificering
80 PLUS Gold
Indgangspænding
AC 100-240 V
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
650 watt
Output Current
+3.3V - 20 A<br>+5V - 22 A<br>+12V - 54 A<br>-12V - 0.3 A<br>+5VSB - 2.5 A

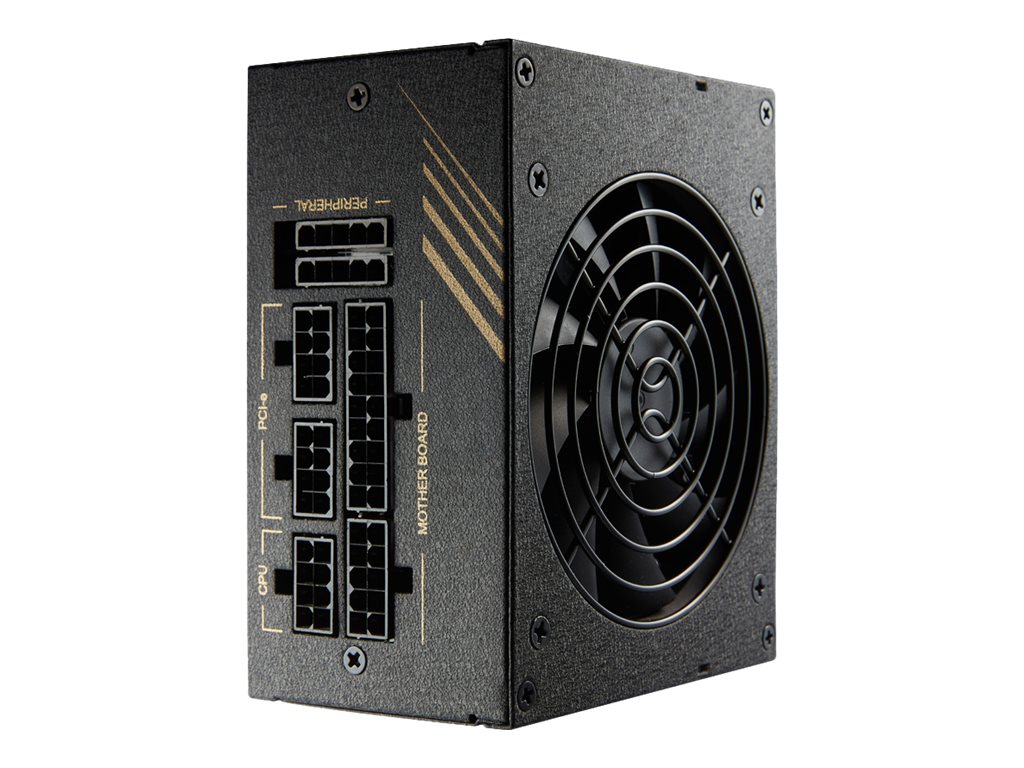

Output-stikforbindelser
1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion<br>1 x 4-PIN mini-strømforsyningsforbinder<br>5 x 15 pin Serial ATA strøm<br>2 x 4-PIN intern strøm<br>2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion<br>1 x strøm 8 pin EPS12 V

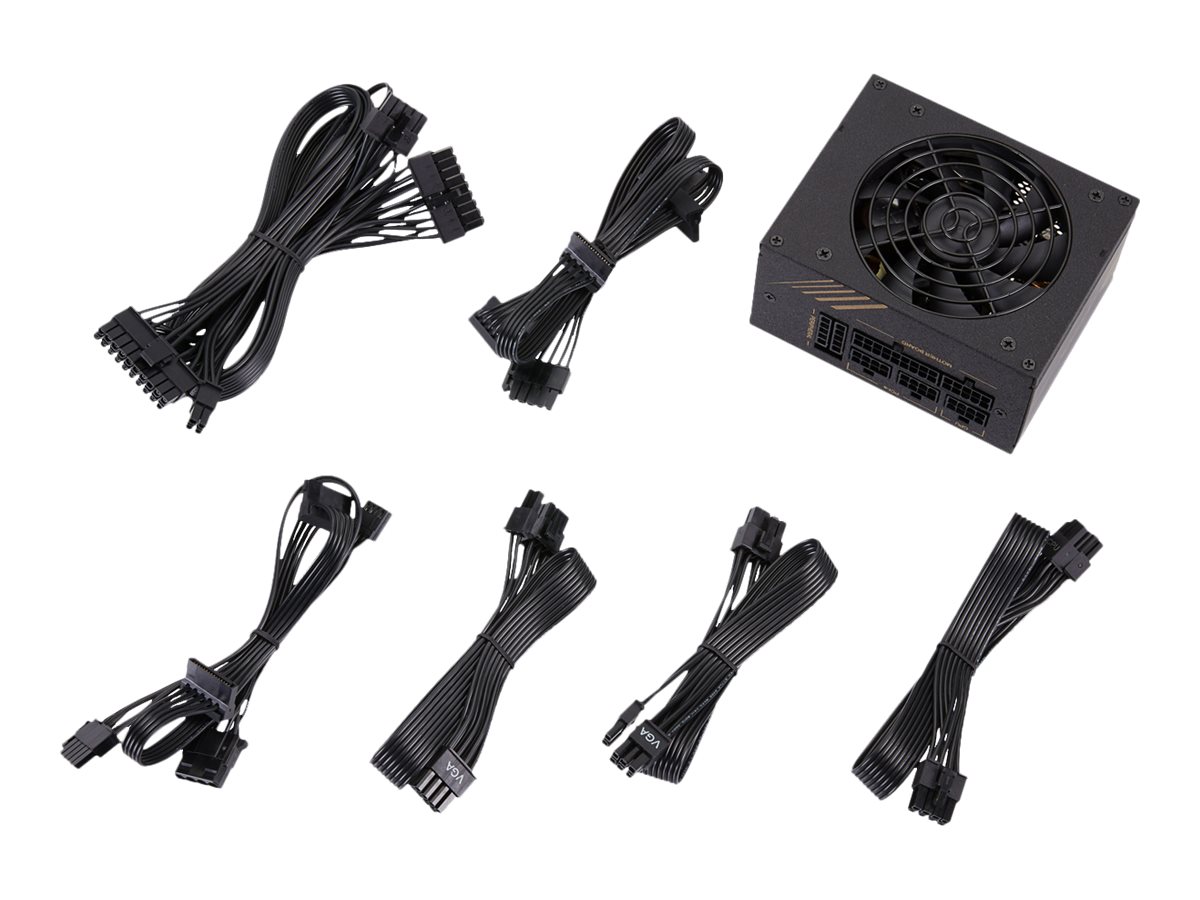

Modulær Kabel Administration
Ja
Kølesystem

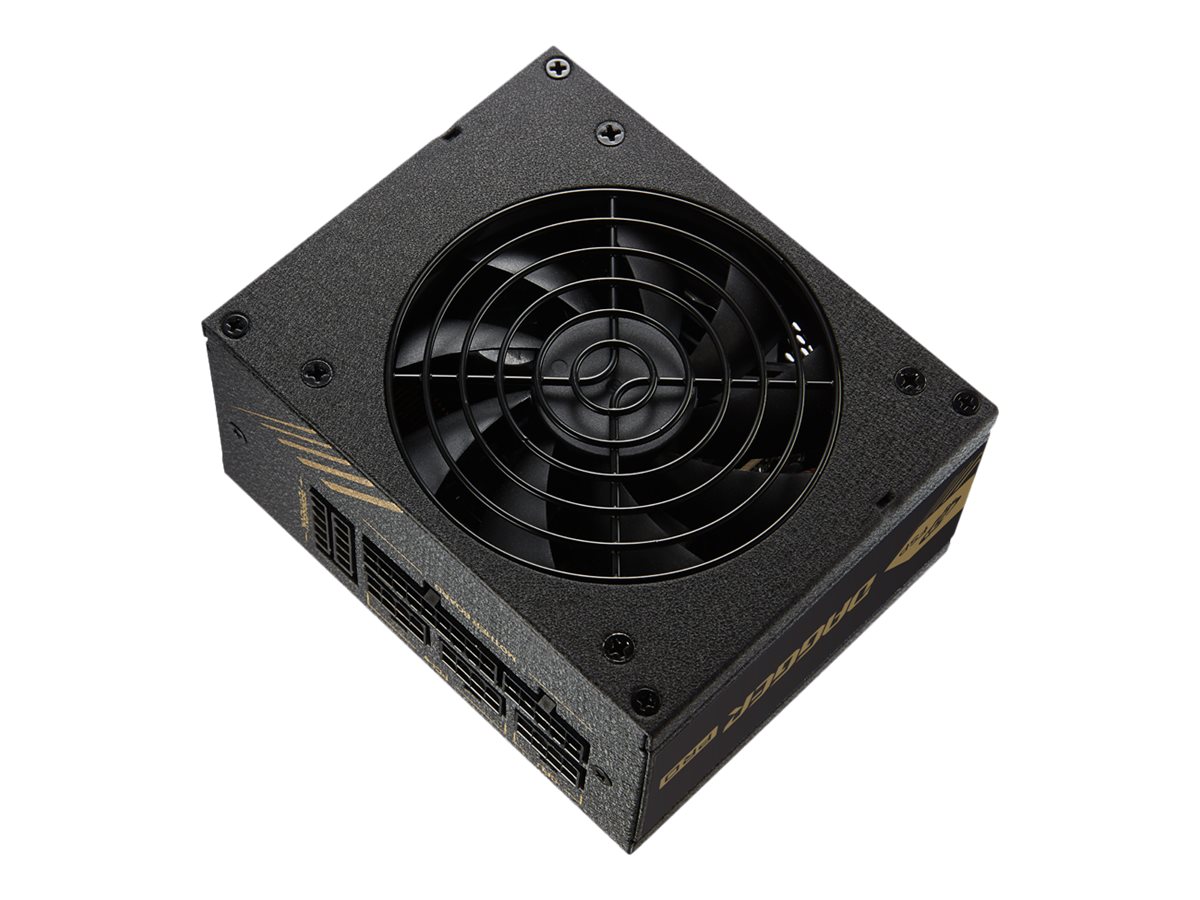

92 mm blæser
Udstyr inkluderet

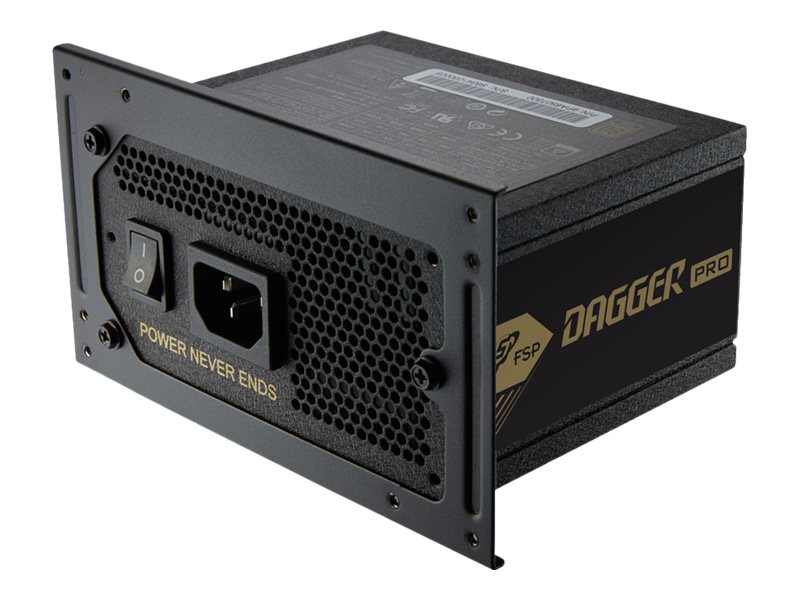

SFX to ATX bracket
Dimensioner (B x D x H)
12.5 cm x 10 cm x 6.35 cm
Specifications

Full specifications

General
Device Type
Power supply - active Power Factor Correction (PFC) - internal
PSU Form Factor
SFX
Specification Compliance
SFX12V 3.3
Power Device
80 PLUS Certification
80 PLUS Gold
Efficiency
90%
Frequency Required
50 - 60 Hz
Input Voltage
AC 100-240 V
Modular Cable Management
Yes
Output Current
+3.3V - 20 A | +5V - 22 A | +12V - 54 A | -12V - 0.3 A | +5VSB - 2.5 A
Output Voltage
+3.3, +5, ±12 V
Power Capacity
650 Watt
Power Output Connectors Details
1 x power 24 pin ATX with detachable 4 pin section | 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section | 1 x 4 pin mini-power connector | 5 x 15 pin Serial ATA power | 2 x 4 pin internal power | 2 x 8 pin PCI Express power with detachable 2
Miscellaneous
Cooling System
92 mm fan
Features
Overheat protection, overcurrent protection, overvoltage protection, overpower protection, short-circuit protection, single 12V rail, ball bearing cooling fan, MIA IC Technology, fully modular, semi-fanless
Included Accessories
SFX to ATX bracket
Dimensions & Weight
Depth
10 cm
Height
6.35 cm
Width
12.5 cm
