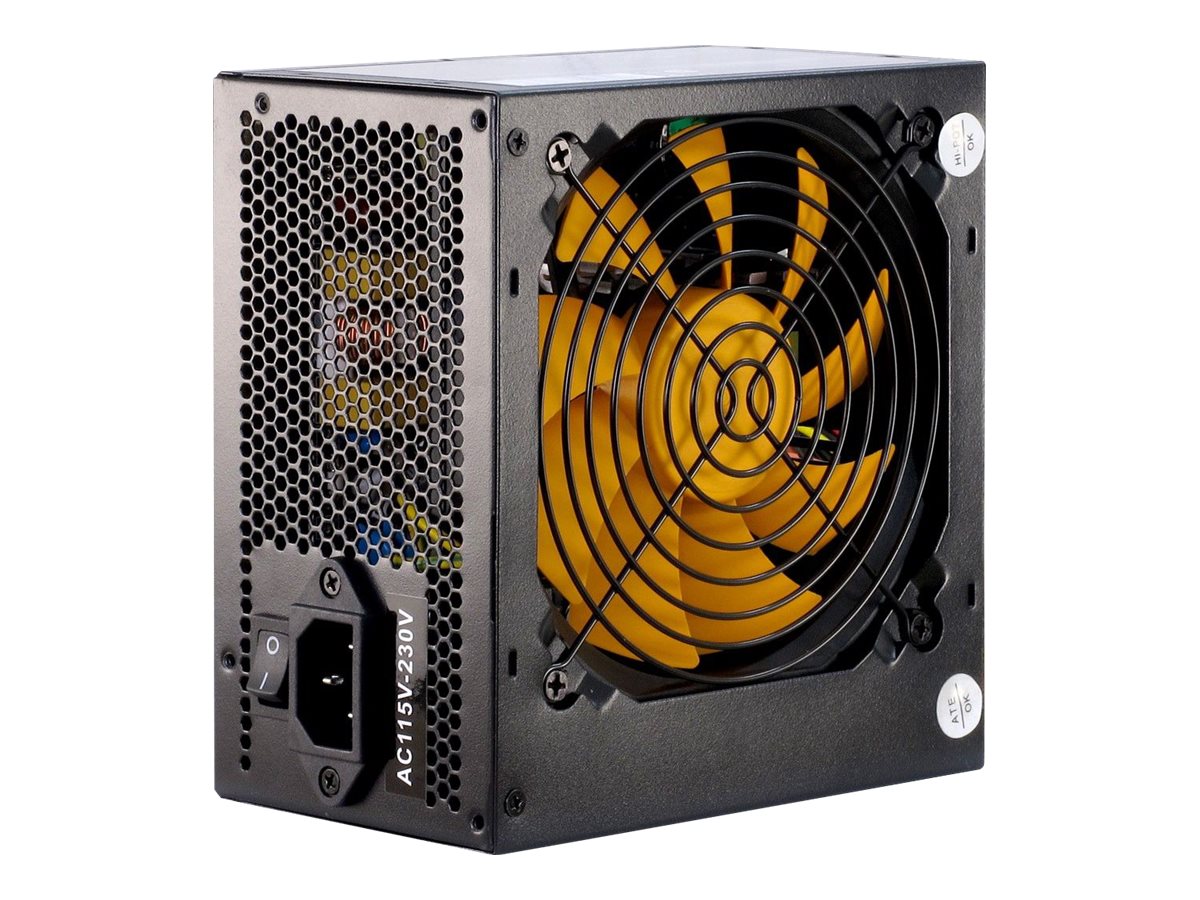

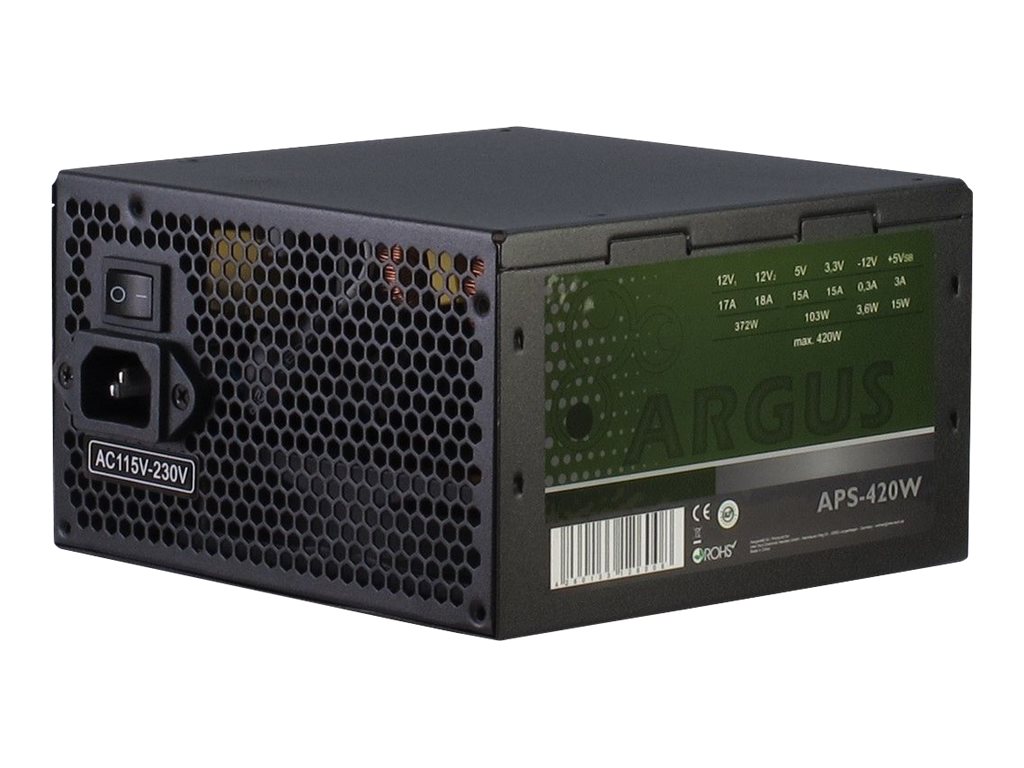

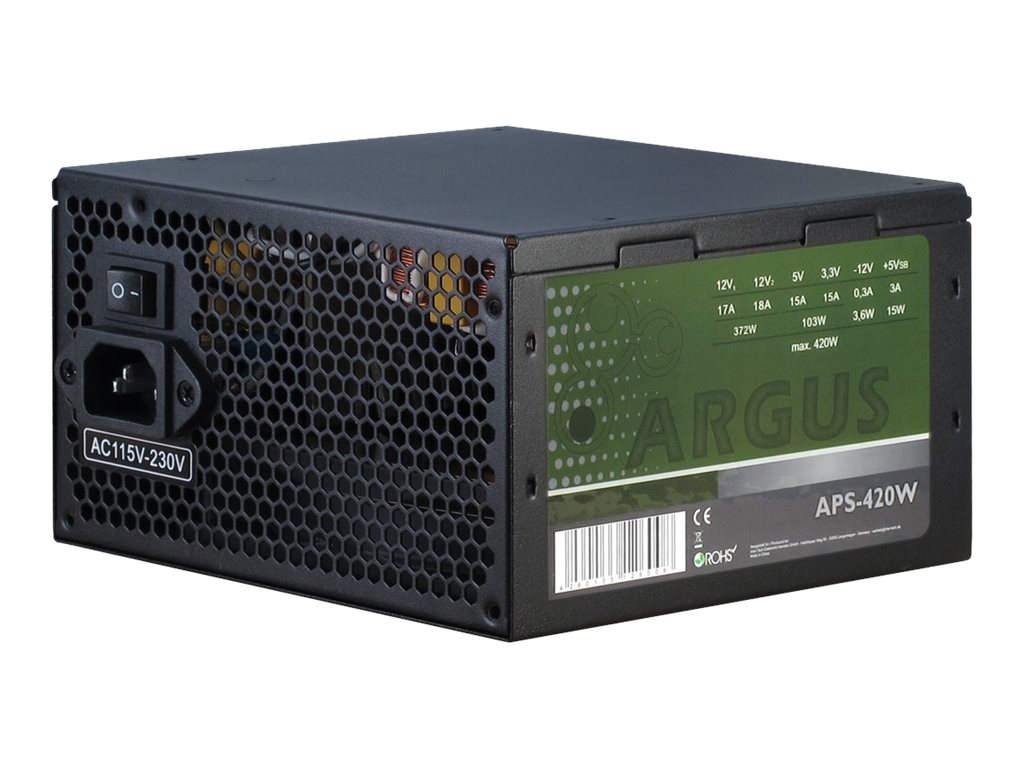

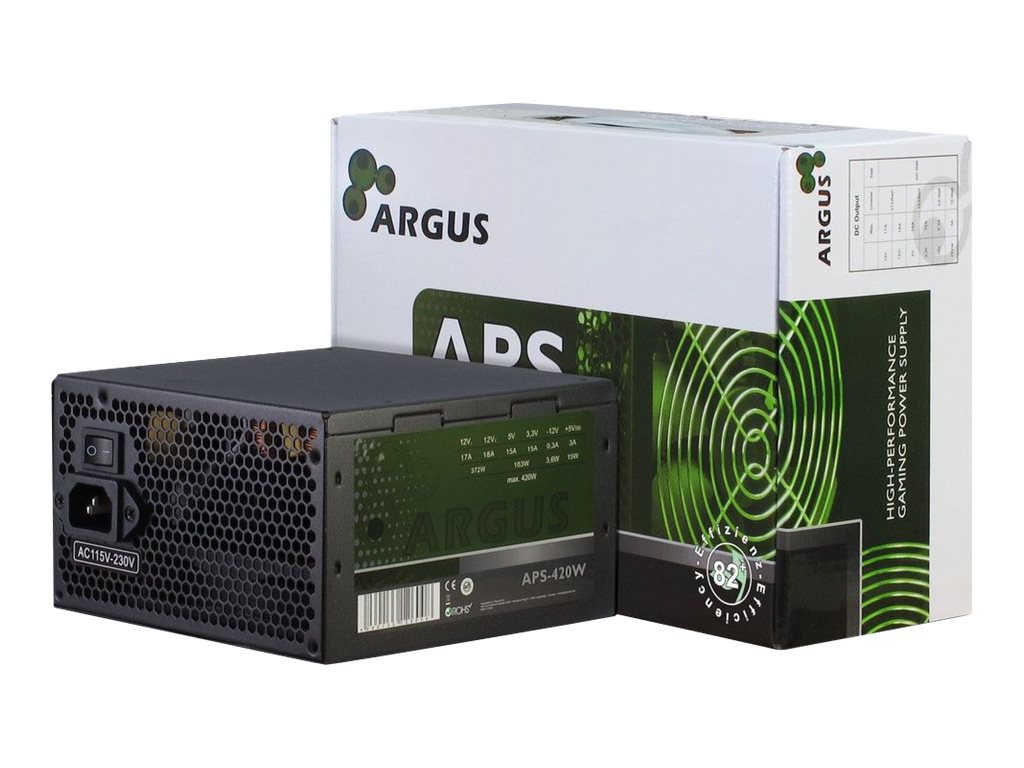

Argus APS-420W Strømforsyning 420Watt

Argus APS-420W - Strømforsyning (intern) - ATX12V 2.31 - AC 115/230 V - 420 Watt - aktiv PFC
219,00DKK175,20DKK excl. VAT
  • Product no 988794915

    Model 88882116

    Brand Inter-Tech Elektroni

    EAN 4260133126008

    Weight 1.44 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse Argus APS-420W - strømforsyning - 420 Watt
Specifikationsoverensstemmelse ATX12V 2.31
Vægt 1.15 kg
Indgangspænding AC 115/230 V
Udgangspænding +3.3, +5, ±12 V
Strømkapacitet 420 Watt
Output Current +12V1 - 17 A<br>+12V2 - 18 A<br>+3.3V - 15 A<br>+5V - 15 A<br>-12V - 0.3 A<br>+5VSB - 3 A
Output-stikforbindelser 1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>1 x strøm 8 pin +12 V med aftagelig 4 pin sektion<br>1 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion<br>3 x 15 pin Serial ATA strøm<br>2 x 4-PIN intern strøm<br>1 x 4-PIN mini-strømforsyningsforbinder
Kølesystem 120 mm ventilator
Udstyr inkluderet Kabelbånd
Dimensioner (B x D x H) 15 cm x 14 cm x 8.6 cm
Producentgaranti 2 års garanti
General
Device Type Power supply - active Power Factor Correction (PFC) - internal
PSU Form Factor ATX
Specification Compliance ATX12V 2.31
Power Device
Efficiency 82%
Frequency Required 47 - 63 Hz
Input Voltage AC 115/230 V
Output Current +12V1 - 17 A | +12V2 - 18 A | +3.3V - 15 A | +5V - 15 A | -12V - 0.3 A | +5VSB - 3 A
Output Voltage +3.3, +5, ±12 V
Power Capacity 420 Watt
Power Output Connectors Details 1 x power 24 pin ATX with detachable 4 pin section | 1 x power 8 pin +12V with detachable 4 pin section | 1 x 8 pin PCI Express power with detachable 2 pin section | 3 x 15 pin Serial ATA power | 2 x 4 pin internal power | 1 x 4 pin mini-power connec
Miscellaneous
Cooling System 120 mm fan
Features Overcurrent protection, overpower protection, undervoltage protection, short-circuit protection
Included Accessories Cable ties
Manufacturer Warranty
Service & Support Limited warranty - 2 years
Dimensions & Weight
Depth 14 cm
Height 8.6 cm
Weight 1.15 kg
Width 15 cm
Dimensions & Weight (Shipping)
Shipping Weight 1.45 kg
