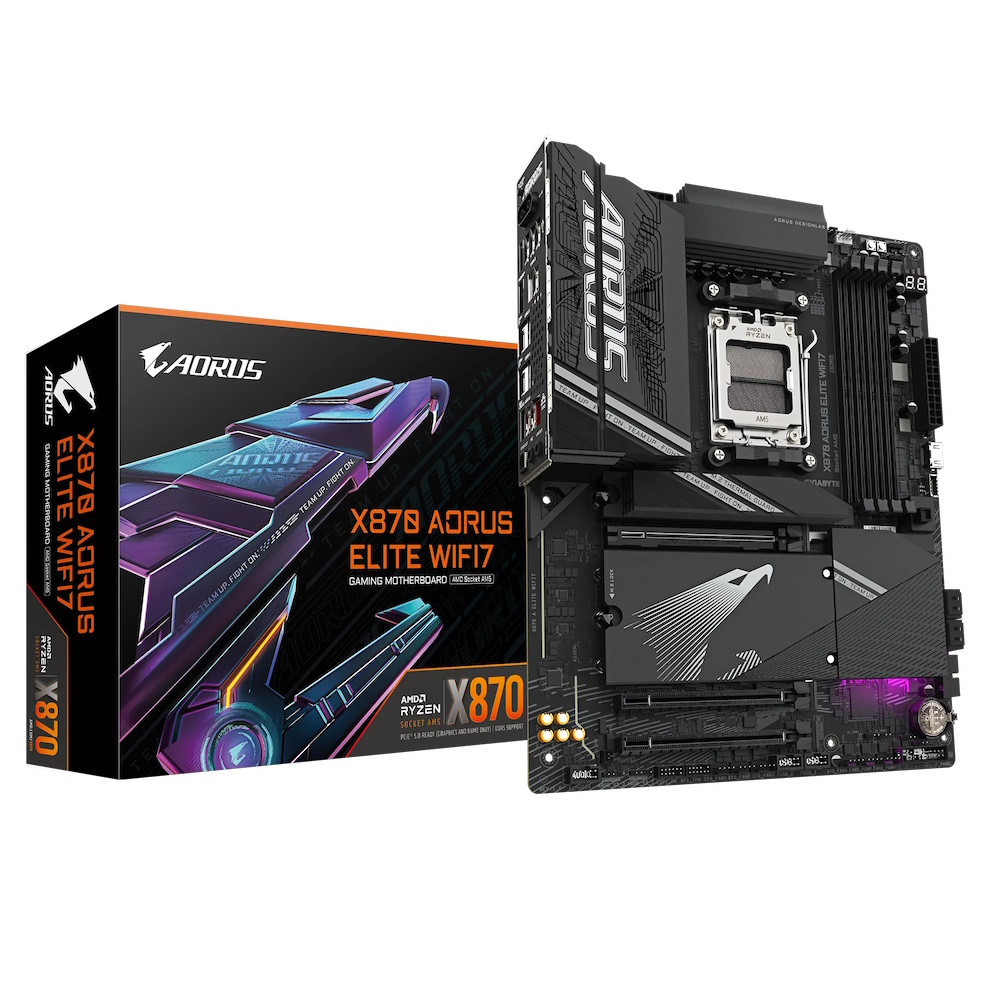

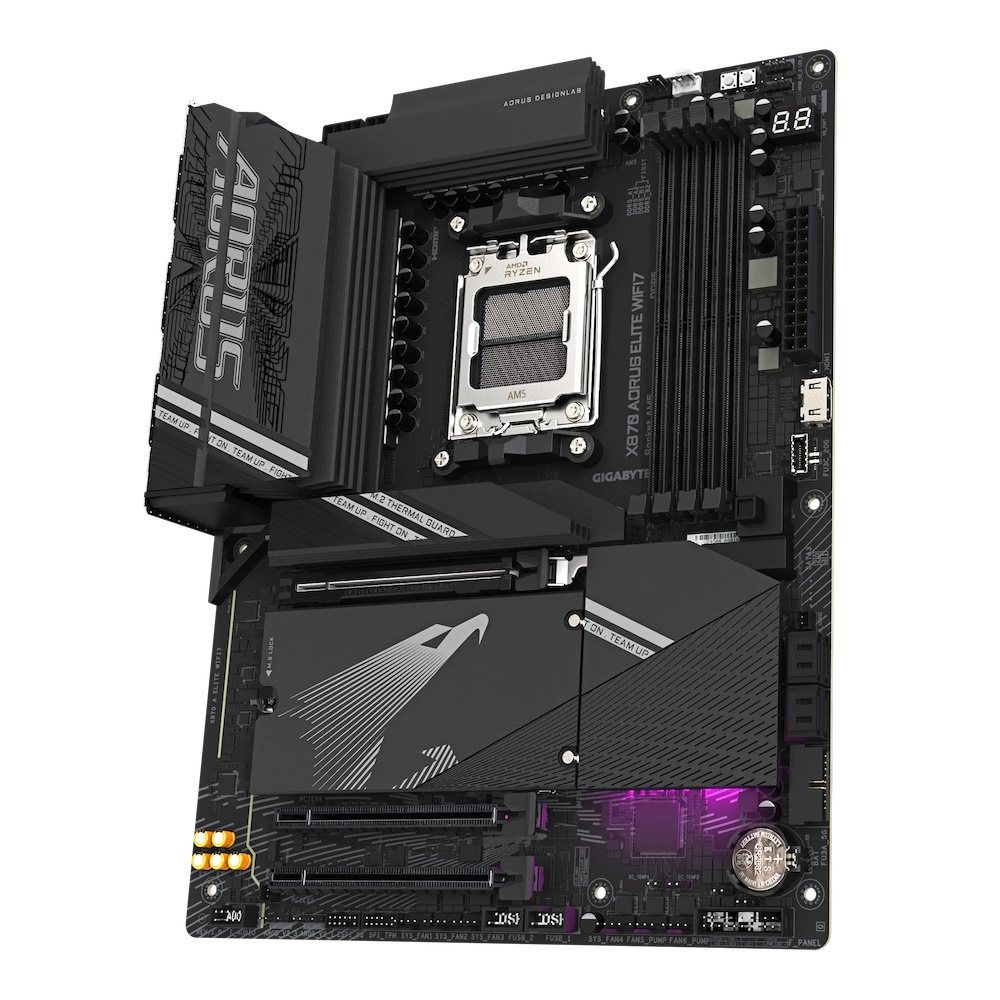

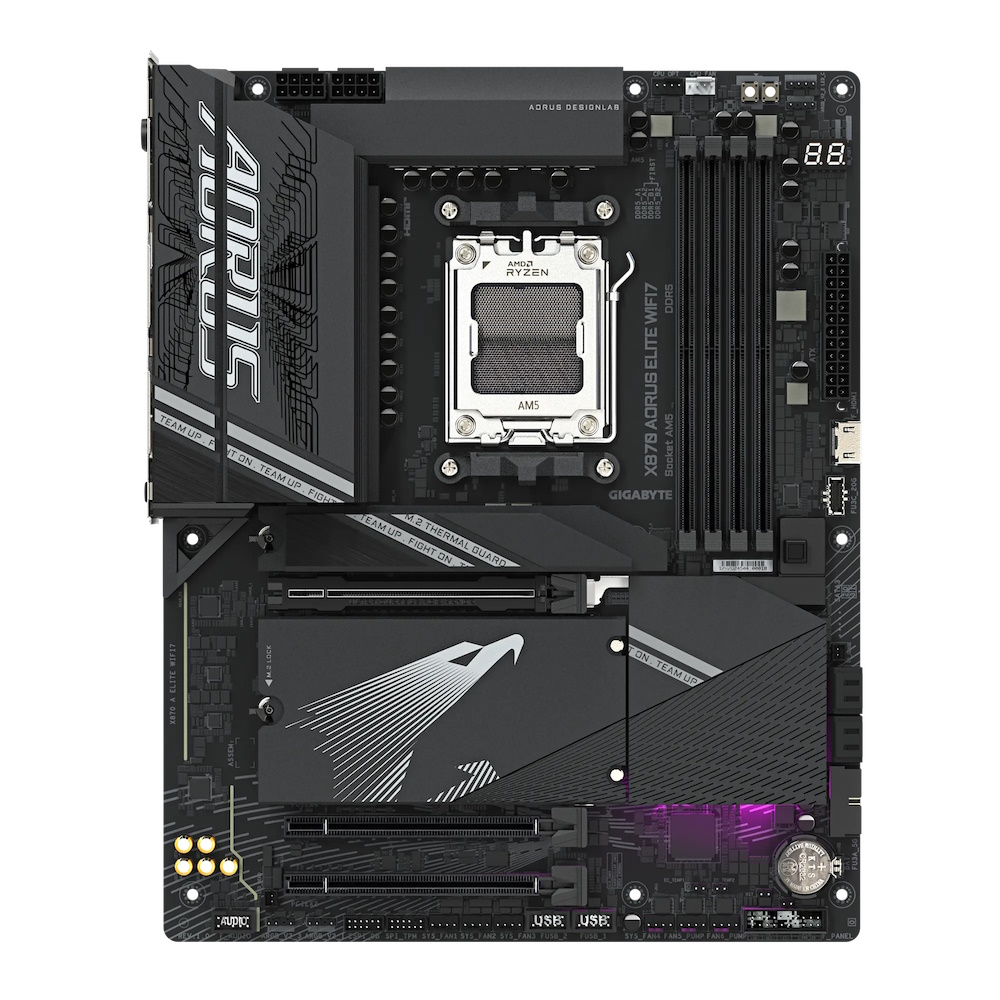

Gigabyte X870 Aorus Elite WIFI7 ATX AM5 Socket DDR5
Gigabyte X870 Aorus Elite WIFI7 Bundkort - AMD X870 - AMD AM5 socket - DDR5 RAM - ATX
1 959,00 DKK
1 567,20 DKK ekskl. moms
-
Varenummer 1002446365
Model X870 A ELITE WIFI7
Producent
Gå til producentens hjemmesideEAN 4719331864811
Vægt 2.25 kg
-
Informationer/specifikationer på siden er vejledende og kan uden varsel være ændret af producenten. Der tages forbehold for trykfejl og vejledende billeder.
| CPU | AMD Socket AM5 (Ryzen™ 9000, 8000, 7000) |
| Chipset | AMD X870 |
| Memory | 4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity), Dual channel non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 |
| Onboard Graphics | 2x USB4 Type-C (DisplayPort 1.4 alt mode), 1x HDMI 2.1, 1x front HDMI 1.4 |
| Audio | Realtek® ALC1220 CODEC |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0), Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1), Bluetooth 5.4 |
| Expansion Slots | 1x PCI Express x16 slot (5.0 x16 mode or x8 when M2B_CPU or M2C_CPU), 1x PCI Express x16 slot (4.0 x4 mode), 1x PCI Express x16 (3.0 x2 mode) |
| Storage Interface | 1x M.2 (Up to 5.0 x4/x2), 2x (Up to 5.0 x4/x2), 1x M.2 (PCIe 4.0 x4/x2) |

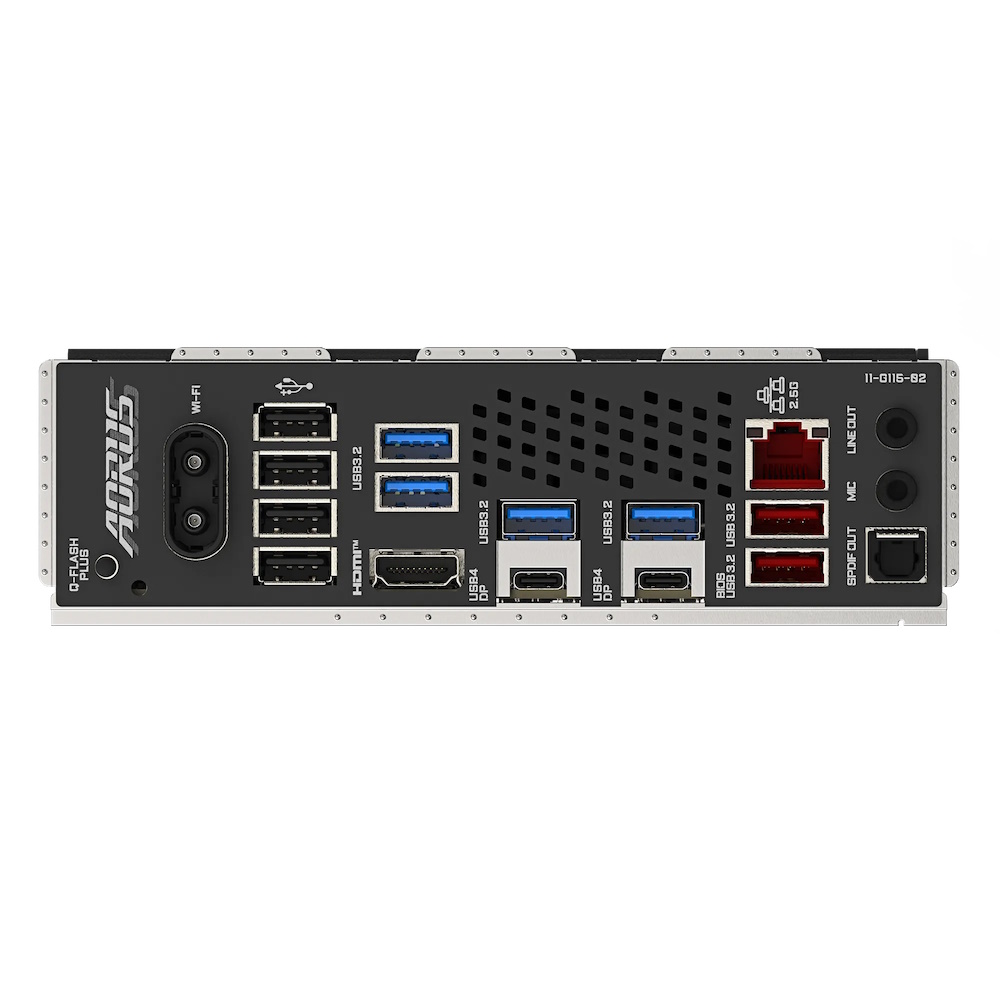

| Back panel connectors | 2x USB4 Type-C (DP alt mode support), 4x USB 3.2 Gen 1, 4x USB 2.0/1.1, 2x USB 3.2 Gen 2 Type-A (red), 1x HDMI port, 2x antenna connectors (2T2R), 1x RJ-45 port, 1x optical S/PDIF, 2x audio jacks |
| USB internal | 1x USB Type-C (3.2 Gen 2x2), 2x USB 3.2 Gen 1, 4x USB 2.0/1.1 |
| I/O Controller | iTE® I/O Controller Chip |
| BIOS | 256 Mbit flash AMI UEFI BIOS |
| Operating System Support | Windows 11 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Generelt | |
|---|---|
| Chipsættype | AMD X870 |
| Kompatible processorer | Ryzen (understøtter Ryzen 7000/8000/9000 Serien) |
| Max antal processorer | 1 |
| Processor-socket | Socket AM5 |
| Produkttype | Bundkort - ATX |
| Understøttet RAM | |
| Bus Clock | 2400 MHz, 2200 MHz, 2600 MHz, 2800 MHz (O.C.), 3000 MHz (O.C.), 3100 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3800 MHz (O.C.), 4000 MHz (O.C.), 3900 MHz (O.C.) |
| Egenskaber | Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP), AMD EXPO-teknologi |
| Maks. størrelse | 256 GB |
| Registreret eller buffer | Ikke bufferet |
| Teknologi | DDR5 |
| Understøttet RAM-integritetskon | Ikke-ECC |
| Audio | |
| Audio codec | Realtek ALC1220 |
| Overensstemmelsesstandarder | High Definition Audio |
| Type | HD Audio (8-kanaler) |
| LAN | |
| Netværks interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.4 |
| Ekspansion / Konnektivitet | |
| Ekspansionsåbninger | 1 x CPU | 4 x DIMM 288-pins | 1 x PCIe 5.0 x16 | 1 x PCIe 4.0 x16 (x4-modus) | 1 x PCIe 3.0 x16 (x2-modus) |
| Grænseflade (lagring) | SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 | PCIe 5.0 -stikforbindelser: 3 x M.2 | PCIe 4.0 -stikforbindelser: 1 x M.2 |
| Interface | LAN (2.5Gigabit Ethernet) | 1 x audio linje-ind - mini-jack | 1 x audio linje-ud - mini-jack | 1 x SPDIF-ud | 2 x antenne | 4 x USB 3.2 Gen 1 | 2 x USB 3.2 Gen 2 | 2 x USB4 | 1 x HDMI | 4 x USB 2.0 |
| Interne interfaces | 4 x USB 2.0 - intern stik | 2 x USB 3.2 Gen 1 - intern stik | 1 x USB-C 3.2 Gen 2x2 - intern stik | 1 x audio - intern stik | 1 x SPI - intern stik |
| Strømkontakter | 24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser |
| Egenskaber | |
| BIOS-egenskaber | WfM 2.0 understøttet, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
| BIOS-type (Basic Input/Output System) | AMI |
| Hardware egenskaber | EZ Plug, 2x Copper PCB, 6 Layer PCB, præmonteret I/O-skjold, RGB FUSION 2.0, 16+2+2 Phase Power Design, M.2 Thermal Guard Ext., M.2 EZ Latch klik, M.2 EZ Latch plus, PCIe EZ Latch Plus, VRM Thermal Armor Advanced, EZ Debug LED, M.2 Thermal Guard L |
| Hardwareovervågning | Systemspænding, vandkølings-flowrate, blæserfejlvarsel, blæserkontrol, støjdetektion, blæserhastighedsdetektion, temperaturdetektion |
| Diverse | |
| Bredde | 30.5 cm |
| Dybde | 24.4 cm |
| Med software | GIGABYTE Control Center, Norton Internet Security (OEM Version) |
| Overensstemmelsesstandarder | HDCP 2.3 |
| Pakkedetaljer | Boks |
